StockCode
300713
3.5kW Industrial Power Supply Module
INR240-3500K
The 3.5kW series industrial power module is an AC/DC converter featuring single-phase AC input and an adjustable DC output. Built with DSP digital control, resonant soft-switching, and active PFC (Power Factor Correction) technologies, this module is protected by multiple technical patents. The module is characterized by its high power density, high power factor, low harmonic distortion (THD), and superior efficiency. It also supports parallel redundancy, allowing multiple modules to operate together for scalable power capacity.
Product Features
High Efficiency & Energy SavingHigh Efficiency: Minimizes power loss and supports energy conservation and emission reduction, significantly lowering operational electricity costs.
High Power Density: Optimizes spatial utilization and reduces overall system footprint and costs.
01
Superior PerformanceUltra-Wide Input & Output Range: Highly adaptable to diverse voltage requirements across a multitude of industrial applications.
Wide Operating Temperature: Engineered to maintain stable performance in harsh and demanding environments.
02
Safe & ReliableAdvanced Fault Diagnostics: Comprehensive self-detection features that simplify system maintenance and troubleshooting.
Extensive External Interfaces: Supports dry-contact remote ON/OFF, IO alarm reporting, analog voltage/current regulation, and isolated auxiliary power supply.
03
Intelligent & User-FriendlyDSP Digital Control: Utilizes advanced digital signal processing for precise and flexible voltage and current adjustments.
Low Input Harmonics: Minimizes THD to reduce grid interference, ensuring superior grid compatibility and stability.
High-Voltage Surge Immunity: Features robust input protection against high-voltage surges, significantly enhancing long-term system reliability.
04
Product Parameters
INR48-3500(K)
INR100-3500(K)
INR200-3500(K)
INR240-3500(K)
INR400-3500(K)
General
Output Specifications
Input Specifications
Safety & Protection
Operating Environment
Other Parameters
General
Output Specifications
Input Specifications
Safety & Protection
Operating Environment
Other Parameters
General
Output Specifications
Input Specifications
Safety & Protection
Operating Environment
Other Parameters
General
Output Specifications
Input Specifications
Safety & Protection
Operating Environment
Other Parameters
General
Output Specifications
Input Specifications
Safety & Protection
Operating Environment
Other Parameters
General
| Item | Specifications | |
|---|---|---|
| General | Model | INR48-3500(K) |
| Dimensions (W×D×H) | 125mm × 319mm × 41mm | |
| Weight | 2KG |
Output Specifications
|
Item |
Specifications |
|
|
Output Specifications |
Rated Output Power |
3.5kW |
|
Rated Output Voltage |
48V |
|
|
Rated Output Current |
60A |
|
|
Output Voltage Range |
40VDC~58.5VDC |
|
|
Current Limit Range |
10% – 110% Io (Steplessly adjustable) |
|
|
Ripple & Noise (P-P) |
≤200mV |
|
|
Voltage Regulation |
≤±0.5% |
|
|
Current Regulation |
≤±1% |
|
|
Current Sharin |
≤±5% |
|
|
Efficiency |
Full load ≥92.5%; Half load ≥93% |
Input Specifications
|
Item |
Specifications |
|
|
Input Specifications |
Rated Input Voltage |
220V AC/DC; 110V AC/DC (Half load) |
|
Input Voltage Range (AC) |
176VAC~300VAC (Full load); 176VAC~85VAC (Derating); 176VDC~400VDC (Full load); 176VDC~85VDC (Derating) |
|
|
Max Input Current |
<25A |
|
|
Start-up Voltage |
≥85VAC/DC |
|
|
Frequency Range |
45Hz – 65Hz |
|
|
Power Factor (PF) |
≥0.99 |
|
|
THD |
≤5% |
|
|
Input Protection |
Built-in fuse; Surge protection circuit (SPD) |
Safety & Protection
|
Item |
Specifications |
|
|
Safety & Protection |
Short Circuit |
Automatic shutdown; self-recovery after fault removal |
|
Overcurrent |
Automatic shutdown; self-recovery after fault removal |
|
|
Overvoltage |
Latching protection with alarm requires manual reset after troubleshooting |
|
|
Overtemperature |
Auto-shutdown at protection point; auto-recovery after cooling. Linear derating starts at 71°C (heatsink); output drops to 65% at 75°C; shutdown protection at 76°C; recovery at 56°C |
Operating Environment
|
Item |
Specifications |
|
|
Operating Environment |
Operating Environment |
40°C to +50°C (Full load); +50°C to +75°C (Derating); (Specs not guaranteed below -40°C~-20°C) |
|
Storage Temp |
-40°C to +75°C |
|
|
Humidity |
0 – 95% |
|
|
Altitude |
2000m (Full load) |
Other Parameters
|
Item |
Specifications |
|
|
Reliability & Compliance |
Insulation Strength |
Input-to-Chassis: 2500V AC / 3535V DC (1 min); Input-to-Output: 3000V AC / 4242V DC (1 min) |
|
MTBF |
>120,000 hours |
|
|
Communication |
Interface |
CAN Bus |
|
ControlInterface |
Remote Control |
1 × Remote ON/OFF |
|
Status Signals |
2 × Alarm signals (Status & Fault reporting) |
|
|
Analog Control |
2 × Analog inputs (Voltage/Current adjustment) |
|
|
OTA |
Optional Over-the-Air updates supported |
Expand all parameters
General
|
Item |
Specifications |
|
|
General |
Model |
INR100-3500(K) |
|
Dimensions (W×D×H) |
125mm × 319mm × 41mm |
|
|
Weight |
2KG |
Output Specifications
|
Item |
Specifications |
|
|
Output Specifications |
Rated Output Power |
3.5kW |
|
Rated Output Voltage |
81V |
|
|
Rated Output Current |
35A |
|
|
Output Voltage Range |
30VDC – 100VDC |
|
|
Current Limit Range |
10% – 120% Io (Steplessly adjustable) |
|
|
Ripple & Noise (P-P) |
≤200mV |
|
|
Voltage Regulation |
≤±0.5% |
|
|
Current Regulation |
≤±1% |
|
|
Current Sharin |
≤±5% |
|
|
Efficiency |
Full load ≥93%; Half load ≥93.5% |
Input Specifications
|
Item |
Specifications |
|
|
Input Specifications |
Rated Input Voltage |
220V AC/DC; 110V AC/DC (Half load) |
|
Input Voltage Range (AC) |
176VAC~300VAC (Full load); 176VAC~85VAC (Derating); 176VDC~400VDC (Full load); 176VDC~85VDC (Derating) |
|
|
Max Input Current |
<25A |
|
|
Start-up Voltage |
≥85VAC/DC |
|
|
Frequency Range |
45Hz – 65Hz |
|
|
Power Factor (PF) |
≥0.99 |
|
|
THD |
≤5% |
|
|
Input Protection |
Built-in fuse; Surge protection circuit (SPD) |
Safety & Protection
|
Item |
Specifications |
|
|
Safety & Protection |
Short Circuit |
Automatic shutdown; self-recovery after fault removal |
|
Overcurrent |
Automatic shutdown; self-recovery after fault removal |
|
|
Overvoltage |
Latching protection with alarm requires manual reset after troubleshooting |
|
|
Overtemperature |
Auto-shutdown at protection point; auto-recovery after cooling. Linear derating starts at 71°C (heatsink); output drops to 65% at 75°C; shutdown protection at 76°C; recovery at 56°C |
Operating Environment
|
Item |
Specifications |
|
|
Operating Environment |
Operating Environment |
40°C to +50°C (Full load); +50°C to +75°C (Derating); (Specs not guaranteed below -20°C) |
|
Storage Temp |
-40°C to +75°C |
|
|
Humidity |
0 – 95% |
|
|
Altitude |
2000m (Full load) |
Other Parameters
|
Item |
Specifications |
|
|
Reliability & Compliance |
Insulation Strength |
|
|
MTBF |
>120,000 hours |
|
|
Communication |
Interface |
CAN Bus |
|
ControlInterface |
Remote Control |
1 × Remote ON/OFF |
|
Status Signals |
2 × Alarm signals (Status & Fault reporting) |
|
|
Analog Control |
2 × Analog inputs (Voltage/Current adjustment) |
|
|
OTA |
Optional Over-the-Air updates supported |
Expand all parameters
General
|
Item |
Specifications |
|
|
General |
Model |
INR200-3500(K) |
|
Dimensions (W×D×H) |
125mm × 319mm × 41mm |
|
|
Weight |
2KG |
Output Specifications
|
Item |
Specifications |
|
|
Output Specifications |
Rated Output Power |
3.5kW |
|
Rated Output Voltage |
189V |
|
|
Rated Output Current |
18A |
|
|
Output Voltage Range |
100VDC – 200VDC |
|
|
Current Limit Range |
10% – 110% Io (Steplessly adjustable) |
|
|
Ripple & Noise (P-P) |
≤±0.5% |
|
|
Voltage Regulation |
≤±0.5% |
|
|
Current Regulation |
≤±1% |
|
|
Current Sharin |
≤±5% |
|
|
Efficiency |
Full load ≥93%; Half load ≥93.5% |
Input Specifications
|
Item |
Specifications |
|
|
Input Specifications |
Rated Input Voltage |
220V AC/DC; 110V AC/DC (Half load) |
|
Input Voltage Range (AC) |
176VAC~300VAC (Full load); 176VAC~85VAC (Derating); 176VDC~400VDC (Full load); 176VDC~85VDC (Derating) |
|
|
Max Input Current |
<25A |
|
|
Start-up Voltage |
≥85VAC/DC |
|
|
Frequency Range |
45Hz – 65Hz |
|
|
Power Factor (PF) |
≥0.99 |
|
|
THD |
≤5% |
|
|
Input Protection |
Built-in fuse; Surge protection circuit (SPD) |
Safety & Protection
|
Item |
Specifications |
|
|
Safety & Protection |
Short Circuit |
Automatic shutdown; self-recovery after fault removal |
|
Overcurrent |
Automatic shutdown; self-recovery after fault removal |
|
|
Overvoltage |
Latching protection with alarm requires manual reset after troubleshooting |
|
|
Overtemperature |
Auto-shutdown at protection point; auto-recovery after cooling. Linear derating starts at 71°C (heatsink); output drops to 65% at 75°C; shutdown protection at 76°C; recovery at 56°C |
Operating Environment
|
Item |
Specifications |
|
|
Operating Environment |
Operating Environment |
40°C to +50°C (Full load); +50°C to +75°C (Derating); (Specs not guaranteed below -20°C) |
|
Storage Temp |
-40°C to +75°C |
|
|
Humidity |
0 – 95% |
|
|
Altitude |
2000m (Full load) |
Other Parameters
|
Item |
Specifications |
|
|
Reliability & Compliance |
Insulation Strength |
|
|
MTBF |
>120,000 hours |
|
|
Communication |
Interface |
CAN Bus |
|
ControlInterface |
Remote Control |
1 × Remote ON/OFF |
|
Status Signals |
2 × Alarm signals (Status & Fault reporting) |
|
|
Analog Control |
2 × Analog inputs (Voltage/Current adjustment) |
|
|
OTA |
Optional Over-the-Air updates supported |
Expand all parameters
General
|
Item |
Specifications |
|
|
General |
Model |
INR240-3500(K) |
|
Dimensions (W×D×H) |
125mm × 319mm × 41mm |
|
|
Weight |
2KG |
Output Specifications
|
Item |
Specifications |
|
|
Output Specifications |
Rated Output Power |
3.5kW |
|
Rated Output Voltage |
270V |
|
|
Rated Output Current |
12A |
|
|
Output Voltage Range |
200V DC – 300V |
|
|
Current Limit Range |
10% – 110% Io (Steplessly adjustable) |
|
|
Ripple & Noise (P-P) |
≤±0.5% |
|
|
Voltage Regulation |
≤±0.5% |
|
|
Current Regulation |
≤±1% |
|
|
Current Sharin |
≤±5% |
|
|
Efficiency |
Full load ≥93%; Half load ≥93.5% |
Input Specifications
|
Item |
Specifications |
|
|
Input Specifications |
Rated Input Voltage |
220V AC/DC; 110V AC/DC (Half load) |
|
Input Voltage Range (AC) |
176VAC~300VAC (Full load); 176VAC~85VAC (Derating); 176VDC~400VDC (Full load); 176VDC~85VDC (Derating) |
|
|
Max Input Current |
<25A |
|
|
Start-up Voltage |
≥85VAC/DC |
|
|
Frequency Range |
45Hz – 65Hz |
|
|
Power Factor (PF) |
≥0.99 |
|
|
THD |
≤5% |
|
|
Input Protection |
Built-in fuse; Surge protection circuit (SPD |
Safety & Protection
|
Item |
Specifications |
|
|
Safety & Protection |
Short Circuit |
Automatic shutdown; self-recovery after fault removal |
|
Overcurrent |
Automatic shutdown; self-recovery after fault removal |
|
|
Overvoltage |
Latching protection with alarm requires manual reset after troubleshooting |
|
|
Overtemperature |
Auto-shutdown at protection point; auto-recovery after cooling. Linear derating starts at 71°C (heatsink); output drops to 65% at 75°C; shutdown protection at 76°C; recovery at 56°C |
Operating Environment
|
Item |
Specifications |
|
|
Operating Environment |
Operating Environment |
40°C to +50°C (Full load); +50°C to +75°C (Derating); (Specs not guaranteed below -20°C) |
|
Storage Temp |
-40°C to +75°C |
|
|
Humidity |
0 – 95% |
|
|
Altitude |
2000m (Full load) |
Other Parameters
|
Item |
Specifications |
|
|
Reliability & Compliance |
Insulation Strength |
|
|
MTBF |
>120,000 hours |
|
|
Communication |
Interface |
CAN Bus |
|
ControlInterface |
Remote Control |
1 × Remote ON/OFF |
|
Status Signals |
2 × Alarm signals (Status & Fault reporting) |
|
|
Analog Control |
2 × Analog inputs (Voltage/Current adjustment) |
|
|
OTA |
Optional Over-the-Air updates supported |
Expand all parameters
General
|
Item |
Specifications |
|
|
General |
Model |
INR400-3500(K) |
|
Dimensions (W×D×H) |
125mm × 319mm × 41mm |
|
|
Weight |
2KG |
Output Specifications
|
Item |
Specifications |
|
|
Output Specifications |
Rated Output Power |
3.5kW |
|
Rated Output Voltage |
378V |
|
|
Rated Output Current |
9A |
|
|
Output Voltage Range |
200V DC – 420V |
|
|
Current Limit Range |
10% – 110% Io (Steplessly adjustable) |
|
|
Ripple & Noise (P-P) |
≤200mV |
|
|
Voltage Regulation |
≤±0.5% |
|
|
Current Regulation |
≤±1% |
|
|
Current Sharin |
≤±5% |
|
|
Efficiency |
Full load ≥93%; Half load ≥93.5% |
Input Specifications
|
Item |
Specifications |
|
|
Input Specifications |
Rated Input Voltage |
220V AC/DC; 110V AC/DC (Half load) |
|
Input Voltage Range (AC) |
176VAC~300VAC (Full load); 176VAC~85VAC (Derating); 176VDC~400VDC (Full load); 176VDC~85VDC (Derating) |
|
|
Max Input Current |
<25A |
|
|
Start-up Voltage |
≥85VAC/DC |
|
|
Frequency Range |
45Hz – 65Hz |
|
|
Power Factor (PF) |
≥0.99 |
|
|
THD |
≤5% |
|
|
Input Protection |
Built-in fuse; Surge protection circuit (SPD) |
Safety & Protection
|
Item |
Specifications |
|
|
Safety & Protection |
Short Circuit |
Automatic shutdown; self-recovery after fault removal |
|
Overcurrent |
Automatic shutdown; self-recovery after fault removal |
|
|
Overvoltage |
Latching protection with alarm requires manual reset after troubleshooting |
|
|
Overtemperature |
Auto-shutdown at protection point; auto-recovery after cooling. Linear derating starts at 71°C (heatsink); output drops to 65% at 75°C; shutdown protection at 76°C; recovery at 56°C |
Operating Environment
|
Item |
Specifications |
|
|
Operating Environment |
Operating Environment |
40°C to +50°C (Full load); +50°C to +75°C (Derating); (Specs not guaranteed below -20°C) |
|
Storage Temp |
-40°C to +75°C |
|
|
Humidity |
0 – 95% |
|
|
Altitude |
2000m (Full load) |
Other Parameters
|
Item |
Specifications |
|
|
Reliability & Compliance |
Insulation Strength |
|
|
MTBF |
>120,000 hours |
|
|
Communication |
Interface |
CAN Bus |
|
ControlInterface |
Remote Control |
1 × Remote ON/OFF |
|
Status Signals |
2 × Alarm signals (Status & Fault reporting) |
|
|
Analog Control |
2 × Analog inputs (Voltage/Current adjustment) |
|
|
OTA |
Optional Over-the-Air updates supported |
Expand all parameters
Application Scenarios
Industrial Control Equipment
UV LED Exposure System

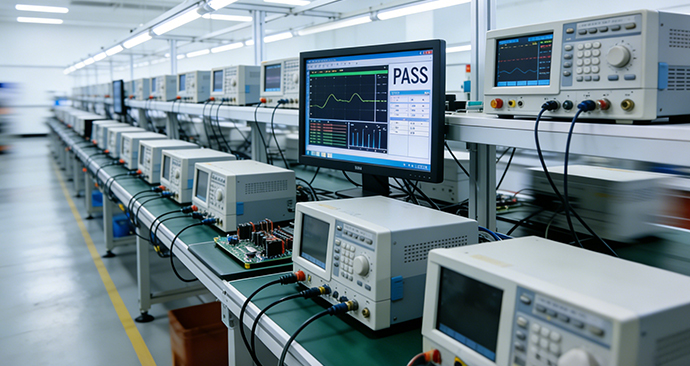

Test & Measurement Instruments
Industrial Control Equipment
