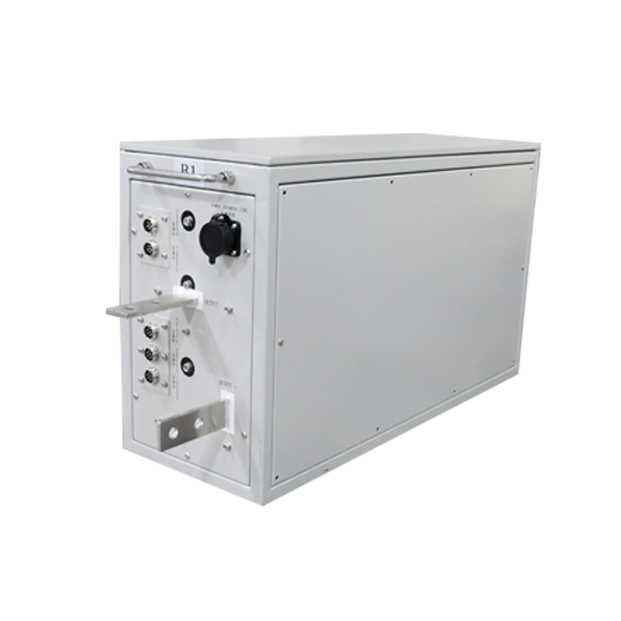

6.48kW Water-Cooled AC/DC Electroplating Power Supply Module
CGW006600A
The CGW006600A is an AC/DC power module featuring three-phase AC input and an adjustable DC output.The module incorporates DSP digital control and soft-switching technology.It offers several advantages, including high power density, high efficiency, a wide output voltage range, superior reliability, and cost-effectiveness.
Product Features
High Efficiency & Energy SavingUltra-High Efficiency: Peak efficiency ≥91%, significantly reducing energy loss.
Copper Saving: Superior plating uniformity with minimal thickness deviation, reducing the consumption of copper and other precious metals.
Power Saving: Features dynamic energy optimization technology and low standby power consumption.
01
Superior PerformanceWide Adjustable Output Voltage Range: Forward Voltage: 0V to 12V; Reverse Voltage: 0V to -36V. Linearly adjustable output, covering PCB plating scenarios such as panel plating and via filling.
Wide Adjustable Output Current Range: Forward Current: 0A to 600A; Reverse Current: 0A to 1800A. Linearly adjustable current, adaptable to diverse electroplating process requirements.
02
Safe & ReliableBrick-Structure Water Cooling: Designed for superior heat dissipation, high reliability, and extended service life.
Multiple Protections: Equipped with input UVP/OVP, output OVP, and over-temperature protection (OTP).
03
Wide AdaptabilityEnvironmental Adaptability: Wide operating temperature range (-25°C to +40°C) to meet harsh industrial requirements.
Low Input Harmonics: Ensures superior grid compatibility and stability.
04
Product Parameters
CGW006600A
General
Output Specifications
AC Input Specifications
Environmental Characteristics
Safety & Reliability
Communication & Alarm
General
|
Item |
Specifications |
|
|
General |
Model |
CGW006600A |
|
Dimensions (W×D×H) |
700mm × 250mm × 410mm |
|
|
Weight |
≤50kg |
Output Specifications
| Item | Specifications | |
|---|---|---|
| Output Specifications | Output Voltage Range | Forward: 0V~12V (Linear); Reverse: 0V~-36V (Linear) |
| Output Current Range | Forward: 0A~600A (Linear); Reverse: 0A~1800A (Linear) |
|
| Polarity Switching Time | ＜200us | |
| Efficiency | ≥ 91% (Peak); ≥ 90% (Full Load) | |
| Current Regulation Accuracy | ≤ ±1% (within 20%~100% of rated current) |
AC Input Specifications
| Item | Specifications | |
|---|---|---|
| AC Input Specifications | Rated Input Voltage | Three-phase 380V AC |
| Input Voltage Range | 323Vac～437Vac | |
| Input Current | ＜20A | |
| Power Factor (PF) | ≥ 0.98 @ 380V AC, Full Load |
Environmental Characteristics
|
Item |
Specifications |
|
|
Operating Environment |
Operating Environment |
-20℃～40℃ |
|
Storage Temp |
-40°C to +85°C |
|
|
Humidity |
0% – 95% RH (Non-condensing) |
|
|
Altitude |
≤2000m |
Safety & Reliability
| Item | Specifications | |
|---|---|---|
| Safety & Reliability | Dielectric Strength (Hipot) |
Input to Chassis: 3535VDC / 1 min Input to Output: 4242VDC / 1 min |
| MTBF | > 100,000 Hours |
Communication & Alarm
| Item | Specifications | |
|---|---|---|
|
Communication & Alarm |
Communication Interface | CAN, RS485 |
| Modules per Tank/Cell | 4 units |
Expand all parameters
Application Scenarios
PCB Electroplating
Wastewater Treatment Industry (Electrocoagulation)
PCB Electroplating
