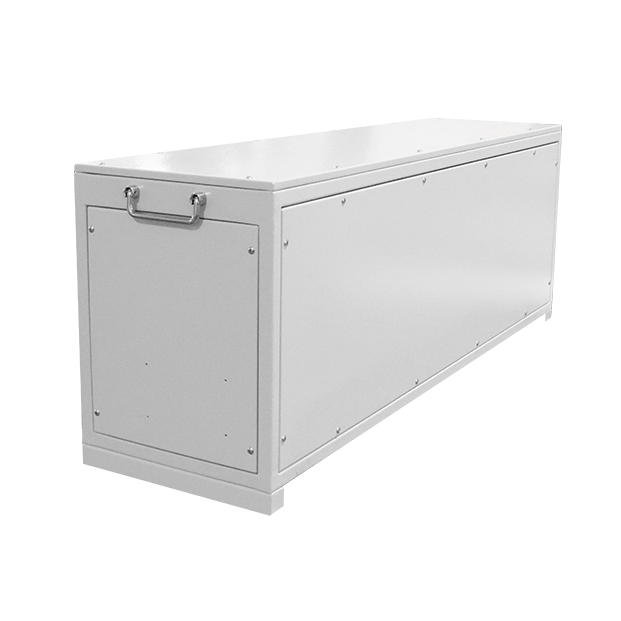

18.7kW Water-Cooled AC/DC Electroplating Power Supply Module
CGW0081200B
The CGW0081200B is an AC/DC module featuring three-phase AC input and adjustable DC voltage output. Utilizing DSP digital control and soft-switching technologies, the module offers advantages such as high power density, high efficiency, a wide output voltage range, high reliability, and cost-effectiveness.
Product Features
High Efficiency & Energy SavingUltra-High Efficiency: Peak efficiency ≥90%, significantly reducing energy loss.
Copper Saving: Superior plating uniformity with minimal thickness deviation, reducing the consumption of copper and other precious metals.
Power Saving: Features dynamic energy optimization technology and low standby power consumption.
01
Superior PerformanceWide Adjustable Output Voltage Range: Forward Voltage: 0V to 8V; Reverse Voltage: 0V to -24V. Linearly adjustable output, covering PCB plating scenarios such as panel plating and via filling.
Wide Adjustable Output Current Range: Forward Current: 0A to 1200A; Reverse Current: 0A to 3600A. Linearly adjustable current, adaptable to diverse electroplating process requirements.
02
Safe & ReliableBrick-Structure Water Cooling: Designed for superior heat dissipation, high reliability, and extended service life.
Multiple Protections: Equipped with input UVP/OVP, output OVP, and over-temperature protection (OTP).
03
Wide AdaptabilityEnvironmental Adaptability: Wide operating temperature range (-40°C to +40°C) to meet harsh industrial requirements.
Low Input Harmonics: Ensures superior grid compatibility and stability.
04
Product Parameters
CGW0081200B
General
Output Specifications
AC Input Specifications
Operating Environment
Safety & Reliability
Communication & Alarm
General
| Item | Specifications | |
|---|---|---|
| General | Model | CGW0081200B |
| Dimensions | 1085*300*406mm（L*W*H） | |
| Weight | ≤82kg |
Output Specifications
|
Item |
Specifications |
|
|
Output Specifications |
Output Voltage Range |
Forward: 0V~12V (Linear); Reverse: 0V~-36V (Linear) |
|
Output Current Range |
Forward: 0A~1200A (Linear); Reverse: 0A~3600A (Linear) |
|
|
Polarity Switching Time |
＜1ms |
|
|
Efficiency |
≥ 91% (Peak); ≥ 90% (Full Load) |
|
|
Current Regulation Accuracy |
≤ ±1% (within 20%~100% of rated current) |
AC Input Specifications
|
Item |
Specifications |
|
|
AC Input Specifications |
Rated Input Voltage |
Three-phase 380V AC |
|
Input Voltage Range |
323Vac～437Vac |
|
|
Input Current |
＜45A |
|
|
Power Factor (PF) |
≥ 0.90 @ 380V AC, Full Load |
Operating Environment
|
Item |
Specifications |
|
|
Operating Environment |
Operating Environment |
-40°C to +40°C |
|
Storage Temp |
-40°C to +85°C |
|
|
Humidity |
0% – 95% RH (Non-condensing) |
|
|
Altitude |
≤2000m |
Safety & Reliability
|
Item |
Specifications |
|
|
Safety & Reliability |
Dielectric Strength (Hipot) |
Input to Chassis: 3535VDC / 1 min |
|
MTBF |
> 100,000 Hours |
Communication & Alarm
|
Item |
Specifications |
|
|
Communication & Alarm |
Communication Interface |
CAN, RS485 |
|
Modules per Tank/Cell |
4 units |
