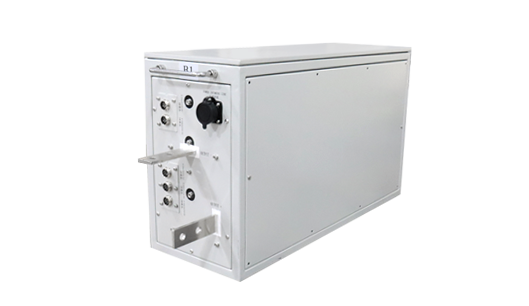

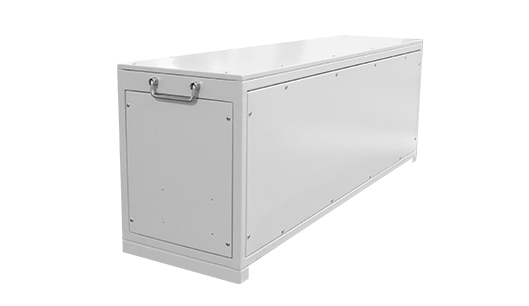

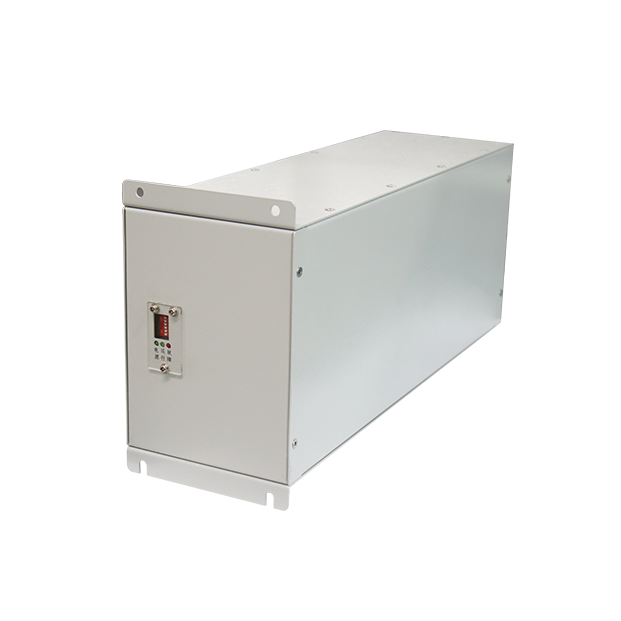

9.6kW Water-Cooled AC/DC Electroplating Power Supply Module
CGW081200A
The CGW081200A is a high-frequency switching rectifier module featuring AC voltage input and an adjustable DC output.Built with DSP digital control and resonant soft-switching technologies, this module is protected by multiple technical patents.It is characterized by high power density, high power factor, and superior conversion efficiency.The module supports multi-unit parallel operation for scalable power capacity.
Product Features
High Efficiency & Energy SavingUltra-High Efficiency: Peak efficiency ≥95%, significantly reducing energy loss.
Copper Saving: Superior plating uniformity with minimal thickness deviation, reducing the consumption of copper and other precious metals.
Power Saving: Features dynamic energy optimization technology and low standby power consumption.
01
Superior PerformanceWide Adjustable Output Range: 0–8V linear adjustment, covering all panel plating scenarios.
Wide Output Current Range: 0–1200A linearly adjustable output current, suitable for diverse electroplating process requirements.
02
Safe & ReliableBrick-Structure Water Cooling: Designed for superior heat dissipation, high reliability, and extended service life.
Brick-Structure Water Cooling: Designed for superior heat dissipation, high reliability, and extended service life.
03
Wide AdaptabilityEnvironmental Adaptability: Wide operating temperature range (-25°C to +50°C) to meet harsh industrial requirements.
Low Input Harmonics: Ensures superior grid compatibility and stability.
04
Product Parameters
CGW081200A
General
Output Specifications
AC Input Specifications
Operating Environment
Safety & Reliability
Communication & Alarm
General
|
Item |
Specifications |
|
|---|---|---|
| General | Model | CGW081200A |
| Dimensions | 577.5*189*225mm（L*W*H） | |
| Weight | ≤16kg |
Output Specifications
|
Item |
Specifications |
|
|
Output Specifications |
Output Voltage Range |
0V – 8V (Linearly adjustable) |
|
Output Current Range |
0A – 1200A (Linearly adjustable) |
|
|
Efficiency |
≥95% (Peak); ≥93% (Full Load) |
|
|
Relative Current Regulation Accuracy |
±0.5% |
|
|
Absolute Current Regulation Accuracy |
±6A |
|
|
Current Ripple Coefficient |
≤3% |
AC Input Specifications
|
Item |
Specifications |
|
|
AC Input Specifications |
Rated Input Voltage |
Three-phase 380V AC |
|
Input Voltage Range |
342V AC – 418V AC |
|
|
Input Current |
≤18A |
|
|
Frequency |
47Hz – 63Hz |
|
|
Power Factor (PF) |
≥0.93 |
Operating Environment
|
Item |
Specifications |
|
|
Operating Environment |
Operating Environment |
-25°C to +50°C |
|
Storage Temp |
-40°C to +85°C |
|
|
Humidity |
20% – 95% RH (Non-condensing) |
|
|
Altitude |
≤3000m |
Safety & Reliability
|
Item |
Specifications |
|
|
Safety & Reliability |
Dielectric Strength (Hipot) |
In-to-Out: 3000V AC / 10mA / 1 min； In-to-Chassis: 1500V AC / 10mA / 1 min; Out-to-Chassis: 500V AC / 10mA / 1 min |
|
Insulation Resistance |
In-to-Out/Chassis: ≥100MΩ @ 500V DC; Out-to-Chassis: ≥100MΩ @ 500V DC |
|
|
MTBF |
>100,000 hours |
Communication & Alarm
|
Item |
Specifications |
|
|
Communication & Alarm |
Communication Interface |
RS485 |
|
Modules per Tank/Cell |
2 units |
Expand all parameters
Application Scenarios
VCP Electroplating Line
Gantry-Type Electroplating Line
