4.5kW On-board DC/DC Power Module
EVMC24-4500MF

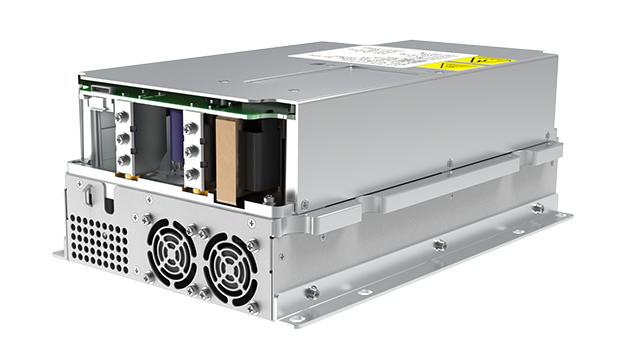

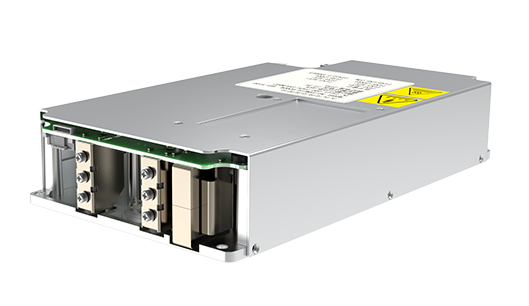

The EVMC24-4500MF is an on-board DC/DC power module featuring DC voltage input and adjustable DC voltage output. Utilizing DSP digital control, resonant soft-switching, and Three-level Boost technologies, the module is protected by multiple patents. It is characterized by high power density, a wide input voltage range, an extensive operating temperature range, high efficiency, vibration resistance, and superior EMC performance. The module integrates comprehensive protection mechanisms—including input over/under-voltage, output over-current, output over-voltage, output short-circuit, and over-temperature protection—while also supporting multi-module parallel operation. Notably, it features an independent air duct design for high heat dissipation efficiency.
Product Features
High Efficiency & Energy SavingHigh efficiency: Reduces energy loss, meets energy conservation and emission reduction requirements, and cuts electricity costs for customers.
High power density: Saves customer space and reduces system costs.
01
Excellent PerformanceWide input voltage range: Covers 200V~765V DC input, with high-voltage side startup.
02
Safety & ReliabilityBuilt-in comprehensive protection and fault self-detection: Greatly improves system reliability, with rich fault detection for convenient customer maintenance.
DSP digital control: Fewer components, higher environmental stability, higher reliability, and easier system expansion.
03
Wide AdaptabilityEnvironmental adaptation: Wide operating temperature range of -40°C ~ 75°C, suitable for harsh working environments.
High vibration resistance: Designed to meet commercial vehicle on-board equipment requirements, and can pass the ISO16750-3 4.1.2.7 test standard.
04
Product Parameters
EVMC24-4500MF
General
DC Output
DC Input
Operating Environment
Other Parameters
General
|
Item |
Specification |
|
|
General |
Model |
EVMC24-4500MF |
|
Dimensions |
286*109*189mm （D*H*W） |
|
|
Weight |
Approx. 7.7kg |
DC Output
| Item | Specification | |
|---|---|---|
| DC Output | Rated Power | 4.5KW |
| Peak Power | 4.95kW | |
| Rated Voltage | 27V | |
| Rated Current | 164A | |
| Peak Current | 180A | |
| Constant Current Range | 20VDC~27.5VDC | |
| Constant Power Range | 27.5VDC~29VDC | |
| Current Limiting Range | 10%~110% | |
| Voltage Ripple | ≤ 500mV (Measured with decoupling capacitors, at output currents exceeding 10% of the rated current). | |
| Voltage Regulation Accuracy | ≤±1% | |
| Current Regulation Accuracy | ≤±1% | |
| Full-load Efficiency | ≥94% | |
| Peak Efficiency | ≥96% |
DC Input
| Item | Specification | |
|---|---|---|
| HV DC Input | Rated HV Input | 540V |
| Input Voltage Range | 300Vdc～765Vdc | |
| HV Input Derating | 300Vdc~180Vdc linear power reduction to 39%; module shuts down below 180Vdc | |
| Input Current | ＜18A | |
| Standby Power Consumption | ＜5W | |
| Startup Mode | Default Standby | |
| LV DC Input | LV Input Range | 9Vdc~32Vdc |
| LV Input Current | ＜2A | |
| Input Protection | Fuse; Reverse Polarity Protection; EMC | |
| Hardware Enable - P_Enable | Low Level Active |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Coolant Temperature |
-40℃～55℃ |
|
Ingress Protection |
IP00 |
|
|
Storage Temperature |
-40℃～75℃ |
|
|
Relative Humidity |
0～95% |
|
|
Vibration level |
Broadband random vibration at 6Grms, in accordance with ISO16750-3, Clause 4.1.2.7. |
|
|
Altitude |
Full load output below 2000m |
Other Parameters
|
Item |
Specification |
|
|
Safety & Reliability |
Dielectric Strength |
In-Out / In-CAN: 3535VDC, 1min; CAN-Chassis: 707VDC, 1min |
|
Insulation Resistance |
In-Out / In-CAN: Min 20M Ohm; CAN-Chassis: Min 600k Ohm (@707VDC) |
|
|
Safety Standard |
Designed according to EN 61800-5-1:2007 |
|
|
Clearance & Creepage |
Complies with GB/T 24347-2009 and IEC/EN 61800-5-1 |
|
|
Communication & Operation |
Comm. Interface |
CAN2.0 |
|
Communication Baud Rate |
250K |
|
|
Input UVP Protection |
180V±5V |
|
|
Input UVP Recovery |
195V±5V |
|
|
Input OVP Protection |
785V±5V |
|
|
Input OVP Recovery |
770V±5V |
|
|
Output Short Circuit |
Hiccup mode; Auto-recovery after fault removal |
|
|
Input Reverse Polarity |
Supported (No damage upon reverse connection) |
|
|
Thermal Derating |
Power linearly derates starting at 78°C (Cooling plate); Reaches 0W at 105°C. |
|
|
Over-temp Protection |
105℃ |
|
|
CAN Timeout |
Default 10s (Adjustable 3s-180s); Reverts to the default state upon timeout. |
