Urban Rail Transit Smart DC Lighting Solution

Home> Solution> DC Lighting Solution>

Urban Rail Transit Smart DC Lighting Solution

Since 2015, the rapid expansion of urban rail networks has seen total mileage grow at an average annual rate of over 15%. This steady growth, coupled with the continuous upgrading of infrastructure standards, has driven a significant increase in the demand for specialized rail transit lighting engineering.To overcome the inherent limitations of traditional AC-powered systems in rail environments—such as high maintenance complexity and energy inefficiency—Increase Technology has pioneered a dedicated Urban Rail Transit Smart DC Lighting Solution.This comprehensive system integrates our Centralized Smart Management Software, Smart DC Dimming Distribution Cabinets, and DC PLC LED Drivers. Together, these components establish a highly efficient, secure, and intelligent DC power management ecosystem, specifically optimized for the rigorous demands of modern rail infrastructure.

Consult Solutions

解决方案细节图

点击查看大图

Key Features

Integrated Smart Monitoring

Features comprehensive monitoring of power distribution and lighting status, enabling seamless remote control and intelligent dimming.

High-Efficiency & Low-Carbon Operation

Utilizes centralized AC/DC conversion and advanced Silicon Carbide (SiC) technology to significantly optimize system efficiency and reduce operational costs.

Secure Floating Ground Power Supply

Delivers floating DC output that eliminates electric shock risks from single-pole contact, integrated with full-line insulation detection for maximum safety.

Robust Reliability & Easy Maintenance

Engineered with a sealed dust-proof design. All modules support hot-swapping, ensuring uninterrupted system stability and easy on-site maintenance.

Related Products

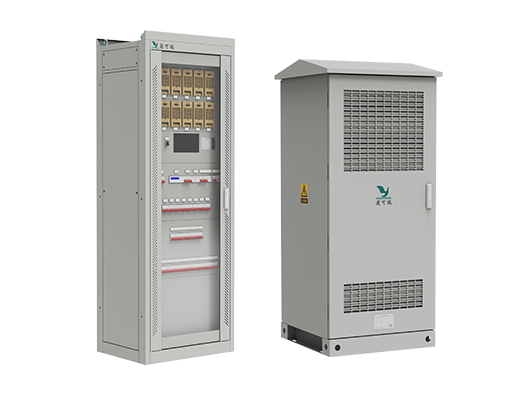

U300-W Series Smart DC Lighting Dimming Distribution Cabinet

The U300-W Series is a high-performance intelligent lighting distribution solution designed with a 380V AC three-phase input and a 220V DC output. At its core, the system utilizes advanced DC Power Line Communication (PLC) dimming technology based on Manchester encoding, enabling seamless control and communication over existing power lines.

Product Details

U048-W Series Intelligent DC Safety Lighting Distribution Panel

The U048-W Series is an intelligent distribution unit engineered for SELV (Safety Extra-Low Voltage) DC lighting systems. It features a 3-phase 380Vac input and delivers a safe, regulated 48Vdc output, providing maximum electrical safety for public environments.

Product Details

DPN Series: DC Power Line Carrier (PLC) Dimming LED Driver

The DPN Series features high-performance dimmable LED drivers designed with a wide DC input range of 200–450V and an isolated constant current (CC) output. These drivers integrate advanced DC Power Line Communication (PLC) technology, capable of decoding Manchester-encoded dimming signals directly from the power line. Fully compliant with GB/T 17743-2021, GB/T 19510.1-2023, and GB/T 19510.213-2023 standards, the DPN series is engineered for large-scale lighting infrastructures, including metro stations, maintenance depots, and commercial office complexes.

Product Details

U300-G Series: Specialized DC Intelligent Dimming & Distribution Cabinet for Rail Transit

The U300 Series distribution cabinet is a high-performance solution designed for rail transit lighting. It features AC 3-Phase 380V input and DC 220V rated output, integrating advanced Manchester-coded DC Power Line Carrier (PLC) dimming technology. Developed in accordance with GB/T 3797-2016 and GB/T 7251.8-2020 standards, this system is purpose-built for rail infrastructure, including subway stations, urban rail hubs, and maintenance depots. It supports independent circuit dimming, zone-based control, and sensor-integrated smart dimming functionalities.

Product Details

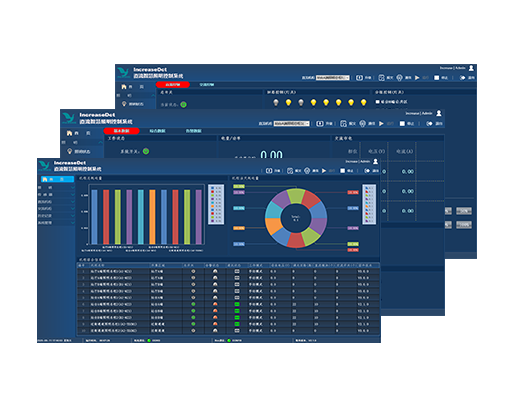

Smart Lighting Management Software MONITOR-CS-01

The MONITOR-CS-01 is a high-performance, 64-bit Windows-based host monitoring application specifically engineered for Smart DC Lighting Solutions. Built on a robust Client-Server (C/S) architecture utilizing the WPF framework and SQL Server database, this software enables real-time data acquisition from all distribution cabinets, flexible intelligent lighting control strategies, multi-dimensional energy metering, and comprehensive tracking of current and historical fault alarms. To ensure seamless system integration, it provides open communication interfaces and standard protocols for real-time data synchronization with higher-level integrated monitoring systems or third-party Centralized Management Systems (CMS).

Product Details

Application Cases

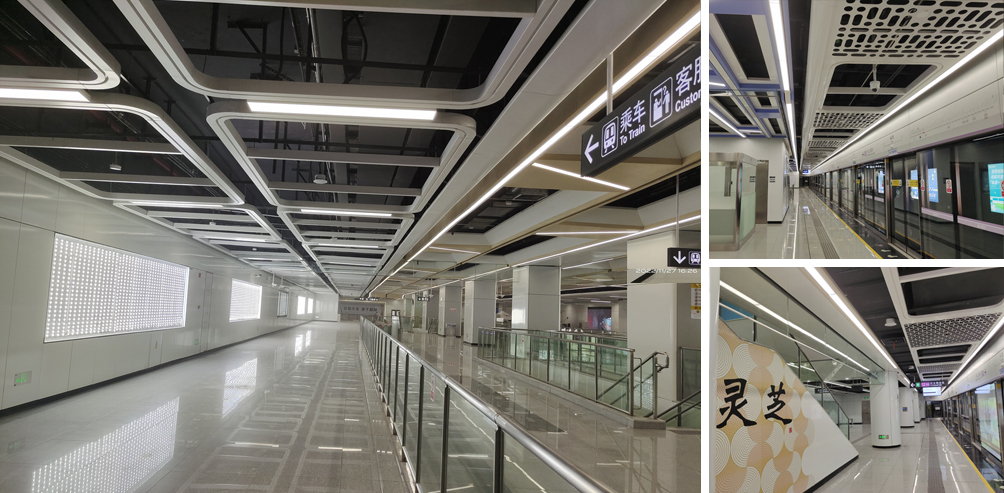

Metro Station

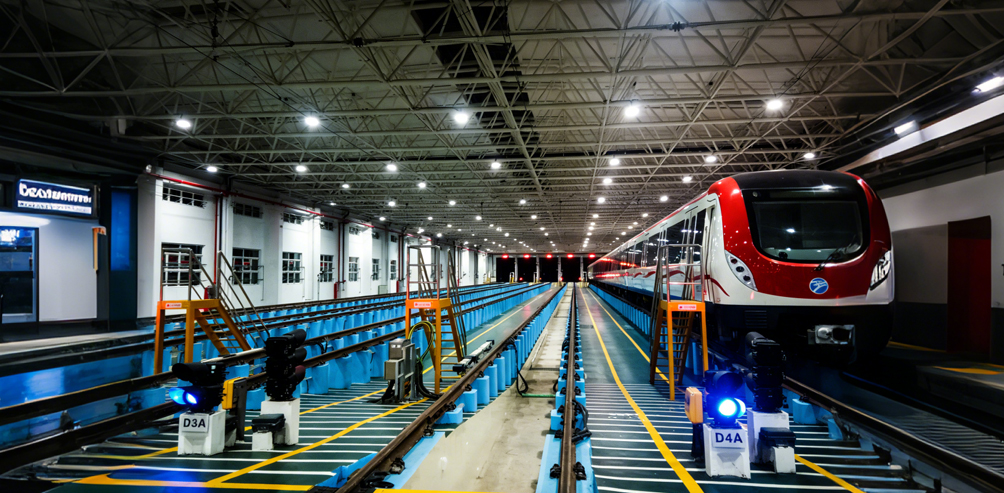

Metro Depot1

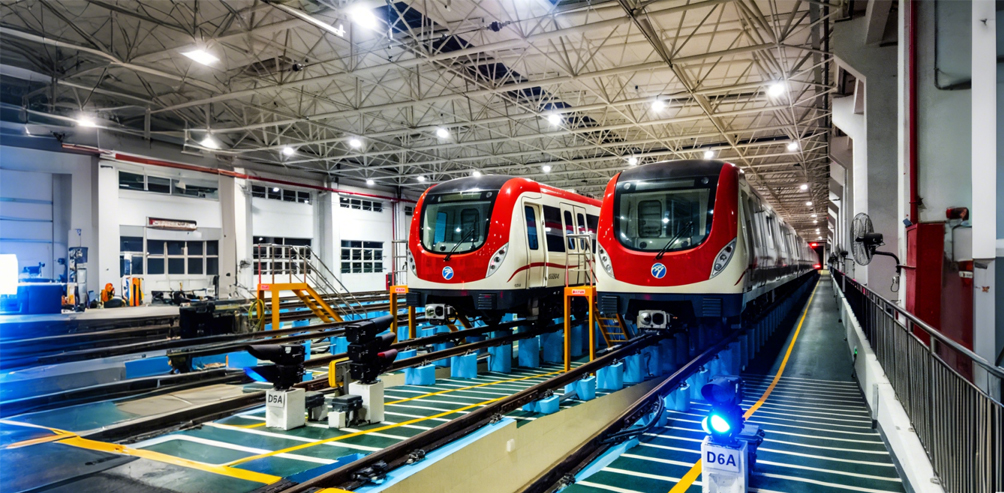

Metro Depot2
