StockCode
300713

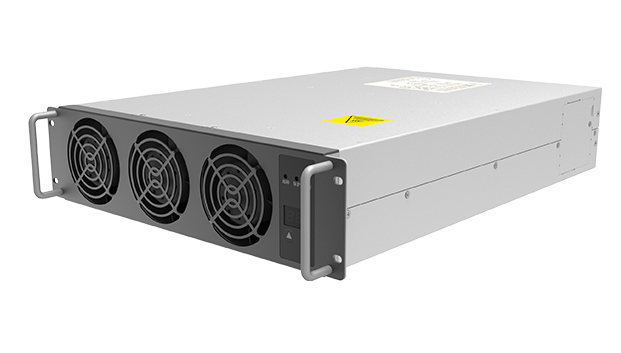

40kW Air-Cooled 2U Output: 150~1000Vdc
EVR1000-40000C(E)
The EVR1000-40000C(G3) is a new-generation, zero-standby-power air-cooled charging module launched by INCREE. It is characterized by high power density, exceptional reliability, high efficiency, and a high power factor. Featuring a built-in AC contactor, the module achieves zero power consumption during standby, effectively conserving energy and reducing operational costs while fully satisfying the charging requirements of all types of electric vehicles.
Product Features
High Efficiency & Energy SavingHigh power density: The internal space layout is greatly optimized, significantly saving the internal space of the charging pile.
Ultra-high efficiency: Adopts advanced SiC technology, with full-load efficiency ≥ 96% and peak efficiency ≥ 97%, significantly reducing operating energy consumption.
01
Zero Power ConsumptionIn non-charging state, the module can achieve complete power-off without standby power consumption, saving a large amount of electricity and reducing operation costs compared with traditional modules.
02
Safety & ReliabilityAdopts DSP digital control, supporting voltage and current adjustment functions.
Built-in output voltage discharge and battery anti-reflux protection circuits.
Rich fault detection, protection and alarm functions, facilitating later maintenance.
03
Wide AdaptabilityAdopts a three-fan balanced heat dissipation layout and full potting technology, effectively covering component pins, improving high-temperature resistance, dustproof and waterproof performance, and adapting to extreme environments from -40°C to 75°C.
04
Product Parameters
EVR1000-40000C(G3)
General
DC Output
AC Input
Operating Environment
Other Parameters
General
|
Item |
Specification |
|
|
General |
Model |
EVR1000-40000C(G3) |
|
Dimensions |
300mm (W) × 84mm (H) × 437.5mm (D) |
|
|
Weight |
Approx. 17kg |
|
|
Output Voltage Range |
150V - 1000V (Constant power: 300V - 1000V, 40kW) |
|
|
Output Current Range |
0A~133.4A (T≤55℃) |
DC Output
|
Item |
Specification |
|
|
DC Output |
Peak-to-Peak Noise |
≤1% |
|
Voltage Regulation Accuracy |
≤±0.5% |
|
|
Current Regulation Accuracy |
≤±1% |
|
|
Current Sharing |
≤±5% |
|
|
Efficiency |
≥96%(Full Load); ≥97% (Peak) |
AC Input
|
Item |
Specification |
|
|
AC Input |
Rated Input Voltage |
3-Phase 380Vac / 480Vac |
|
Input Voltage Range |
320Vac - 490Vac (Full load); |
|
|
Input Current |
＜80A |
|
|
Frequency |
45Hz～65Hz |
|
|
Power Factor (PF) |
≥0.99 |
|
|
Total Harmonic Distortion (THD) |
≤5% |
|
|
Input Protection |
Fuses; Surge Protection Circuit (SPD) |
|
|
Standby Power Consumption |
Zero Standby Power |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Coolant Temperature |
-40℃～55℃(Normal); 55℃~75℃(Derating) |
|
Storage Temperature |
-40℃～75℃ |
|
|
Relative Humidity |
0～95% |
|
|
Altitude |
Full load output below 2000m |
Other Parameters
|
Item |
Specification |
|
|
Reliability & Compliance |
Dielectric Strength |
Input-Chassis / Output-Chassis / Input-Output: DC 3535V, 1min
|
|
MTBF |
＞120,000 Hours |
|
|
Safety Standards |
Compliant with IEC 61851-1:2023 and GB 39752-2024 |
|
|
Communication |
Communication Interface |
CAN |
|
Max. Units in Parallel |
60 units |
|
|
Protection & Isolation: Output anti-backflow diode failure isolation; integrated output discharge function. |
||
|
Monitoring: Faults and status reported via CAN bus; includes 3-LED front panel indicators. |
||
Expand all parameters
Application Scenarios

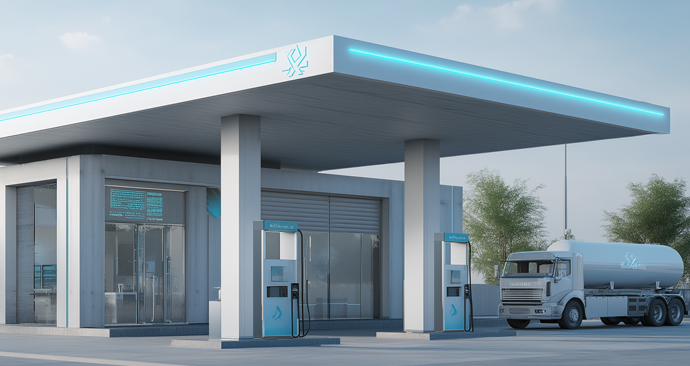

Expressway Charging Station

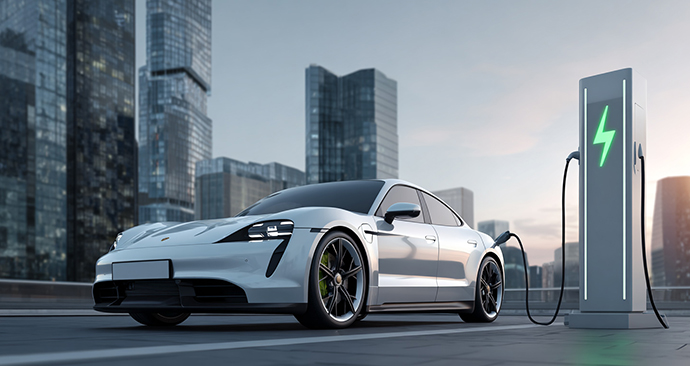

Urban Fast Charging Station

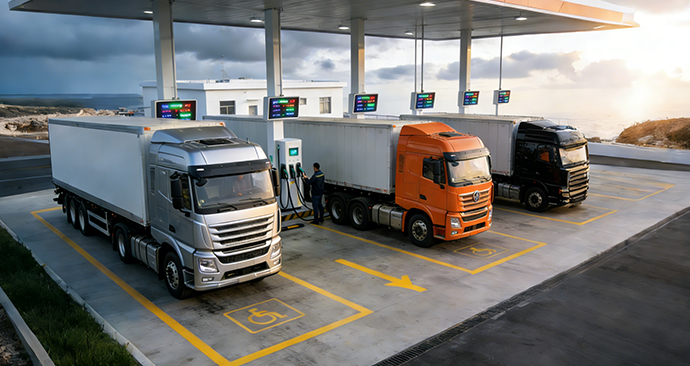

Heavy-Duty Truck Charging Station
