60kW Air Cooled Output: 50~1000Vdc
EVR1000-60000C

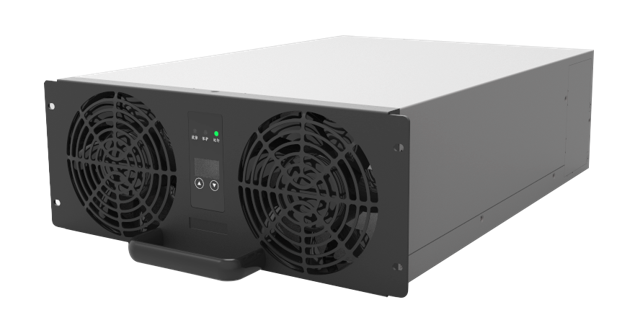

The EVR1000-60000C is a 60kW charging module based on a high-power-density platform. It supports an ultra-wide output range of 50–1000V and a maximum output current of 200A, with a peak efficiency of ≥97.5%. The module adopts an efficient air-cooling design, achieving low noise operation at ≤60dB and stable thermal performance. With full-power operation from -40°C to +55°C, it provides a highly efficient, reliable and adaptable core power module solution for high-end DC fast charging systems.
Product Features
IP55Dustproof, waterproof, salt spray resistant, and rustproof, adaptable to operating environments from -30℃ to +70℃ (derating output above 55℃).
01
Multiple electrical protectionsIncludes input overvoltage protection, output overvoltage protection, output overcurrent protection, short circuit protection, battery reverse connection protection, insulation protection, access control protection, BMS data abnormality protection, emergency stop protection, electromagnetic lock fault protection, etc., ensuring the safety of the charging process.
02
Product Parameters
EVR1000-60000C
General
AC Input
DC Output
Ambient Conditions
Standards & Compliance
General
|
Item |
Specification |
|
|
General |
Model |
EEVR1000-60000C |
|
Dimensions |
300mm (W) × 125mm (H) × 463.5mm (D) |
|
|
Weight |
Approx. 23kg |
AC Input
|
Item |
Specification |
|
|
AC Input |
Connection type |
U/V/W+PE |
|
IInput voltage-rated |
380Vac |
|
|
Input voltage range |
260~530Vac |
|
|
Input frequency |
45Hz~65Hz |
|
|
Constant power |
60kW |
|
|
Max.power factor |
≥0.99 |
|
|
THDi |
≤5% |
|
|
Max.efficiency |
≥97.5% |
DC Output
|
Item |
Specification |
|
|
DC Output |
Output Voltage range |
50~1000Vdc |
|
Output current |
≤200A |
|
|
Output current accuracy |
≤±1.0% |
|
|
Output voltage accuracy |
≤±0.5% |
Ambient Conditions
|
Item |
Specification |
|
|
Ambient Conditions |
Operating Temp.range |
-40℃~+55℃,w/o derating; +55~+75℃,derating |
|
Operating humidity |
0-95% |
|
|
Operating altitude |
≤2000m |
Standards & Compliance
|
Item |
Specification |
|
|
Mechanical Data |
Cooling method |
Forced air cooling |
|
Noise level |
≤60dB |
|
|
Standard and Compliance |
Communication |
CAN 2.0 |
|
Input circuit protection |
Built-in SPD,Fuse,Varistor |
|
|
Output circuit protection |
External fuse |
Expand all parameters
Application Scenarios
Expressway Charging Station
Office Park Charging Station
Residential Community Charging Station
Mining Site Charging Station
Port Charging Station
