StockCode
300713
3.5kW Air-Cooled Output: 200~420Vdc
EVR400-3500
The 3.5kW series high-frequency switching rectifier module is an AC/DC power unit with AC voltage input and adjustable DC voltage output. Specifically designed for portable, handheld, and on-board charging (OBC) scenarios, the product features a wide input voltage range and a broad operating temperature range. It is characterized by high reliability, high efficiency, a high power factor, and high power density, alongside low noise and low standby power consumption.
Product Features
High Efficiency & Energy SavingHigh power density: High power density and small size reduce system costs.
Ultra-high efficiency: Peak efficiency ≥ 93.5%, reducing charging operation costs.
01
Excellent PerformanceWide output voltage range: 200V~420V.
Comprehensive protection: Equipped with complete protection circuits, including output over-voltage protection, input under-voltage/over-voltage protection, over-temperature protection, and fan failure protection.
02
Safety & ReliabilityFull potting protection: Adopts full potting technology for excellent heat dissipation, high reliability, long service life, and enhanced environmental protection against salt spray and mold.
Reduced heat dissipation requirements: Simplified heat dissipation design reduces fan noise and improves reliability.
03
Wide AdaptabilityUnlimited scenarios: Wide operating temperature range of -40°C ~ 75°C, suitable for harsh working environments.
Low input harmonics: Stronger adaptability to the power grid.
04
Product Parameters
EVR400-3500
EVR400-3500B
EVR500-3500
EVR700-3500
EVR800-3500
General
DC Output
AC Input
Operating Environment
Other Parameters
General
DC Output
AC Input
Operating Environment
Other Parameters
General
DC Output
AC Input
Operating Environment
Other Parameters
General
DC Output
AC Input
Operating Environment
Other Parameters
General
DC Output
AC Input
Operating Environment
Other Parameters
General
|
Item |
Specification |
|
|
General |
Model |
EVR400-3500 |
| Rated Output Power | 3.5kW | |
|
Weight |
2kg |
|
|
Dimensions |
125mm (W) × 41mm (H) × 303mm (D) |
DC Output
| Item | Specification | |
|---|---|---|
| DC Output | Rated Output Current | 9A |
| Output Voltage Range | 200~420VDC | |
| Current Limiting Range | 10%~110% (Stepless) | |
| Peak-to-Peak Noise | ≤±0.5% | |
| Voltage Regulation Accuracy | ≤±0.5% | |
| Current Regulation Accuracy | ≤±1% | |
| Current Sharing | ≤±5% | |
| Efficiency | ≥93% (100% Load); ≥93.5% (50% Load) | |
| Short Circuit | Limit current, auto-recovery. | |
| Over-current | Internal shutdown, auto-recovery. | |
| Over-voltage | Shutdown and lock, manual reset/re-power required. |
AC Input
|
Item |
Specification |
|
|---|---|---|
|
AC Input |
Rated Input Voltage | 220VAC / 220VDC; 110VAC / 110VDC (Half load) |
| Input Voltage Range |
AC: 176 - 300VAC (Full load); 85 - 176VAC (Derating) DC: 176 - 420VDC (Full load); 85 - 176VDC (Derating) |
|
| Input Current | ＜25A | |
|
Frequency |
45Hz～65Hz | |
|
Power Factor (PF) |
≥0.99 | |
|
Total Harmonic Distortion (THD) |
≤5% | |
| Input Startup Voltage | ≥85VAC or 85VDC | |
| Input Sampling Accuracy | ±5VAC or VDC | |
| OVP/UVP |
AC: Shutdown >300VAC, <80VAC; Recovery 285VAC / 95VAC, Accuracy: ±5Vac DC: Shutdown >420VDC, <80VDC; Recovery 405VDC / 95VDC, Accuracy: ±5Vac |
|
|
Input Protection |
Fuses; Surge Protection Circuit (SPD) |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Coolant Temperature |
-40℃～45℃(Normal); 45℃~75℃(Derating) |
|
Storage Temperature |
-40℃～75℃ |
|
|
Relative Humidity |
0～95% |
|
|
Altitude |
Full load output below 2000m |
Other Parameters
|
Item |
Specification |
|
|
Reliability & Compliance |
Dielectric Strength |
Input to Chassis: 3535VDC/1min (50Hz equivalent) Input to Output: 4242VDC/1min (50Hz equivalent) |
|
MTBF |
＞120,000 Hours |
|
|
Communication |
Communication Interface |
CAN |
|
Max. Units in Parallel |
60 units |
|
|
Output anti-backflow diode failure isolation; Integrated output discharge: < 48V within 1s. |
||
Expand all parameters
General
|
Item |
Specification |
|
|
General |
Model |
EVR400-3500B |
| Rated Output Power | 3.5kW | |
|
Weight |
2kg |
|
|
Dimensions |
125mm (W) × 41mm (H) × 303mm (D) |
DC Output
| Item | Specification | |
|---|---|---|
| DC Output | Rated Output Current | 9A |
| Output Voltage Range | 200~530VDC | |
| Current Limiting Range | 10%~110% (Stepless) | |
| Peak-to-Peak Noise | ≤±0.5% | |
| Voltage Regulation Accuracy | ≤±0.5% | |
| Current Regulation Accuracy | ≤±1% | |
| Current Sharing | ≤±5% | |
| Efficiency | ≥93% (100% Load); ≥93.5% (50% Load) | |
| Short Circuit | Limit current, auto-recovery. | |
| Over-current | Internal shutdown, auto-recovery. | |
| Over-voltage | Shutdown and lock, manual reset/re-power required. |
AC Input
|
Item |
Specification |
|
|---|---|---|
|
AC Input |
Rated Input Voltage | 220VAC / 220VDC; 110VAC / 110VDC (Half load) |
| Input Voltage Range |
AC: 176 - 300VAC (Full load); 85 - 176VAC (Derating) DC: 176 - 420VDC (Full load); 85 - 176VDC (Derating) |
|
| Input Current | ＜25A | |
|
Frequency |
45Hz～65Hz | |
|
Power Factor (PF) |
≥0.99 | |
|
Total Harmonic Distortion (THD) |
≤5% | |
| Input Startup Voltage | ≥85VAC or 85VDC | |
| Input Sampling Accuracy | ±5VAC or VDC | |
| OVP/UVP |
AC: Shutdown >300VAC, <80VAC; Recovery 285VAC / 95VAC, Accuracy: ±5Vac DC: Shutdown >420VDC, <80VDC; Recovery 405VDC / 95VDC, Accuracy: ±5Vac |
|
|
Input Protection |
Fuses; Surge Protection Circuit (SPD) |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Coolant Temperature |
-40℃～45℃(Normal); 45℃~75℃(Derating) |
|
Storage Temperature |
-40℃～75℃ |
|
|
Relative Humidity |
0～95% |
|
|
Altitude |
Full load output below 2000m |
Other Parameters
|
Item |
Specification |
|
|
Reliability & Compliance |
Dielectric Strength |
Input to Chassis: 3535VDC/1min (50Hz equivalent) Input to Output: 4242VDC/1min (50Hz equivalent) |
|
MTBF |
＞120,000 Hours |
|
|
Communication |
Communication Interface |
CAN |
|
Max. Units in Parallel |
60 units |
|
|
Output anti-backflow diode failure isolation; Integrated output discharge: < 48V within 1s. |
||
Expand all parameters
General
|
Item |
Specification |
|
|
General |
Model |
EVR500-3500 |
| Rated Output Power | 3.5kW | |
|
Weight |
2kg |
|
|
Dimensions |
125mm (W) × 41mm (H) × 303mm (D) |
DC Output
| Item | Specification | |
|---|---|---|
| DC Output | Rated Output Current | 7A |
| Output Voltage Range | 200~530VDC | |
| Current Limiting Range | 10%~110% (Stepless) | |
| Peak-to-Peak Noise | ≤±0.5% | |
| Voltage Regulation Accuracy | ≤±0.5% | |
| Current Regulation Accuracy | ≤±1% | |
| Current Sharing | ≤±5% | |
| Efficiency | ≥93% (100% Load); ≥93.5% (50% Load) | |
| Short Circuit | Limit current, auto-recovery. | |
| Over-current | Internal shutdown, auto-recovery. | |
| Over-voltage | Shutdown and lock, manual reset/re-power required. |
AC Input
|
Item |
Specification |
|
|---|---|---|
|
AC Input |
Rated Input Voltage | 220VAC / 220VDC; 110VAC / 110VDC (Half load) |
| Input Voltage Range |
AC: 176 - 300VAC (Full load); 85 - 176VAC (Derating) DC: 176 - 420VDC (Full load); 85 - 176VDC (Derating) |
|
| Input Current | ＜25A | |
|
Frequency |
45Hz～65Hz | |
|
Power Factor (PF) |
≥0.99 | |
|
Total Harmonic Distortion (THD) |
≤5% | |
| Input Startup Voltage | ≥85VAC or 85VDC | |
| Input Sampling Accuracy | ±5VAC or VDC | |
| OVP/UVP |
AC: Shutdown >300VAC, <80VAC; Recovery 285VAC / 95VAC, Accuracy: ±5Vac DC: Shutdown >420VDC, <80VDC; Recovery 405VDC / 95VDC, Accuracy: ±5Vac |
|
|
Input Protection |
Fuses; Surge Protection Circuit (SPD) |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Coolant Temperature |
-40℃～45℃(Normal); 45℃~75℃(Derating) |
|
Storage Temperature |
-40℃～75℃ |
|
|
Relative Humidity |
0～95% |
|
|
Altitude |
Full load output below 2000m |
Other Parameters
|
Item |
Specification |
|
|
Reliability & Compliance |
Dielectric Strength |
Input to Chassis: 3535VDC/1min (50Hz equivalent) Input to Output: 4242VDC/1min (50Hz equivalent) |
|
MTBF |
＞120,000 Hours |
|
|
Communication |
Communication Interface |
CAN |
|
Max. Units in Parallel |
60 units |
|
|
Output anti-backflow diode failure isolation; Integrated output discharge: < 48V within 1s. |
||
Expand all parameters
General
|
Item |
Specification |
|
|
General |
Model |
EVR700-3500 |
| Rated Output Power | 3.5kW | |
|
Weight |
2kg |
|
|
Dimensions |
125mm (W) × 41mm (H) × 303mm (D) |
DC Output
| Item | Specification | |
|---|---|---|
| DC Output | Rated Output Current | 5A |
| Output Voltage Range | 200~750VDC | |
| Current Limiting Range | 10%~110% (Stepless) | |
| Peak-to-Peak Noise | ≤±0.5% | |
| Voltage Regulation Accuracy | ≤±0.5% | |
| Current Regulation Accuracy | ≤±1% | |
| Current Sharing | ≤±5% | |
| Efficiency | ≥93% (100% Load); ≥93.5% (50% Load) | |
| Short Circuit | Limit current, auto-recovery. | |
| Over-current | Internal shutdown, auto-recovery. | |
| Over-voltage | Shutdown and lock, manual reset/re-power required. |
AC Input
|
Item |
Specification |
|
|---|---|---|
|
AC Input |
Rated Input Voltage | 220VAC / 220VDC; 110VAC / 110VDC (Half load) |
| Input Voltage Range |
AC: 176 - 300VAC (Full load); 85 - 176VAC (Derating) DC: 176 - 420VDC (Full load); 85 - 176VDC (Derating) |
|
| Input Current | ＜25A | |
|
Frequency |
45Hz～65Hz | |
|
Power Factor (PF) |
≥0.99 | |
|
Total Harmonic Distortion (THD) |
≤5% | |
| Input Startup Voltage | ≥85VAC or 85VDC | |
| Input Sampling Accuracy | ±5VAC or VDC | |
| OVP/UVP |
AC: Shutdown >300VAC, <80VAC; Recovery 285VAC / 95VAC, Accuracy: ±5Vac DC: Shutdown >420VDC, <80VDC; Recovery 405VDC / 95VDC, Accuracy: ±5Vac |
|
|
Input Protection |
Fuses; Surge Protection Circuit (SPD) |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Coolant Temperature |
-40℃～45℃(Normal); 45℃~75℃(Derating) |
|
Storage Temperature |
-40℃～75℃ |
|
|
Relative Humidity |
0～95% |
|
|
Altitude |
Full load output below 2000m |
Other Parameters
|
Item |
Specification |
|
|
Reliability & Compliance |
Dielectric Strength |
Input to Chassis: 3535VDC/1min (50Hz equivalent) Input to Output: 4242VDC/1min (50Hz equivalent) |
|
MTBF |
＞120,000 Hours |
|
|
Communication |
Communication Interface |
CAN |
|
Max. Units in Parallel |
60 units |
|
|
Output anti-backflow diode failure isolation; Integrated output discharge: < 48V within 1s. |
||
Expand all parameters
General
|
Item |
Specification |
|
|
General |
Model |
EVR800-3500 |
| Rated Output Power | 3.5kW | |
|
Weight |
2kg |
|
|
Dimensions |
125mm (W) × 41mm (H) × 303mm (D) |
DC Output
| Item | Specification | |
|---|---|---|
| DC Output | Rated Output Current | 5A |
| Output Voltage Range | 200~810VDC | |
| Current Limiting Range | 10%~110% (Stepless) | |
| Peak-to-Peak Noise | ≤±0.5% | |
| Voltage Regulation Accuracy | ≤±0.5% | |
| Current Regulation Accuracy | ≤±1% | |
| Current Sharing | ≤±5% | |
| Efficiency | ≥93% (100% Load); ≥93.5% (50% Load) | |
| Short Circuit | Limit current, auto-recovery. | |
| Over-current | Internal shutdown, auto-recovery. | |
| Over-voltage | Shutdown and lock, manual reset/re-power required. |
AC Input
|
Item |
Specification |
|
|---|---|---|
|
AC Input |
Rated Input Voltage | 220VAC / 220VDC; 110VAC / 110VDC (Half load) |
| Input Voltage Range |
AC: 176 - 300VAC (Full load); 85 - 176VAC (Derating) DC: 176 - 420VDC (Full load); 85 - 176VDC (Derating) |
|
| Input Current | ＜25A | |
|
Frequency |
45Hz～65Hz | |
|
Power Factor (PF) |
≥0.99 | |
|
Total Harmonic Distortion (THD) |
≤5% | |
| Input Startup Voltage | ≥85VAC or 85VDC | |
| Input Sampling Accuracy | ±5VAC or VDC | |
| OVP/UVP |
AC: Shutdown >300VAC, <80VAC; Recovery 285VAC / 95VAC, Accuracy: ±5Vac DC: Shutdown >420VDC, <80VDC; Recovery 405VDC / 95VDC, Accuracy: ±5Vac |
|
|
Input Protection |
Fuses; Surge Protection Circuit (SPD) |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Coolant Temperature |
-40℃～45℃(Normal); 45℃~75℃(Derating) |
|
Storage Temperature |
-40℃～75℃ |
|
|
Relative Humidity |
0～95% |
|
|
Altitude |
Full load output below 2000m |
Other Parameters
|
Item |
Specification |
|
|
Reliability & Compliance |
Dielectric Strength |
Input to Chassis: 3535VDC/1min (50Hz equivalent) Input to Output: 4242VDC/1min (50Hz equivalent) |
|
MTBF |
＞120,000 Hours |
|
|
Communication |
Communication Interface |
CAN |
|
Max. Units in Parallel |
60 units |
|
|
Output anti-backflow diode failure isolation; Integrated output discharge: < 48V within 1s. |
||
Expand all parameters

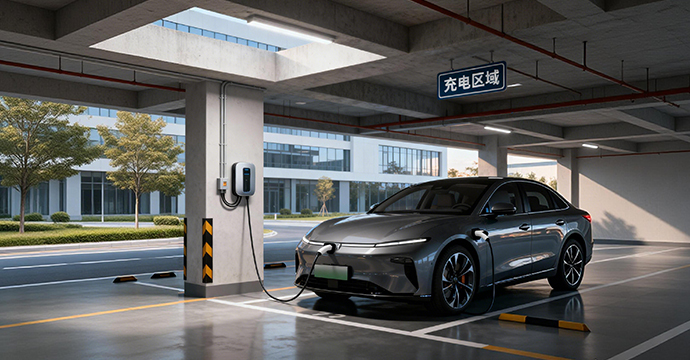

Application Scenarios
Portable Charging Station
Mobile Charging
On-Board Charging
