StockCode
300713
20kW Output:40-120Vdc/200A
ICR100-20000F

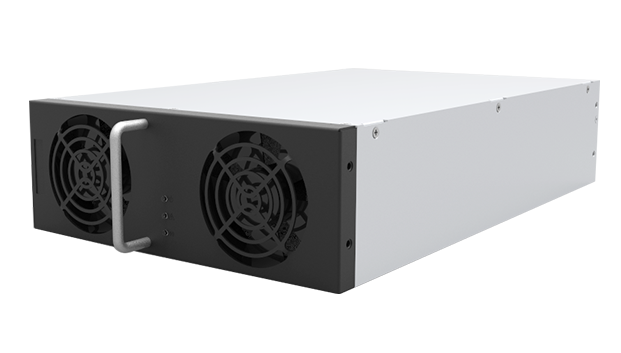

The ICR100-20000F is a 20kW AC/DC rectifier module designed for new energy vehicles and industrial charging systems. It supports three-phase AC input and a wide-range DC output of 20–120V, with a maximum output current of 220A. The module employs DSP digital control, resonant soft switching, and active PFC technology, achieving an efficiency of ≥95%, power factor (PF) ≥0.99, and total electrical discharge (THD) ≤5%. It is suitable for high-power charging scenarios such as new energy forklifts, AGVs, and special vehicles.
Product Features
High Efficiency & Energy SavingHigh efficiency: Reduces energy loss, meets energy conservation and emission reduction requirements, and cuts electricity costs for customers.
High power density: Saves customer space and reduces system costs.
01
Excellent PerformanceWide input and output voltage ranges: Suitable for most different input and output voltage scenarios.
DSP digital control: Fewer components, higher environmental stability, higher reliability, and easier system expansion.
02
Safety & ReliabilityBuilt-in reverse protection with failure self-isolation: Greatly improves system reliability.
Comprehensive fault self-detection and alerts: Rich fault detection functions for convenient customer maintenance.
03
Wide AdaptabilityEnvironmental adaptation: Wide operating temperature range of -40°C ~ 75°C, suitable for harsh working environments.
Low input harmonics: Reduces grid pollution and offers stronger grid adaptability.
04
Product Parameters
ICR100-20000F
General
DC Output
AC Input
Operating Environment
Other Parameters
General
|
Item |
Specification |
|
|
General |
Model |
ICR100-20000F |
|
Dimensions |
214 (width) × 84 (height) × 426 mm (depth, excluding handles and terminals) 214 (width) × 84 (height) × 469 mm (depth, including handle and terminals) |
|
|
Module net weight |
Approx. 10kg |
|
|
Output Rating |
100V@200A |
|
|
Output Voltage Range |
20V~120V (Constant power 91V~120V, output power 20kW) |
|
|
Output Current Range |
0A~220A (T≤55℃) |
DC Output
|
Item |
Specification |
|
|
DC Output |
Peak-to-Peak Noise |
≤1% |
|
Voltage Regulation Accuracy |
≤±0.5% |
|
|
Steady Flow Accuracy |
≤±1% |
|
|
Flow Equalization |
≤±5% |
|
|
Efficiency |
≥95% (peak value) |
|
|
12V Auxiliary Power |
12V/2A; 12V/3A (1 minute) |
AC Input
|
Item |
Specification |
|
|
AC Input |
Rated Input Voltage |
3-Phase 380Vac / 480Vac |
|
Input Voltage Range |
320Vac ~ 530Vac (full load); 320Vac ~ 260Vac (linearly drops to half load) |
|
|
Input Current |
< 40A |
|
|
Frequency |
45Hz～65Hz |
|
|
Power Factor (PF) |
≥0.99 |
|
|
THD (Total Distortion) |
≤5% |
|
|
Input Protection |
Insurance; lightning protection circuit |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Ambient Temperature |
Normal operation at -40℃ to 55℃; derating output at 55℃ to 75℃. |
|
Storage Temperature |
-40℃ ~ 75℃ |
|
|
Relative Humidity |
0–95% |
|
|
Altitude |
Full load output below 2000m |
Other Parameters
|
Item |
Specification |
|
|
Product Safety and Reliability |
Medium Strength |
Input-output, input-to-output communication: DC 4242V, 1min |
|
Input To Enclosure |
DC 3535V, 1 min |
|
|
Output To Housing, Output To Communication |
DC 2121V, 1min |
|
|
Communication To Enclosure |
DC 707V, 1min |
|
|
MTBF |
> 120,000 hours |
|
|
Safety Regulations |
Compliant with IEC62477-1 |
|
|
Communication And Alarms |
Communication Interface |
CAN |
|
Maximum Number Of Parallel Connections |
60 units |
|
|
It has an output discharge function; |
||
|
Alarms and status are reported to the monitoring system via the CAN communication port, as well as via three LED indicators on the panel. |
||
