40kW Air-Cooled 2.5U Output: 150~1000Vdc

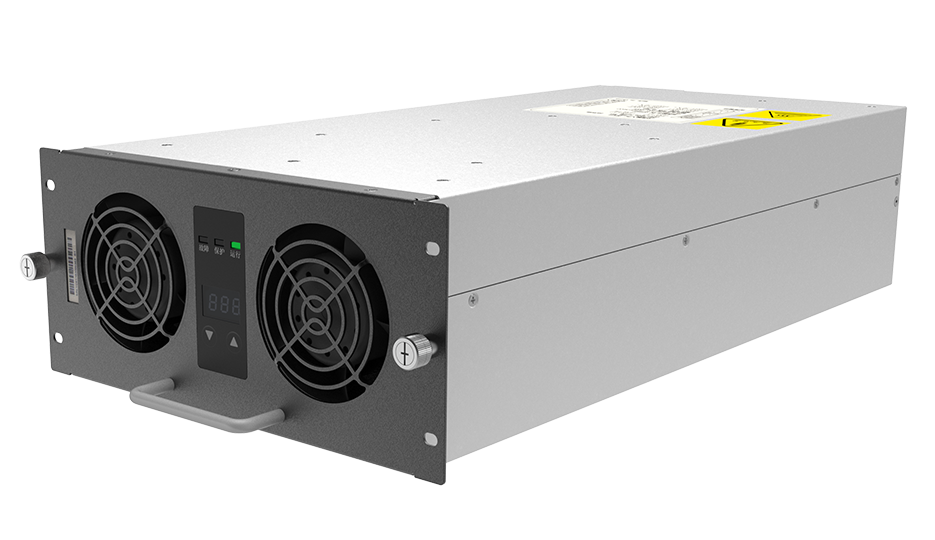

EVR1000-40000D(E)
The EVR1000-40000D is a new-generation 2.5U electric vehicle charging module launched by INCREE. It boasts prominent advantages such as an ultra-wide constant power range (300Vdc - 1000Vdc), a wide operating temperature range, high reliability, high efficiency, a high power factor, and high power density. Combined with low noise and low standby power consumption, it effectively satisfies the charging requirements of various electric vehicles.
Product Features
High Efficiency & Energy SavingUltra-high efficiency: Peak efficiency ≥ 96.5%, reducing charging operation costs.
High power density: Power density up to 59.72W/in³, saving space.
Low standby power consumption: The module features super standby function, directly reducing operation costs.
01
Excellent PerformanceWide constant power range: 300V~1000V, covering all mainstream electric vehicles and meeting fast charging requirements.
Wide output voltage range: 200V~1000V, widely compatible with various vehicle models.
02
Safety & ReliabilityFull potting protection: Adopts full potting technology for excellent heat dissipation, high reliability, long service life, and enhanced environmental protection against salt spray and mold.
Battery anti-reflux protection: Built-in output voltage discharge and battery anti-reflux protection circuits.
03
Wide AdaptabilityEnvironmental adaptation: Wide operating temperature range of -40°C ~ 75°C, suitable for harsh working environments.
Low input harmonics: Stronger adaptability to the power grid.
04
Product Parameters
EVR1000-40000D
General
DC Output
AC Input
Operating Environment
Other Parameters
General
|
Item |
Specification |
|
|
General |
Model |
EVR1000-40000D |
|
Dimensions |
248mm (W) × 110mm (H) × 542.5mm (D) (Excluding handle) |
|
|
Weight |
Approx. 16kg |
|
|
Output Rating |
1000V@40A |
|
|
Output Voltage Range |
200V - 1000V (Constant power: 300V - 1000V, 40kW) |
|
|
Output Current Range |
0A~133.4A (T≤55℃) |
DC Output
|
Item |
Specification |
|
|
DC Output |
Peak-to-Peak Noise |
≤1% |
|
Voltage Regulation Accuracy |
≤±0.5% |
|
|
Current Regulation Accuracy |
≤±1% |
|
|
Current Sharing |
≤±5% |
|
|
Efficiency |
≥96.5% (Peak) |
AC Input
|
Item |
Specification |
|
|
AC Input |
Rated Input Voltage |
3-Phase 380Vac |
|
Input Voltage Range |
320Vac - 480Vac (Full load); |
|
|
Input Current |
＜80A |
|
|
Frequency |
45Hz～65Hz |
|
|
Power Factor (PF) |
≥0.99 |
|
|
Total Harmonic Distortion (THD) |
≤5% |
|
|
Input Protection |
Fuses; Surge Protection Circuit (SPD) |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Coolant Temperature |
-40℃～55℃(Normal); 55℃~75℃(Derating) |
|
Storage Temperature |
-40℃～75℃ |
|
|
Relative Humidity |
0～95% |
|
|
Altitude |
Full load output below 2000m |
Other Parameters
|
Item |
Specification |
|
|
Reliability & Compliance |
Dielectric Strength |
Input-Chassis / Output-Chassis / Input-Output: DC 3535V, 1min
|
|
MTBF |
＞120,000 Hours |
|
|
Safety Standards |
Compliant with IEC61851-1：2019 |
|
|
Communication |
Communication Interface |
CAN |
|
Max. Units in Parallel |
60 units |
|
|
||
|
Alarms and status are reported to the monitoring system via CAN bus, complemented by three LED indicators. |
||
Expand all parameters
Application Scenarios
Expressway Charging Station
Heavy-Duty Truck Charging Station
Urban Fast Charging Station
Expressway Charging Statio
Urban Fast Charging Station
Heavy-Duty Truck Charging Station
