StockCode
300713

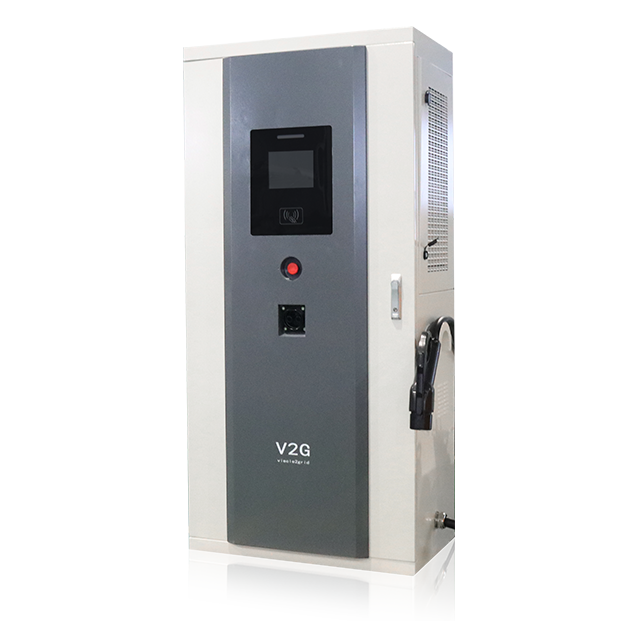

20-60kW Integrated V2G DC Charger
ECAN-20~60A
The ECAN-20~60A floor-mounted integrated V2G EV DC constant power fast charger offers a choice of high-efficiency 20kW/30kW constant power air-cooled charging modules, with a maximum output voltage of up to 750V. It supports back-to-wall installation and is suitable for scenarios such as public operations and highways. The charger easily adapts to the charging requirements of various electric vehicles, ensuring a process that is both rapid and secure.
Product Features
Safety & ReliabilityProtection class IP55: Features dustproof, waterproof, anti-salt spray and anti-rust capabilities, and adapts to an operating environment of -30°C to +70°C (derated output above 55°C).
Multiple electrical protections: Includes over-voltage protection, under-voltage protection, over-current protection, short-circuit protection, Type B residual current protection, grounding protection, over-temperature protection, low-temperature protection, and lightning protection, ensuring a safe charging process.
01
Intelligent InteractionFlexible usage: Supports card swiping, QR code scanning, password entry, and plug-and-charge startup methods to meet commercial operation requirements.
Diverse communication interfaces: Optional 4G, Ethernet, or WIFI modules, supporting remote fault diagnosis, debugging, and OTA upgrades.
02
Intelligent OperationGrid coordination: Supports orderly charging to balance grid load and relieve grid pressure.
Time-of-use metering & energy saving: Supports peak-valley time-of-use metering, allowing users to set charging during low-price periods to reduce costs.
03
Bidirectional Energy InteractionBidirectional charge/discharge control: V2G charging stations break through the traditional unidirectional charging mode. They support electric vehicles to charge during periods of low grid load ("buying electricity") and reversely discharge to the grid during peak hours ("selling electricity"), thus achieving peak shaving and valley filling.
04
Product Parameters
20kW Integrated V2G DC Charger
30kW Integrated V2G DC Charger
40kW Integrated V2G DC Charger
60kW Integrated V2G DC Charger
General
Input Characteristics
Output Specifications
Operating Environment
Other Parameters
General
Input Characteristics
Output Specifications
Operating Environment
Other Parameters
General
Input Characteristics
输出特性
Operating Environment
Other Parameters
General
Input Characteristics
Output Specifications
Operating Environment
Other Parameters
General
|
Item |
Specification |
|
|
General |
Model |
INCEVGD-20 |
|
Cooling Method |
Forced Air Cooling |
|
|
Startup Options |
Password, QR Code, RFID Card, VIN Code, Plug & Charge |
|
|
Dimensions |
850mm（W）*500mm（D）*1800mm（H） |
|
|
Maintenance Access |
Front and Rear Door Maintenance; Supports wall-mounted installation |
Input Characteristics
|
Item |
Specification |
|
|
Input Characteristics |
Input System |
3-Phase 5-Wire |
|
Rated Voltage |
380V士20% |
|
|
Grid Frequency |
45~65Hz |
|
|
Power Factor (PF) |
≥0.99 |
Output Specifications
|
Item |
Specification |
|
|
Output Specifications |
Output Voltage |
DC 150~750V |
|
Output Voltage |
DC 300~750V | |
|
System Efficiency |
≥93%(At half load and above) |
|
|
Auxiliary Power Supply |
Default 12V, optional 24V; supports manual/auto switching |
|
|
Output Channels |
Single gun support |
|
|
Max. Current per Channel |
67 | |
|
Total Max. Current |
67 |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-30℃～+70℃(Derating above 55℃) |
|
Storage Temperature) |
-40℃～+75℃ |
|
|
Operating Humidity |
5%-95%RH, Non-condensing |
|
|
Altitude |
≤2000m (Derating above 2000m) |
|
|
Noise Level |
≤65dB（Measured at 1 meter from the cabinet） |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Protection Functions |
Comprehensive Safety Features: The system includes input over/under voltage protection, output over-voltage/over-current protection, short circuit, and battery reverse polarity protection. It is also equipped with insulation monitoring, door access control, BMS data abnormality detection, and an emergency stop. Advanced safeguards such as electronic lock malfunction, abnormal plug extraction, and lightning protection are standard, with optional tilt and water immersion alarms available. |
|
Enclosure Rating |
IP55 |
|
|
Dust Protection |
G3 Grade Dust Filter |
|
|
Monitoring & Comm. |
BMS Communication |
Compatible with both old and new GB/T standards |
|
Remote Comm. |
thernet, 2G/3G/4G (Free data during warranty), Wi-Fi, Bluetooth |
|
|
HMI |
7-inch color touchscreen (900 nits peak brightness) |
Expand all parameters
General
|
Item |
Specification |
|
|
General |
Model |
INCEVGD-30 |
|
Cooling Method |
Forced Air Cooling |
|
|
Startup Options |
Password, QR Code, RFID Card, VIN Code, Plug & Charge |
|
|
Dimensions |
850mm（W）*500mm（D）*1800mm（H） |
|
|
Maintenance Access |
Front and Rear Door Maintenance; Supports wall-mounted installation |
Input Characteristics
|
Item |
Specification |
|
|
Input Characteristics |
Input System |
3-Phase 5-Wire |
|
Rated Voltage |
380V士20% |
|
|
Grid Frequency |
45~65Hz |
|
|
Power Factor (PF) |
≥0.99 |
Output Specifications
|
Item |
Specification |
|
|
Output Specifications |
Output Voltage |
DC 150~750V |
|
Output Voltage |
DC 300~750V | |
|
System Efficiency |
≥93%(At half load and above) |
|
|
Auxiliary Power Supply |
Default 12V, optional 24V; supports manual/auto switching |
|
|
Output Channels |
Single gun support |
|
|
Max. Current per Channel |
100 | |
|
Total Max. Current |
100 |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-30℃～+70℃(Derating above 55℃) |
|
Storage Temperature) |
-40℃～+75℃ |
|
|
Operating Humidity |
5%-95%RH, Non-condensing |
|
|
Altitude |
≤2000m (Derating above 2000m) |
|
|
Noise Level |
≤65dB（Measured at 1 meter from the cabinet） |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Protection Functions |
Comprehensive Safety Features: The system includes input over/under voltage protection, output over-voltage/over-current protection, short circuit, and battery reverse polarity protection. It is also equipped with insulation monitoring, door access control, BMS data abnormality detection, and an emergency stop. Advanced safeguards such as electronic lock malfunction, abnormal plug extraction, and lightning protection are standard, with optional tilt and water immersion alarms available. |
|
Enclosure Rating |
IP55 |
|
|
Dust Protection |
G3 Grade Dust Filter |
|
|
Monitoring & Comm. |
BMS Communication |
Compatible with both old and new GB/T standards |
|
Remote Comm. |
thernet, 2G/3G/4G (Free data during warranty), Wi-Fi, Bluetooth |
|
|
HMI |
7-inch color touchscreen (900 nits peak brightness) |
Expand all parameters
General
|
Item |
Specification |
|
|
General |
Model |
INCEVGD-40 |
|
Cooling Method |
Forced Air Cooling |
|
|
Startup Options |
Password, QR Code, RFID Card, VIN Code, Plug & Charge |
|
|
Dimensions |
850mm（W）*500mm（D）*1800mm（H） |
|
|
Maintenance Access |
Front and Rear Door Maintenance; Supports wall-mounted installation |
Input Characteristics
|
Item |
Specification |
|
|
Input Characteristics |
Input System |
3-Phase 5-Wire |
|
Rated Voltage |
380V士20% |
|
|
Grid Frequency |
45~65Hz |
|
|
Power Factor (PF) |
≥0.99 |
输出特性
|
Item |
Specification |
|
|
Output Specifications |
Output Voltage |
DC 150~750V |
|
Output Voltage |
DC 300~750V | |
|
System Efficiency |
≥93%(At half load and above) |
|
|
Auxiliary Power Supply |
Default 12V, optional 24V; supports manual/auto switching |
|
|
Output Channels |
Single gun support |
|
|
Max. Current per Channel |
133 | |
|
Total Max. Current |
133 |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-30℃～+70℃(Derating above 55℃) |
|
Storage Temperature) |
-40℃～+75℃ |
|
|
Operating Humidity |
5%-95%RH, Non-condensing |
|
|
Altitude |
≤2000m (Derating above 2000m) |
|
|
Noise Level |
≤65dB（Measured at 1 meter from the cabinet） |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Protection Functions |
Comprehensive Safety Features: The system includes input over/under voltage protection, output over-voltage/over-current protection, short circuit, and battery reverse polarity protection. It is also equipped with insulation monitoring, door access control, BMS data abnormality detection, and an emergency stop. Advanced safeguards such as electronic lock malfunction, abnormal plug extraction, and lightning protection are standard, with optional tilt and water immersion alarms available. |
|
Enclosure Rating |
IP55 |
|
|
Dust Protection |
G3 Grade Dust Filter |
|
|
Monitoring & Comm. |
BMS Communication |
Compatible with both old and new GB/T standards |
|
Remote Comm. |
thernet, 2G/3G/4G (Free data during warranty), Wi-Fi, Bluetooth |
|
|
HMI |
7-inch color touchscreen (900 nits peak brightness) |
Expand all parameters
General
|
Item |
Specification |
|
|
General |
Model |
INCEVGD-60 |
|
Cooling Method |
Forced Air Cooling |
|
|
Startup Options |
Password, QR Code, RFID Card, VIN Code, Plug & Charge |
|
|
Dimensions |
850mm（W）*500mm（D）*1800mm（H） |
|
|
Maintenance Access |
Front and Rear Door Maintenance; Supports wall-mounted installation |
Input Characteristics
|
Item |
Specification |
|
|
Input Characteristics |
Input System |
3-Phase 5-Wire |
|
Rated Voltage |
380V士20% |
|
|
Grid Frequency |
45~65Hz |
|
|
Power Factor (PF) |
≥0.99 |
Output Specifications
|
Item |
Specification |
|
|
Output Specifications |
Output Voltage |
DC 150~750V |
|
Output Voltage |
DC 300~750V | |
|
System Efficiency |
≥93%(At half load and above) |
|
|
Auxiliary Power Supply |
Default 12V, optional 24V; supports manual/auto switching |
|
|
Output Channels |
Single gun support |
|
|
Max. Current per Channel |
200 | |
|
Total Max. Current |
200 |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-30℃～+70℃(Derating above 55℃) |
|
Storage Temperature) |
-40℃～+75℃ |
|
|
Operating Humidity |
5%-95%RH, Non-condensing |
|
|
Altitude |
≤2000m (Derating above 2000m) |
|
|
Noise Level |
≤65dB（Measured at 1 meter from the cabinet） |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Protection Functions |
Comprehensive Safety Features: The system includes input over/under voltage protection, output over-voltage/over-current protection, short circuit, and battery reverse polarity protection. It is also equipped with insulation monitoring, door access control, BMS data abnormality detection, and an emergency stop. Advanced safeguards such as electronic lock malfunction, abnormal plug extraction, and lightning protection are standard, with optional tilt and water immersion alarms available. |
|
Enclosure Rating |
IP55 |
|
|
Dust Protection |
G3 Grade Dust Filter |
|
|
Monitoring & Comm. |
BMS Communication |
Compatible with both old and new GB/T standards |
|
Remote Comm. |
thernet, 2G/3G/4G (Free data during warranty), Wi-Fi, Bluetooth |
|
|
HMI |
7-inch color touchscreen (900 nits peak brightness) |
Expand all parameters
Application Scenarios

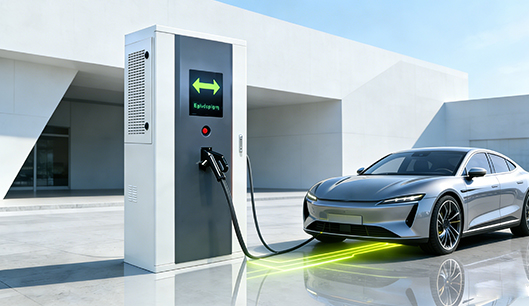

Industrial Park

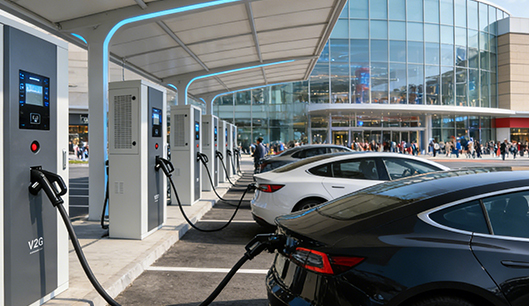

Commercial Real Estate

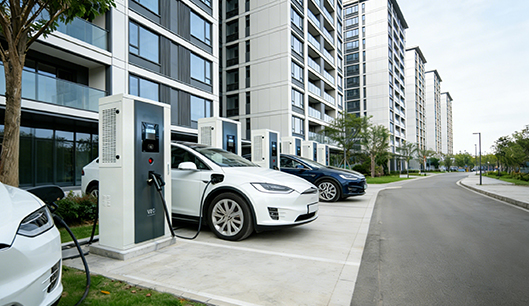

Residential Community
