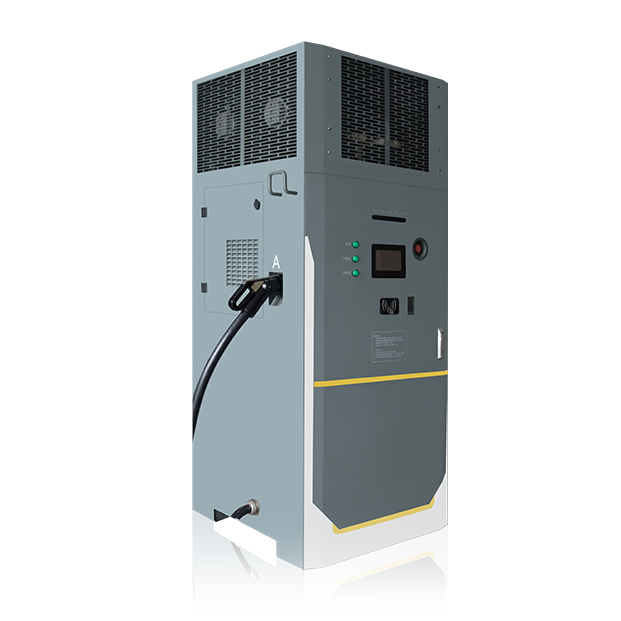

120-180kW Integrated Fully Liquid-cooled DC Charger
ECAN-120~180L
The ECAN-120~180L floor-mounted integrated fully liquid-cooled EV DC constant power fast charger offers a choice of high-efficiency 30kW/40kW constant power liquid-cooled charging modules, with a maximum output voltage of up to 1000V. It supports back-to-wall installation and is suitable for scenarios such as public operations, highways, heavy-duty trucks, public transit, mining, and coastal areas. The charger easily adapts to the charging requirements of various electric vehicles, ensuring a process that is both rapid and secure.
Product Features
Safety & ReliabilityIP65 for power distribution cabinet and IP54 for heat exchange cabin: Features dustproof, waterproof, anti-salt spray and anti-rust capabilities, and adapts to an operating environment of -30°C to +70°C (derated output above 55°C).
Multiple electrical protections: Includes input over-voltage protection, output over-voltage protection, output over-current protection, short-circuit protection, battery reverse connection protection, insulation protection, door access protection, BMS data abnormality protection, emergency stop protection, and electromagnetic lock abnormality protection, ensuring a safe charging process.
01
Intelligent InteractionFlexible usage: Supports card swiping, QR code scanning, password entry, and plug-and-charge startup methods to meet commercial operation requirements.
Diverse communication interfaces: Optional 4G, Ethernet, or WIFI modules, supporting remote fault diagnosis, debugging, and OTA upgrades.
02
Intelligent OperationGrid coordination: Supports orderly charging to balance grid load and relieve grid pressure.
Time-of-use metering & energy saving: Supports peak-valley time-of-use metering, allowing users to set charging during low-price periods to reduce costs.
03
Energy Saving & Environmental ProtectionUltra-low power consumption: Low system standby power consumption, with the whole machine standby power consumption ≤50W.
04
Product Parameters
120kW Integrated Fully Liquid-cooled DC Charger
180kW Integrated Fully Liquid-cooled DC Charger
General
Input Characteristics
Output Specifications
Operating Environment
Other Parameters
General
Input Characteristics
Output Specifications
Operating Environment
Other Parameters
General
|
Item |
Specification |
|
|
General |
Model |
INCEVD-120L |
|
Cooling Method |
Liquid Cooling |
|
|
Startup Options |
Password, QR Code, RFID Card, VIN Code, Plug & Charge |
|
|
Dimensions |
850mm（W）* 900mm（D）* 2000mm（H） |
|
|
Maintenance Access |
Front and Rear Door Maintenance; Supports wall-mounted installation |
Input Characteristics
|
Item |
Specification |
|
|
Input Characteristics |
Input System |
3-Phase 5-Wire |
|
Rated Voltage |
380V士20% |
|
|
Grid Frequency |
45~65Hz |
|
|
Power Factor (PF) |
≥0.99 |
|
|
Total Harmonic Distortion (THD) |
≤5% |
Output Specifications
|
Item |
Specification |
|
|
Output Specifications |
Output Voltage |
DC 200~1000V |
|
Output Voltage |
DC 300~1000V | |
|
System Efficiency |
≥96%(At half load and above) |
|
|
Auxiliary Power Supply |
Default 12V, optional 24V; supports manual/auto switching |
|
|
Intelligent Power Allocation |
Dynamic Distribution on Demand |
|
|
Standby Power Consumption |
≤50W |
|
|
Output Channels |
Single/Dual-gun support |
|
|
Max. Current per Channel |
400 | |
|
Total Max. Current |
400 |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-30℃～+70℃(Derating above 55℃) |
|
Storage Temperature) |
-40℃～+75℃ |
|
|
Operating Humidity |
5%-95%RH, Non-condensing |
|
|
Altitude |
≤2000m (Derating above 2000m) |
|
|
Noise Level |
≤65dB（Measured at 1 meter from the cabinet） |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Protection Functions |
The system includes input over/under voltage protection, output over-voltage/over-current protection, short circuit, and battery reverse polarity protection. It is also equipped with insulation monitoring, door access control, BMS data abnormality detection, and an emergency stop. Advanced safeguards such as electronic lock malfunction, abnormal plug extraction, and lightning protection are standard, with optional tilt and water immersion alarms available. |
|
Enclosure Rating |
IP65 for Power Distribution Chamber; IP54 for Heat Exchange Chamber |
|
|
Dust Protection |
G3 Grade Dust Filter |
|
|
Monitoring & Comm. |
BMS Communication |
Compatible with both old and new GB/T standards |
|
Remote Comm. |
thernet, 4G (Free data during warranty), Wi-Fi, Bluetooth |
|
|
HMI |
7-inch color touchscreen (900 nits peak brightness) |
Expand all parameters
General
|
Item |
Specification |
|
|
General |
Model |
INCEVD-180L |
|
Cooling Method |
Liquid Cooling |
|
|
Startup Options |
Password, QR Code, RFID Card, VIN Code, Plug & Charge |
|
|
Dimensions |
850mm（W）* 900mm（D）* 2000mm（H） |
|
|
Maintenance Access |
Front and Rear Door Maintenance; Supports wall-mounted installation |
Input Characteristics
|
Item |
Specification |
|
|
Input Characteristics |
Input System |
3-Phase 5-Wire |
|
Rated Voltage |
380V士20% |
|
|
Grid Frequency |
45~65Hz |
|
|
Power Factor (PF) |
≥0.99 |
|
|
Total Harmonic Distortion (THD) |
≤5% |
Output Specifications
|
Item |
Specification |
|
|
Output Specifications |
Output Voltage |
DC 200~1000V |
|
Output Voltage |
DC 300~1000V | |
|
System Efficiency |
≥96%(At half load and above) |
|
|
Auxiliary Power Supply |
Default 12V, optional 24V; supports manual/auto switching |
|
|
Intelligent Power Allocation |
Dynamic Distribution on Demand |
|
|
Standby Power Consumption |
≤50W |
|
|
Output Channels |
Single/Dual-gun support |
|
|
Max. Current per Channel |
600 | |
|
Total Max. Current |
600 |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-30℃～+70℃(Derating above 55℃) |
|
Storage Temperature) |
-40℃～+75℃ |
|
|
Operating Humidity |
5%-95%RH, Non-condensing |
|
|
Altitude |
≤2000m (Derating above 2000m) |
|
|
Noise Level |
≤65dB（Measured at 1 meter from the cabinet） |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Protection Functions |
The system includes input over/under voltage protection, output over-voltage/over-current protection, short circuit, and battery reverse polarity protection. It is also equipped with insulation monitoring, door access control, BMS data abnormality detection, and an emergency stop. Advanced safeguards such as electronic lock malfunction, abnormal plug extraction, and lightning protection are standard, with optional tilt and water immersion alarms available. |
|
Enclosure Rating |
IP65 for Power Distribution Chamber; IP54 for Heat Exchange Chamber |
|
|
Dust Protection |
G3 Grade Dust Filter |
|
|
Monitoring & Comm. |
BMS Communication |
Compatible with both old and new GB/T standards |
|
Remote Comm. |
thernet, 4G (Free data during warranty), Wi-Fi, Bluetooth |
|
|
HMI |
7-inch color touchscreen (900 nits peak brightness) |
Expand all parameters

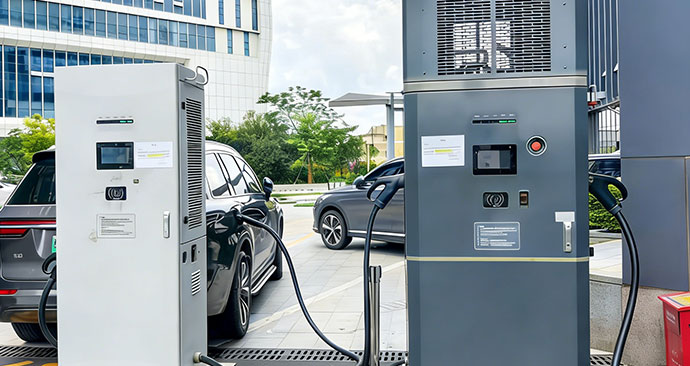

Application Scenarios
