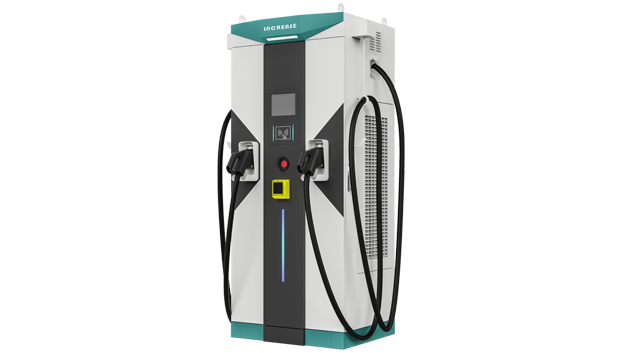

180-400kW DC charger
Increase 's own EMC LVD laboratory ensures that every product strictly complies with the standards and requirements of various countries around the world. It independently develops and manufactures controllers and power modules, and OCPP is internationally certified. This product uses a high-efficiency 30kW/40kW constant power charging module with a maximum output voltage of up to 1000V, a charging efficiency of over 96%, supports zero standby power, and supports wall mounting. It is suitable for public parking spaces, highways, and other similar locations, easily adapting to the charging needs of various electric vehicles, ensuring a fast and safe charging process.
Product Features
Safety & ReliabilityProtection class IP55: Features dustproof, waterproof, anti-salt spray and anti-rust capabilities, and adapts to an operating environment of -30°C to +70°C (derated output above 55°C).
Multiple electrical protections: Includes input over-voltage protection, output over-voltage protection, output over-current protection, short-circuit protection, battery reverse connection protection, insulation protection, door access protection, BMS data abnormality protection, emergency stop protection, and electromagnetic lock abnormality protection, ensuring a safe charging process.
01
Intelligent InteractionFlexible usage: Supports card swiping, QR code scanning, password entry, and plug-and-charge startup methods to meet commercial operation requirements.
Diverse communication interfaces: Optional 4G, Ethernet, or WIFI modules, supporting remote fault diagnosis, debugging, and OTA upgrades.
02
Intelligent OperationGrid coordination: Supports orderly charging to balance grid load and relieve grid pressure.
Time-of-use metering & energy saving: Supports peak-valley time-of-use metering, allowing users to set charging during low-price periods to reduce costs.
03
Energy Saving & Environmental ProtectionUltra-low power consumption: Low system standby power consumption, with the whole machine standby power consumption ≤ 20W.
04
Product Parameters
180kW
240kW
320kW
360kW
400kW
General
Input Parameters
Output Parameters
Operating Environment
Other Parameters
General
Input Parameters
Output Specifications
Operating Environment
Other Parameters
General
Input Parameters
Output Parameters
Operating Environment
Other Parameters
General
Input Parameters
Output Parameters
Operating Environment
Other Parameters
General
Input Parameters
Output Parameters
Operating Environment
Other Parameters
General
|
Item |
Specification |
|
|
General |
System Power |
180kW |
|
Dimensions(W×D×H) |
850*850*2000mm |
|
|
Weight (kg) |
360kg |
|
|
Startup Method |
Password, QR code scanning, IC card, credit card, bank card, Etc |
|
|
Maintenance and installation |
Front access door maintenance, supports close-to-wall installation |
|
|
Certification mark |
CE UL |
Input Parameters
|
Item |
Specification |
|
|
Input Parameters |
Input System |
Three-phase five-wire system(3P+N+PE) |
|
Rated Voltage |
400VAC±10% |
|
|
Grid Frequency |
45~65Hz |
|
|
Power Factor |
≥0.99 |
Output Parameters
|
Item |
Specification |
|
|
Output Parameters |
Output Voltage |
DC 200~1000V |
| System Efficiency | ≥96% | |
| Output Channels | Supports single and double guns configurations | |
| Charging Interfaces | CCS1+CCS1、CCS1+CCS2、CCS2+CCS2、CCS1+GB/T、 CCS2+GB/TCCS1+GB/T、CCS2+GB/T | |
| Gun Cable Length | 5m(Length: Customizable) | |
| Maximum Output Current per Channel(A) | 250/300 | |
| Maximum Output Current of the Whole(A) | 500/600 |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-30℃~+70℃(derated output above 55℃) |
|
Storage Temperature) |
-40℃~+75℃ |
|
|
Operating Humidity |
5%-95%,no condensation |
|
|
Altitude |
≤2000m,output derated above 2000m |
|
|
Noise |
≤65dB(1m away from the cabinet) |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Protection Functions |
Input over-voltage and under-voltage protection, output over-voltage protection, output over current protection, short-circuit protection, battery reverse connection protection, insulation protection, access control protection, BMS data anomaly protection, emergency stop protection, electromagnetic lock anomaly protection, abnormal gun disconnection protection, lightning protection, tilt alarm protection (optional),water immersion alarm protection(optional) |
|
Protection Class |
IP55 |
|
|
Monitoring Communication |
OCPP |
OCPP1.6Jor OCPP2.0 |
|
Remote Communication |
Ethernet,4G modules |
|
|
HMI |
10.1-inch color high-definition touchscreen |
|
|
Vehicle-Charger |
PLC(DIN70121、IS015118) |
Expand all parameters
General
|
Item |
Specification |
|
|
General |
System Power |
180kW |
|
Dimensions(W×D×H) |
850*850*2000mm |
|
|
Weight (kg) |
420kg |
|
|
Startup Method |
Password, QR code scanning, IC card, credit card, bank card, Etc |
|
|
Maintenance and installation |
Front access door maintenance, supports close-to-wall installation |
|
|
Certification mark |
CE UL |
Input Parameters
|
Item |
Specification |
|
|
Input Parameters |
Input System |
Three-phase five-wire system(3P+N+PE) |
|
Rated Voltage |
400VAC±10% |
|
|
Grid Frequency |
45~65Hz |
|
|
Power Factor |
≥0.99 |
Output Specifications
|
Item |
Specification |
|
|
Output Parameters |
Output Voltage |
DC 200~1000V |
| System Efficiency | ≥96% | |
| Output Channels | Supports single and double guns configurations | |
| Charging Interfaces | CCS1+CCS1、CCS1+CCS2、CCS2+CCS2、CCS1+GB/T、 CCS2+GB/TCCS1+GB/T、CCS2+GB/T | |
| Gun Cable Length | 5m(Length: Customizable) | |
| Maximum Output Current per Channel(A) | 250/300 | |
| Maximum Output Current of the Whole(A) | 500/600 |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-30℃~+70℃(derated output above 55℃) |
|
Storage Temperature) |
-40℃~+75℃ |
|
|
Operating Humidity |
5%-95%,no condensation |
|
|
Altitude |
≤2000m,output derated above 2000m |
|
|
Noise |
≤65dB(1m away from the cabinet) |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Protection Functions |
Input over-voltage and under-voltage protection, output over-voltage protection, output over current protection, short-circuit protection, battery reverse connection protection, insulation protection, access control protection, BMS data anomaly protection, emergency stop protection, electromagnetic lock anomaly protection, abnormal gun disconnection protection, lightning protection, tilt alarm protection (optional),water immersion alarm protection(optional) |
|
Protection Class |
IP55 |
|
|
Monitoring Communication |
OCPP |
OCPP1.6Jor OCPP2.0 |
|
Remote Communication |
Ethernet,4G modules |
|
|
HMI |
10.1-inch color high-definition touchscreen |
|
|
Vehicle-Charger |
PLC(DIN70121、IS015118) |
Expand all parameters
General
|
Item |
Specification |
|
|
General |
System Power |
320kW |
|
Dimensions(W×D×H) |
850*850*2000mm |
|
|
Weight (kg) |
480kg |
|
|
Startup Method |
Password, QR code scanning, IC card, credit card, bank card, Etc |
|
|
Maintenance and installation |
Front access door maintenance, supports close-to-wall installation |
|
|
Certification mark |
CE UL |
Input Parameters
|
Item |
Specification |
|
|
Input Parameters |
Input System |
Three-phase five-wire system(3P+N+PE) |
|
Rated Voltage |
400VAC±10% |
|
|
Grid Frequency |
45~65Hz |
|
|
Power Factor |
≥0.99 |
Output Parameters
|
Item |
Specification |
|
|
Output Parameters |
Output Voltage |
DC 200~1000V |
| System Efficiency | ≥96% | |
| Output Channels | Supports single and double guns configurations | |
| Charging Interfaces | CCS1+CCS1、CCS1+CCS2、CCS2+CCS2、CCS1+GB/T、 CCS2+GB/TCCS1+GB/T、CCS2+GB/T | |
| Gun Cable Length | 5m(Length: Customizable) | |
| Maximum Output Current per Channel(A) | 250/300 | |
| Maximum Output Current of the Whole(A) | 500/600 |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-30℃~+70℃(derated output above 55℃) |
|
Storage Temperature) |
-40℃~+75℃ |
|
|
Operating Humidity |
5%-95%,no condensation |
|
|
Altitude |
≤2000m,output derated above 2000m |
|
|
Noise |
≤65dB(1m away from the cabinet) |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Protection Functions |
Input over-voltage and under-voltage protection, output over-voltage protection, output over current protection, short-circuit protection, battery reverse connection protection, insulation protection, access control protection, BMS data anomaly protection, emergency stop protection, electromagnetic lock anomaly protection, abnormal gun disconnection protection, lightning protection, tilt alarm protection (optional),water immersion alarm protection(optional) |
|
Protection Class |
IP55 |
|
|
Monitoring Communication |
OCPP |
OCPP1.6Jor OCPP2.0 |
|
Remote Communication |
Ethernet,4G modules |
|
|
HMI |
10.1-inch color high-definition touchscreen |
|
|
Vehicle-Charger |
PLC(DIN70121、IS015118) |
Expand all parameters
General
|
Item |
Specification |
|
|
General |
System Power |
360kW |
|
Dimensions(W×D×H) |
850*850*2000mm |
|
|
Weight (kg) |
500kg |
|
|
Startup Method |
Password, QR code scanning, IC card, credit card, bank card, Etc |
|
|
Maintenance and installation |
Front access door maintenance, supports close-to-wall installation |
|
|
Certification mark |
CE UL |
Input Parameters
|
Item |
Specification |
|
|
Input Parameters |
Input System |
Three-phase five-wire system(3P+N+PE) |
|
Rated Voltage |
400VAC±10% |
|
|
Grid Frequency |
45~65Hz |
|
|
Power Factor |
≥0.99 |
Output Parameters
|
Item |
Specification |
|
|
Output Parameters |
Output Voltage |
DC 200~1000V |
| System Efficiency | ≥96% | |
| Output Channels | Supports single and double guns configurations | |
| Charging Interfaces | CCS1+CCS1、CCS1+CCS2、CCS2+CCS2、CCS1+GB/T、 CCS2+GB/TCCS1+GB/T、CCS2+GB/T | |
| Gun Cable Length | 5m(Length: Customizable) | |
| Maximum Output Current per Channel(A) | 250/300 | |
| Maximum Output Current of the Whole(A) | 500/600 |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-30℃~+70℃(derated output above 55℃) |
|
Storage Temperature) |
-40℃~+75℃ |
|
|
Operating Humidity |
5%-95%,no condensation |
|
|
Altitude |
≤2000m,output derated above 2000m |
|
|
Noise |
≤65dB(1m away from the cabinet) |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Protection Functions |
Input over-voltage and under-voltage protection, output over-voltage protection, output over current protection, short-circuit protection, battery reverse connection protection, insulation protection, access control protection, BMS data anomaly protection, emergency stop protection, electromagnetic lock anomaly protection, abnormal gun disconnection protection, lightning protection, tilt alarm protection (optional),water immersion alarm protection(optional) |
|
Protection Class |
IP55 |
|
|
Monitoring Communication |
OCPP |
OCPP1.6Jor OCPP2.0 |
|
Remote Communication |
Ethernet,4G modules |
|
|
HMI |
10.1-inch color high-definition touchscreen |
|
|
Vehicle-Charger |
PLC(DIN70121、IS015118) |
Expand all parameters
General
|
Item |
Specification |
|
|
General |
System Power |
400kW |
|
Dimensions(W×D×H) |
850*850*2000mm |
|
|
Weight (kg) |
520kg |
|
|
Startup Method |
Password, QR code scanning, IC card, credit card, bank card, Etc |
|
|
Maintenance and installation |
Front access door maintenance, supports close-to-wall installation |
|
|
Certification mark |
CE UL |
Input Parameters
|
Item |
Specification |
|
|
Input Parameters |
Input System |
Three-phase five-wire system(3P+N+PE) |
|
Rated Voltage |
400VAC±10% |
|
|
Grid Frequency |
45~65Hz |
|
|
Power Factor |
≥0.99 |
Output Parameters
|
Item |
Specification |
|
|
Output Parameters |
Output Voltage |
DC 200~1000V |
| System Efficiency | ≥96% | |
| Output Channels | Supports single and double guns configurations | |
| Charging Interfaces | CCS1+CCS1、CCS1+CCS2、CCS2+CCS2、CCS1+GB/T、 CCS2+GB/TCCS1+GB/T、CCS2+GB/T | |
| Gun Cable Length | 5m(Length: Customizable) | |
| Maximum Output Current per Channel(A) | 250/300 | |
| Maximum Output Current of the Whole(A) | 500/600 |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-30℃~+70℃(derated output above 55℃) |
|
Storage Temperature) |
-40℃~+75℃ |
|
|
Operating Humidity |
5%-95%,no condensation |
|
|
Altitude |
≤2000m,output derated above 2000m |
|
|
Noise |
≤65dB(1m away from the cabinet) |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Protection Functions |
Input over-voltage and under-voltage protection, output over-voltage protection, output over current protection, short-circuit protection, battery reverse connection protection, insulation protection, access control protection, BMS data anomaly protection, emergency stop protection, electromagnetic lock anomaly protection, abnormal gun disconnection protection, lightning protection, tilt alarm protection (optional),water immersion alarm protection(optional) |
|
Protection Class |
IP55 |
|
|
Monitoring Communication |
OCPP |
OCPP1.6Jor OCPP2.0 |
|
Remote Communication |
Ethernet,4G modules |
|
|
HMI |
10.1-inch color high-definition touchscreen |
|
|
Vehicle-Charger |
PLC(DIN70121、IS015118) |
Expand all parameters
Application Scenarios

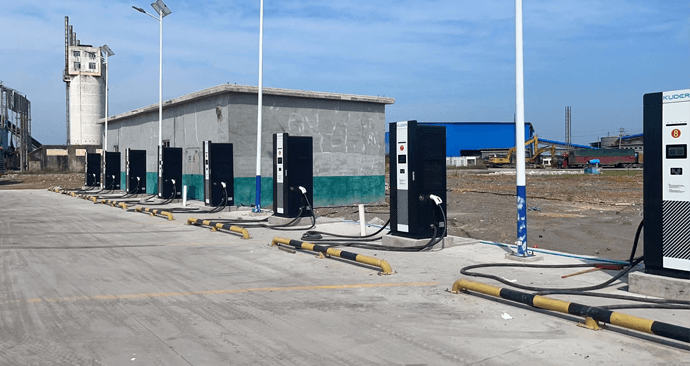

Guangxi Mining and Metallurgical Raw Material Charging Station - 320kW Outdoor Dual-Gun DC Integrated Charger
