AC Charging Solution
INCEVA-7A/INCEVA-11T/INCEVA-21T

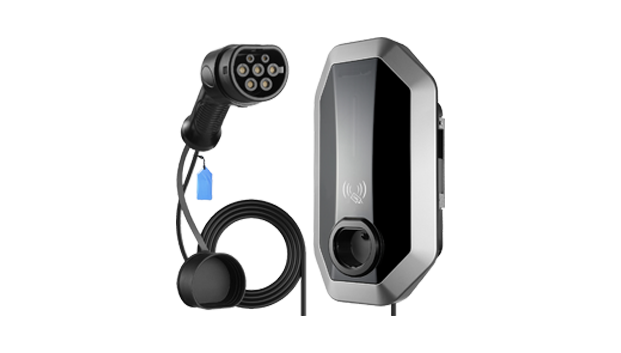

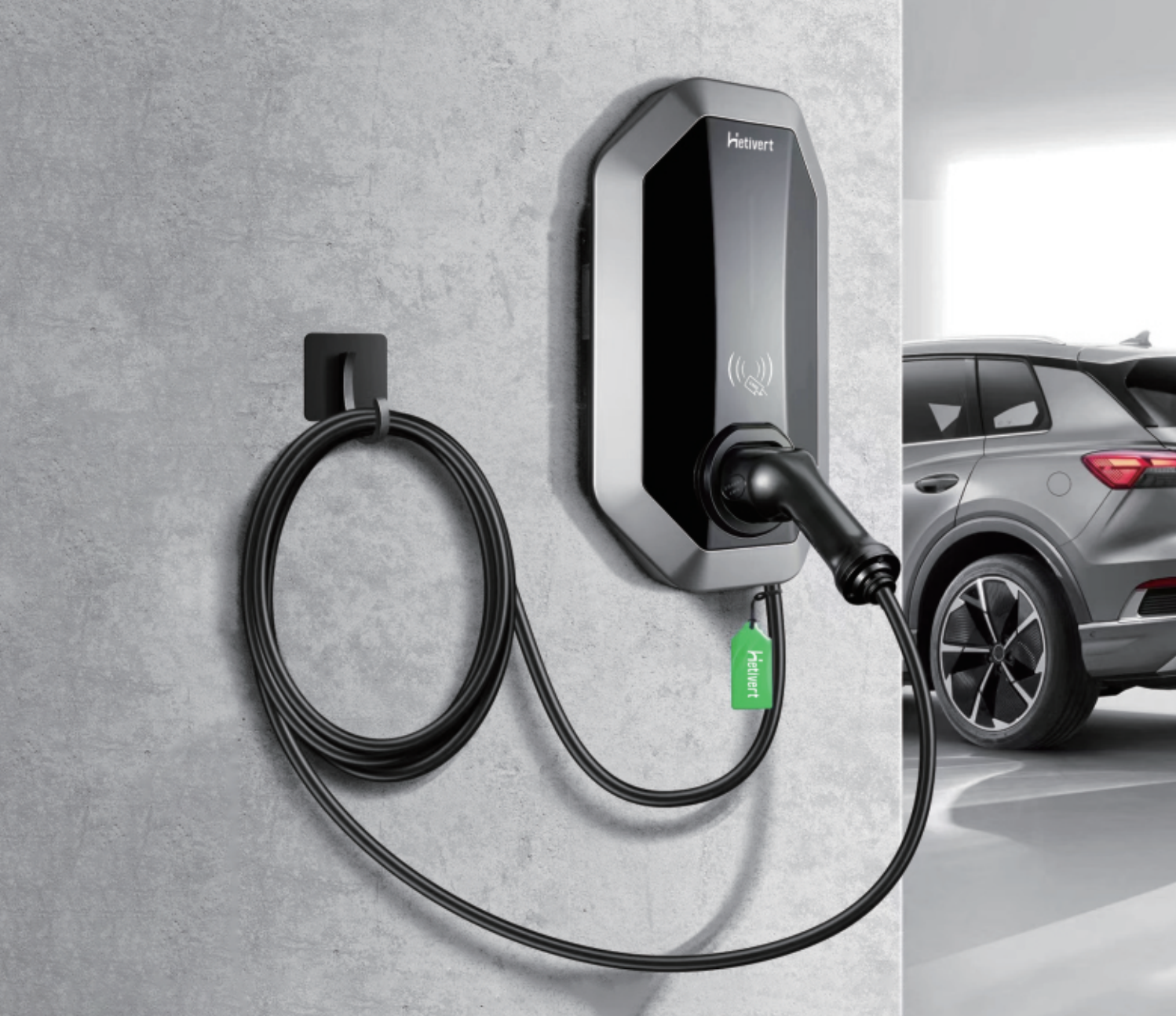

Increase 's independently developed and manufactured AC charging piles feature a diamond-like streamlined design, ranging from 7-22KW. They utilize proprietary molds, integrating functionality and aesthetics, and are characterized by their small size, light weight, high charging efficiency, small footprint, and stylish appearance. Suitable for residential communities, shopping malls, and other similar settings.
Product Features
Safety & ReliabilityProtection class IP55: Features dustproof, waterproof, anti-salt spray and anti-rust capabilities, and adapts to an operating environment of -30°C to +70°C (derated output above 55°C).
Multiple electrical protections: Includes over-voltage protection, under-voltage protection, over-current protection, short-circuit protection, Type B residual current protection, grounding protection, over-temperature protection, low-temperature protection, and lightning protection, ensuring a safe charging process.
01
Intelligent InteractionFlexible usage: Supports card swiping, QR code scanning, password entry, and plug-and-charge startup methods to meet commercial operation requirements.
Diverse communication interfaces: Optional 4G, Ethernet, or WIFI modules, supporting remote fault diagnosis, debugging, and OTA upgrades.
02
Intelligent OperationGrid coordination: Supports orderly charging to balance grid load and relieve grid pressure.
Time-of-use metering & energy saving: Supports peak-valley time-of-use metering, allowing users to set charging during low-price periods to reduce costs.
03
Bidirectional Energy InteractionBidirectional charge/discharge control: V2G charging stations break through the traditional unidirectional charging mode. They support electric vehicles to charge during periods of low grid load ("buying electricity") and reversely discharge to the grid during peak hours ("selling electricity"), thus achieving peak shaving and valley filling.
04
Product Parameters
ECAN-7A
ECAN-11T
ECAN-21T
General
AC Input
AC Output
Operating Environment
Other Parameters
General
AC Input
AC Output
Operating Environment
Other Parameters
General
AC Input
AC Output
Operating Environment
Other Parameters
General
|
Item |
Specification |
|
|
General |
Model |
ECAN-7A |
|
Cooling Method |
Natural air cooling |
|
|
Starting Method |
Password, QR Code Scan, Card Swiping, Plug and Charge |
|
|
Dimensions |
250mm (W) × 131mm (D) × 445mm (H) |
|
|
Maintenance Method |
Supports wall mounting |
AC Input
|
Item |
Specification |
|
|
AC Input |
Input System |
Single-phase three-wire system |
|
Rated Voltage |
220Vac |
|
|
Grid Frequency |
50Hz |
AC Output
|
Item |
Specification |
|
|
AC Output |
Output Voltage |
220Vac |
|
Standby Power Consumption |
≤6W | |
|
Number of Output Channels |
Single gun |
|
|
Auxiliary Power Supply |
Default 12V, optional 24V; supports manual/auto switching |
|
|
Output Channels |
Single gun support |
|
|
Maximum Output Current per Channel(A) |
32 |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-30℃ ~ +70℃(derating output above 55℃) |
|
Storage Temperature |
-40℃~+55℃(derating output above 55℃) |
|
|
Operating Humidity |
5%-95%，non-condensing |
|
|
Altitude |
≤2000 meters, derating output above 2000 meters |
Other Parameters
|
Item |
Specification |
|
|
Other Parameters |
Protection Functions |
Overvoltage protection, undervoltage protection, overcurrent protection, short circuit protection, Type B leakage protection, grounding protection, over-temperature protection, low-temperature protection, lightning protection, etc. |
|
Protection Rating |
IP55 |
|
|
Remote Communication |
Ethernet, 4G module (free data is provided during the warranty period), Wi-Fi, Bluetooth |
Expand all parameters
General
|
Item |
Specification |
|
|
General |
Model |
ECAN-11T |
|
Cooling Method |
Natural air cooling |
|
|
Starting Method |
Password, QR Code Scan, Card Swiping, Plug and Charge |
|
|
Dimensions |
250mm (W) × 131mm (D) × 445mm (H) |
|
|
Maintenance Method |
Supports wall mounting |
AC Input
|
Item |
Specification |
|
|
AC Input |
Input System |
Three-phase five-wire system |
|
Rated Voltage |
380Vac |
|
|
Grid Frequency |
50Hz |
AC Output
|
Item |
Specification |
|
|
AC Output |
Output Voltage |
380Vac |
|
Standby Power Consumption |
≤6W | |
|
Number of Output Channels |
Single gun |
|
|
Auxiliary Power Supply |
Default 12V, optional 24V; supports manual/auto switching |
|
|
Output Channels |
Single gun support |
|
|
Maximum Output Current per Channel(A) |
16 |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-30℃ ~ +70℃(derating output above 55℃) |
|
Storage Temperature |
-40℃~+55℃(derating output above 55℃) |
|
|
Operating Humidity |
5%-95%，non-condensing |
|
|
Altitude |
≤2000 meters, derating output above 2000 meters |
Other Parameters
|
Item |
Specification |
|
|
Other Parameters |
Protection Functions |
Overvoltage protection, undervoltage protection, overcurrent protection, short circuit protection, Type B leakage protection, grounding protection, over-temperature protection, low-temperature protection, lightning protection, etc. |
|
Protection Rating |
IP55 |
|
|
Remote Communication |
Ethernet, 4G module (free data is provided during the warranty period), Wi-Fi, Bluetooth |
Expand all parameters
General
|
Item |
Specification |
|
|
General |
Model |
ECAN-21T |
|
Cooling Method |
Natural air cooling |
|
|
Starting Method |
Password, QR Code Scan, Card Swiping, Plug and Charge |
|
|
Dimensions |
250mm (W) × 131mm (D) × 445mm (H) |
|
|
Maintenance Method |
Supports wall mounting |
AC Input
|
Item |
Specification |
|
|
AC Input |
Input System |
Three-phase five-wire system |
|
Rated Voltage |
380Vac |
|
|
Grid Frequency |
50Hz |
AC Output
|
Item |
Specification |
|
|
AC Output |
Output Voltage |
380Vac |
|
Standby Power Consumption |
≤6W | |
|
Number of Output Channels |
Single gun |
|
|
Auxiliary Power Supply |
Default 12V, optional 24V; supports manual/auto switching |
|
|
Output Channels |
Single gun support |
|
|
Maximum Output Current per Channel(A) |
32 |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-30℃ ~ +70℃(derating output above 55℃) |
|
Storage Temperature |
-40℃~+55℃(derating output above 55℃) |
|
|
Operating Humidity |
5%-95%，non-condensing |
|
|
Altitude |
≤2000 meters, derating output above 2000 meters |
Other Parameters
|
Item |
Specification |
|
|
Other Parameters |
Protection Functions |
Overvoltage protection, undervoltage protection, overcurrent protection, short circuit protection, Type B leakage protection, grounding protection, over-temperature protection, low-temperature protection, lightning protection, etc. |
|
Protection Rating |
IP55 |
|
|
Remote Communication |
Ethernet, 4G module (free data is provided during the warranty period), Wi-Fi, Bluetooth |
