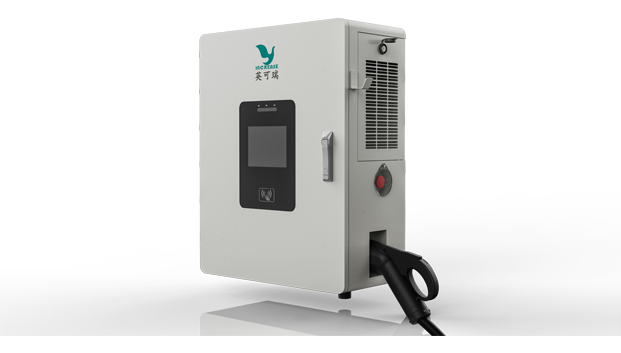

20-40kW wall-mounted DC charger
Increase 's own EMC LVD laboratory ensures that every product strictly complies with the standards and requirements of various countries worldwide. We independently develop and manufacture controllers and power modules, and our products are OCPP certified internationally. This product uses a high-efficiency 20~40kW constant power charging module with a maximum output voltage of up to 1000V and a charging efficiency greater than 96%. Wall-mounted installation is suitable for confined spaces such as public buildings and supermarkets, easily adapting to the charging needs of various electric vehicles.
Product Features
Safety & ReliabilityProtection class IP55: Features dustproof, waterproof, anti-salt spray and anti-rust capabilities, and adapts to an operating environment of -30°C to +70°C (derated output above 55°C).
Multiple electrical protections: Includes input over-voltage protection, output over-voltage protection, output over-current protection, short-circuit protection, battery reverse connection protection, insulation protection, door access protection, BMS data abnormality protection, emergency stop protection, and electromagnetic lock abnormality protection, ensuring a safe charging process.
01
Intelligent InteractionFlexible usage: Supports card swiping, QR code scanning, password entry, and plug-and-charge startup methods to meet commercial operation requirements.
Diverse communication interfaces: Optional 4G, Ethernet, or WIFI modules, supporting remote fault diagnosis, debugging, and OTA upgrades.
02
Intelligent OperationGrid coordination: Supports orderly charging to balance grid load and relieve grid pressure.
Time-of-use metering & energy saving: Supports peak-valley time-of-use metering, allowing users to set charging during low-price periods to reduce costs.
03
Energy Saving & Environmental ProtectionUltra-low power consumption: Low system standby power consumption, with the whole machine standby power consumption ≤ 20W.
04
Product Parameters
20kW
30kW
40kW
General
Input Characteristics
Output Parameters
Operating Environment
Other Parameters
General
Input Characteristics
Output Parameters
Operating Environment
Other Parameters
General
Input Characteristics
Output Parameters
Operating Environment
Other Parameters
General
|
Item |
Specification |
|
| General |
System Power |
20kW |
| Dimensions (W×DXH) | 600*300*800mm | |
| Weight (kg) | 60kg | |
| Maintenance and installation | Front access door maintenance,supports close-to-wall installation | |
| Certification Mark | CE | |
| Startup Method | Password,QR Code Scanning.IC Card,Credit Card,Bank Card,Etc. |
Input Characteristics
|
Item |
Specification |
|
| Input Characteristics | Input System | Three-phase five-wire system(3P+N+PE) |
| Rated Voltage | 400VAC±10% | |
| Grid Frequency | 45~65Hz | |
| Power Factor (PF) | ≥0.99 |
Output Parameters
|
Item |
Specification |
|
| Output Parameters | Output Voltage | DC 200～1000V |
| Constant Power Range | DC 300～1000V | |
| System Efficiency | ≥96% | |
| Output Channels | single | |
| Charging Interfaces | CCS2 | |
| Gun Cable Length | 5m(Length:Customizable) | |
| Maximum Output Current | 67 | |
| Maximum Output Current | 67 |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature | -30℃~+70℃(derated output above 55℃) |
| Storage Temperature) | -40℃~+75℃ | |
| Operating Humidity | 5%-95%,no condensation | |
| Altitude | ≤2000m,output derated above 2000m | |
| Noise | ≤65dB(1m away from the cabinet) |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Protection Functions |
Protection Functions:lnput over-voltage and under-voltage protection, Output over-voltage protection,Output over-current protection,Short-circuit protection,Battery reverse connection protection,Insulation protection. Access control protection,BMS data anomaly protection,Emergency stop protection,Electromagnetic lock anomaly protection,Abnormal gun disconnection protection,Lightning protection,Tilt alarm protection (option),Water immersion alarm protection (optional) |
|
Protection Class |
IP55 |
|
|
Dust Protection |
G3-level dust fiter |
|
|
Monitoring Communication |
OCPP |
OCPP 1.6J or OCPP2.0 |
|
Remote Communication |
Ethernet,4G modules |
|
|
Human-Machine Interaction |
10.1-inch color high-definition touchscreen |
|
|
Vehicle-Charger |
PLC(DIN70121、ISO 15118) |
