60-160kW DC charger
ncrease 's own EMC LVD laboratory ensures that every product strictly complies with the standards and requirements of various countries around the world. It independently develops and manufactures controllers and power modules, and OCPP is internationally certified. This product uses a high-efficiency 30kW/40kW constant power charging module with a maximum output voltage of up to 1000V, a charging efficiency of over 96%, supports zero standby power, and supports wall mounting. It is suitable for public parking spaces, highways, and other similar locations, easily adapting to the charging needs of various electric vehicles, ensuring a fast and safe charging process.
Product Features
Safety & ReliabilityProtection class IP55: Features dustproof, waterproof, anti-salt spray and anti-rust capabilities, and adapts to an operating environment of -30°C to +70°C (derated output above 55°C).
Multiple electrical protections: Includes input over-voltage protection, output over-voltage protection, output over-current protection, short-circuit protection, battery reverse connection protection, insulation protection, door access protection, BMS data abnormality protection, emergency stop protection, and electromagnetic lock abnormality protection, ensuring a safe charging process.
01
Intelligent InteractionFlexible usage: Supports card swiping, QR code scanning, password entry, and plug-and-charge startup methods to meet commercial operation requirements.
Diverse communication interfaces: Optional 4G, Ethernet, or WIFI modules, supporting remote fault diagnosis, debugging, and OTA upgrades.
02
Intelligent OperationGrid coordination: Supports orderly charging to balance grid load and relieve grid pressure.
Time-of-use metering & energy saving: Supports peak-valley time-of-use metering, allowing users to set charging during low-price periods to reduce costs.
03
Energy Saving & Environmental ProtectionUltra-low power consumption: Low system standby power consumption, with the whole machine standby power consumption ≤ 20W.
04
Product Parameters
60kW
80kW
120kW
160kW
General
Input Characteristics
Output Characteristics
Operating Environment
Other Parameters
General
Input Characteristics
Output Specifications
Operating Environment
Other Parameters
General
Input Characteristics
Output Specifications
Operating Environment
Other Parameters
General
Input Characteristics
Output Specifications
Operating Environment
Other Parameters
General
|
Item |
Specification |
|
|
General |
System Power |
60kW Integrated DC Charger |
|
Cooling Method |
Forced Air Cooling |
|
|
Starting Method |
Password, QR Code Scan, Card Swiping, VIN Code, Plug and Charge |
|
|
Dimensions |
700mm (W) * 450mm (D) * 1650mm (H) |
|
|
Maintenance Method |
Front-opening maintenance, supports wall mounting |
Input Characteristics
|
Item |
Specification |
|
|
Input Characteristics |
Input System |
Three-phase five-wire system |
|
Rated Voltage |
380V ± 20% |
|
|
Grid Frequency |
45~65Hz |
|
|
Power Factor |
≥0.99 |
|
|
Harmonic Current |
≤5% |
Output Characteristics
|
Item |
Specification |
|
|
Output Characteristics |
Model |
60kW Integrated DC Charger |
|
Output Voltage |
DC 150~1000V |
|
|
Constant Power Range |
DC 300~1000V |
|
|
System Efficiency |
≥96%，, half-load and above power |
|
|
Auxiliary Power Supply |
Default 12V output, optional 24V, supports manual/automatic switching |
|
|
Standby Power Consumption |
≤20W |
|
|
Number of Output Channels |
Supports single-gun and dual-gun configurations |
|
|
Maximum Output Current per Channel(A) |
200 | |
|
Maximum Output Current of the Whole(A) |
200 |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-30℃～+70℃ (derating output above 55℃) |
|
Storage Temperature) |
-40℃～+75℃ |
|
|
Operating Humidity |
5%-95% ,non-condensing |
|
|
Altitude |
≤2000 meters, derating output above 2000 meters |
|
|
Noise |
≤65dB (1 meter distance from rack) |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Protection Functions |
Input over/under voltage protection, output overvoltage protection, output overcurrent protection, short circuit protection, battery reverse connection protection, insulation protection, access control protection, BMS data anomaly protection, emergency stop protection, electromagnetic lock anomaly protection, abnormal gun removal protection, lightning protection, tilt alarm protection (optional), water immersion alarm protection (optional), etc. |
|
Enclosure Rating |
IP55 |
|
|
Dust Protection |
G3 level dust filter |
|
|
Monitoring & Communication |
Remote Communication |
Ethernet, 4G module (free data during warranty period), Wi-Fi, Bluetooth |
|
Human-Machine Interaction |
10.1-inch color touchscreen (900 nits peak brightness) |
Expand all parameters
General
|
Item |
Specification |
|
|
General |
System Power |
80kW Integrated DC Charger |
|
Cooling Method |
Forced Air Cooling |
|
|
Starting Method |
Password, QR Code Scan, Card Swiping, VIN Code, Plug and Charge |
|
|
Dimensions |
700mm (W) * 450mm (D) * 1650mm (H) |
|
|
Maintenance Method |
Front-opening maintenance, supports wall mounting |
Input Characteristics
|
Item |
Specification |
|
|
Input Characteristics |
Input System |
Three-phase five-wire system |
|
Rated Voltage |
380V ± 20% |
|
|
Grid Frequency |
45~65Hz |
|
|
Power Factor |
≥0.99 |
|
|
Harmonic Current |
≤5% |
Output Specifications
|
Item |
Specification |
|
|
Output Characteristics |
Model |
80kW Integrated DC Charger |
|
Output Voltage |
DC 150~1000V |
|
|
Constant Power Range |
DC 300~1000V |
|
|
System Efficiency |
≥96%，, half-load and above power |
|
|
Auxiliary Power Supply |
Default 12V output, optional 24V, supports manual/automatic switching |
|
|
Standby Power Consumption |
≤20W |
|
|
Number of Output Channels |
Supports single-gun and dual-gun configurations |
|
|
Maximum Output Current per Channel(A) |
250 | |
|
Maximum Output Current of the Whole(A) |
267 |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-30℃～+70℃ (derating output above 55℃) |
|
Storage Temperature) |
-40℃～+75℃ |
|
|
Operating Humidity |
5%-95% ,non-condensing |
|
|
Altitude |
≤2000 meters, derating output above 2000 meters |
|
|
Noise |
≤65dB (1 meter distance from rack) |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Protection Functions |
Input over/under voltage protection, output overvoltage protection, output overcurrent protection, short circuit protection, battery reverse connection protection, insulation protection, access control protection, BMS data anomaly protection, emergency stop protection, electromagnetic lock anomaly protection, abnormal gun removal protection, lightning protection, tilt alarm protection (optional), water immersion alarm protection (optional), etc. |
|
Enclosure Rating |
IP55 |
|
|
Dust Protection |
G3 level dust filter |
|
|
Monitoring & Communication |
Remote Communication |
Ethernet, 4G module (free data during warranty period), Wi-Fi, Bluetooth |
|
Human-Machine Interaction |
10.1-inch color touchscreen (900 nits peak brightness) |
Expand all parameters
General
|
Item |
Specification |
|
|
General |
System Power |
120kW Integrated DC Charger |
|
Cooling Method |
Forced Air Cooling |
|
|
Starting Method |
Password, QR Code Scan, Card Swiping, VIN Code, Plug and Charge |
|
|
Dimensions |
700mm (W) * 450mm (D) * 1650mm (H) |
|
|
Maintenance Method |
Front-opening maintenance, supports wall mounting |
Input Characteristics
|
Item |
Specification |
|
|
Input Characteristics |
Input System |
Three-phase five-wire system |
|
Rated Voltage |
380V ± 20% |
|
|
Grid Frequency |
45~65Hz |
|
|
Power Factor |
≥0.99 |
|
|
Harmonic Current |
≤5% |
Output Specifications
|
Item |
Specification |
|
|
Output Characteristics |
Model |
120kW Integrated DC Charger |
|
Output Voltage |
DC 150~1000V |
|
|
Constant Power Range |
DC 300~1000V |
|
|
System Efficiency |
≥96%，, half-load and above power |
|
|
Auxiliary Power Supply |
Default 12V output, optional 24V, supports manual/automatic switching |
|
|
Standby Power Consumption |
≤20W |
|
|
Number of Output Channels |
Supports single-gun and dual-gun configurations |
|
|
Maximum Output Current per Channel(A) |
250 | |
|
Maximum Output Current of the Whole(A) |
400 |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-30℃～+70℃ (derating output above 55℃) |
|
Storage Temperature) |
-40℃～+75℃ |
|
|
Operating Humidity |
5%-95% ,non-condensing |
|
|
Altitude |
≤2000 meters, derating output above 2000 meters |
|
|
Noise |
≤65dB (1 meter distance from rack) |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Protection Functions |
Input over/under voltage protection, output overvoltage protection, output overcurrent protection, short circuit protection, battery reverse connection protection, insulation protection, access control protection, BMS data anomaly protection, emergency stop protection, electromagnetic lock anomaly protection, abnormal gun removal protection, lightning protection, tilt alarm protection (optional), water immersion alarm protection (optional), etc. |
|
Enclosure Rating |
IP55 |
|
|
Dust Protection |
G3 level dust filter |
|
|
Monitoring & Communication |
Remote Communication |
Ethernet, 4G module (free data during warranty period), Wi-Fi, Bluetooth |
|
Human-Machine Interaction |
10.1-inch color touchscreen (900 nits peak brightness) |
Expand all parameters
General
|
Item |
Specification |
|
|
General |
System Power |
160kW Integrated DC Charger |
|
Cooling Method |
Forced Air Cooling |
|
|
Starting Method |
Password, QR Code Scan, Card Swiping, VIN Code, Plug and Charge |
|
|
Dimensions |
700mm (W) * 450mm (D) * 1650mm (H) |
|
|
Maintenance Method |
Front-opening maintenance, supports wall mounting |
Input Characteristics
|
Item |
Specification |
|
|
Input Characteristics |
Input System |
Three-phase five-wire system |
|
Rated Voltage |
380V ± 20% |
|
|
Grid Frequency |
45~65Hz |
|
|
Power Factor |
≥0.99 |
|
|
Harmonic Current |
≤5% |
Output Specifications
|
Item |
Specification |
|
|
Output Characteristics |
Model |
160kW Integrated DC Charger |
|
Output Voltage |
DC 150~1000V |
|
|
Constant Power Range |
DC 300~1000V |
|
|
System Efficiency |
≥96%，, half-load and above power |
|
|
Auxiliary Power Supply |
Default 12V output, optional 24V, supports manual/automatic switching |
|
|
Standby Power Consumption |
≤20W |
|
|
Number of Output Channels |
Supports single-gun and dual-gun configurations |
|
|
Maximum Output Current per Channel(A) |
250 | |
|
Maximum Output Current of the Whole(A) |
500 |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-30℃～+70℃ (derating output above 55℃) |
|
Storage Temperature) |
-40℃～+75℃ |
|
|
Operating Humidity |
5%-95% ,non-condensing |
|
|
Altitude |
≤2000 meters, derating output above 2000 meters |
|
|
Noise |
≤65dB (1 meter distance from rack) |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Protection Functions |
Input over/under voltage protection, output overvoltage protection, output overcurrent protection, short circuit protection, battery reverse connection protection, insulation protection, access control protection, BMS data anomaly protection, emergency stop protection, electromagnetic lock anomaly protection, abnormal gun removal protection, lightning protection, tilt alarm protection (optional), water immersion alarm protection (optional), etc. |
|
Enclosure Rating |
IP55 |
|
|
Dust Protection |
G3 level dust filter |
|
|
Monitoring & Communication |
Remote Communication |
Ethernet, 4G module (free data during warranty period), Wi-Fi, Bluetooth |
|
Human-Machine Interaction |
10.1-inch color touchscreen (900 nits peak brightness) |
Expand all parameters
Application Scenarios

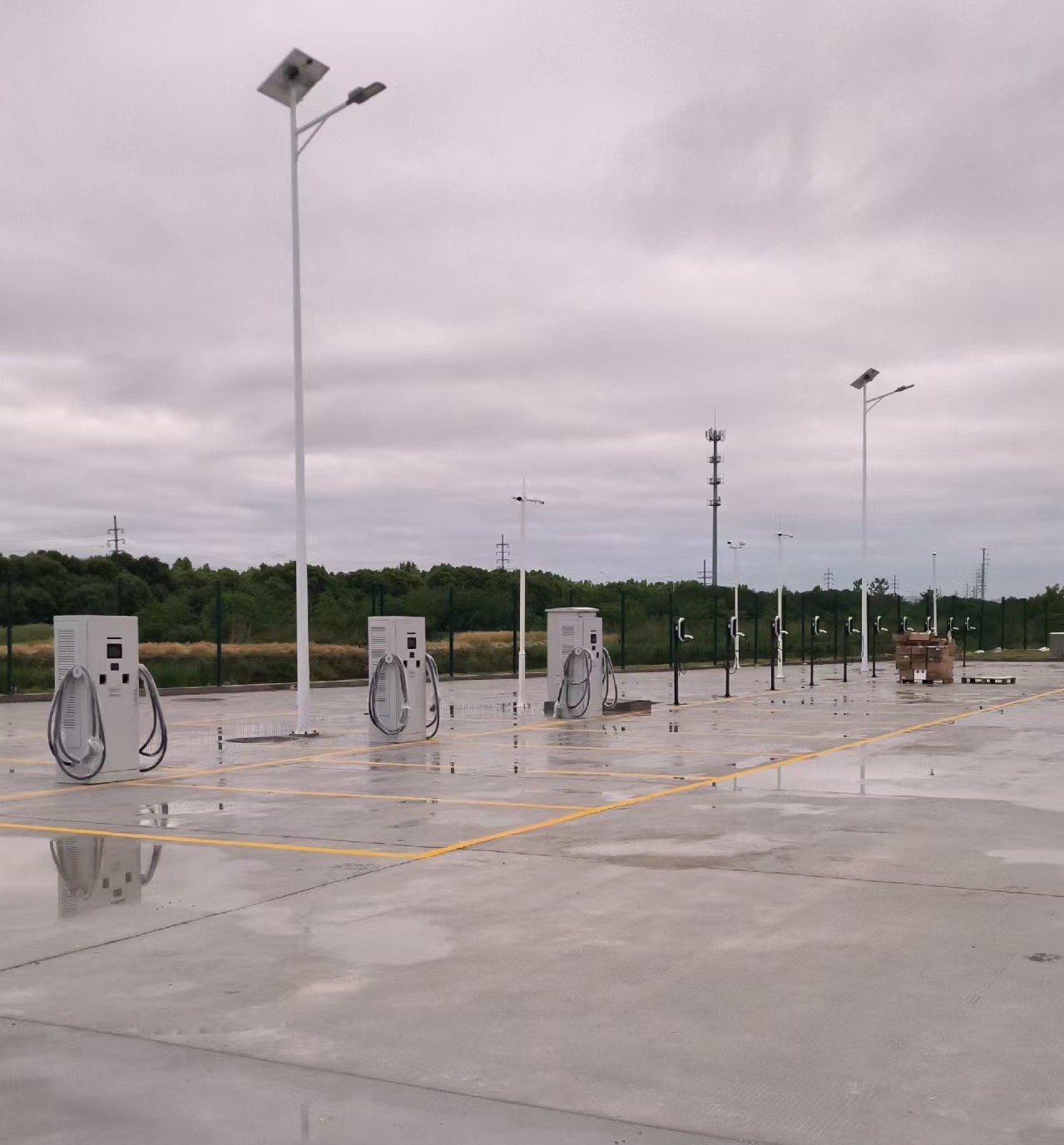

Parking Lot of Anhui Sanhuan Group, Fuyang City-4 units of 120kW.

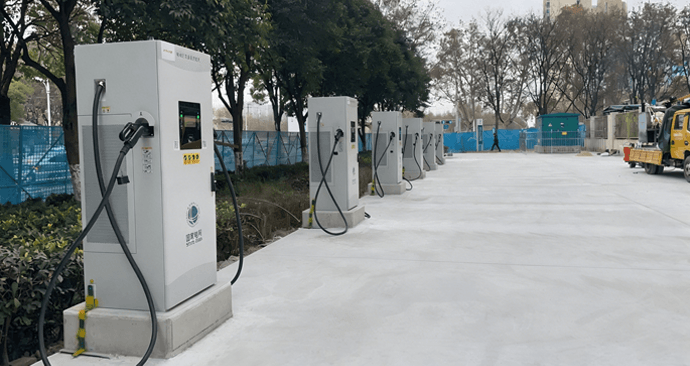

State Grid Electric Fuyang Jindi Duhui Parking Lot - 6 units of 120kW

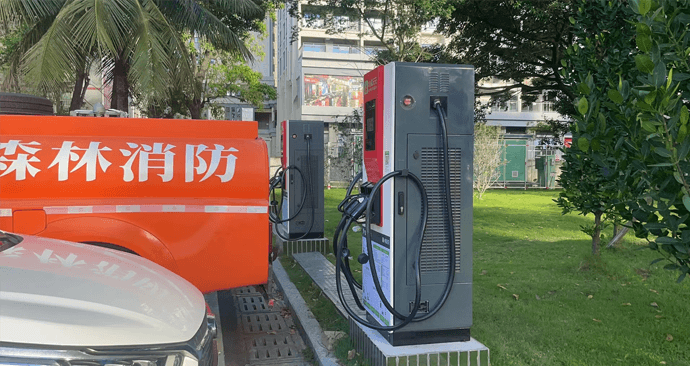

Huizhou Chenjiang Subdistrict Office Charging Station - 120kW Outdoor Dual-Gun DC Integrated Charger

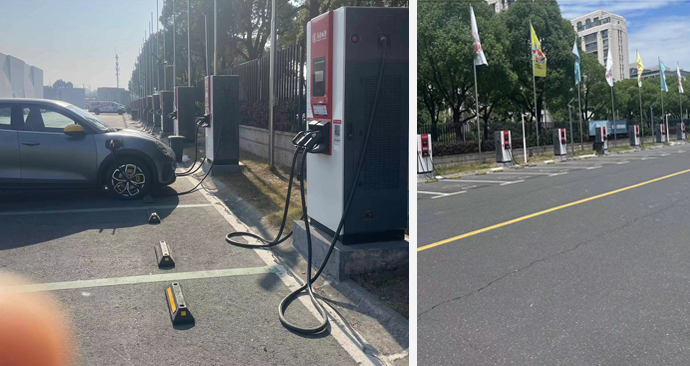

120kW Outdoor All-in-One Charging Station at Shanghai Gengxingxu Guanglu Road

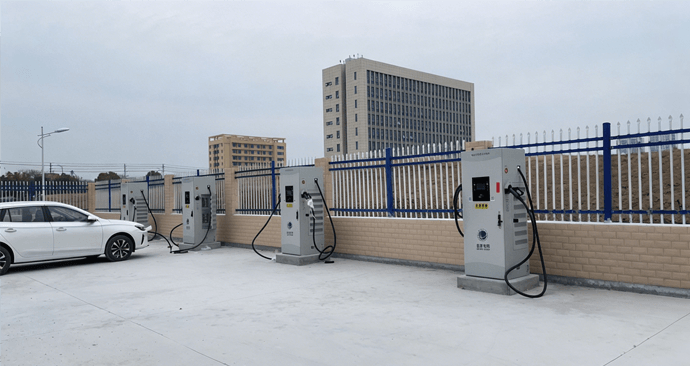

Wuhu-Chery Intelligent Connected Gigafactory
