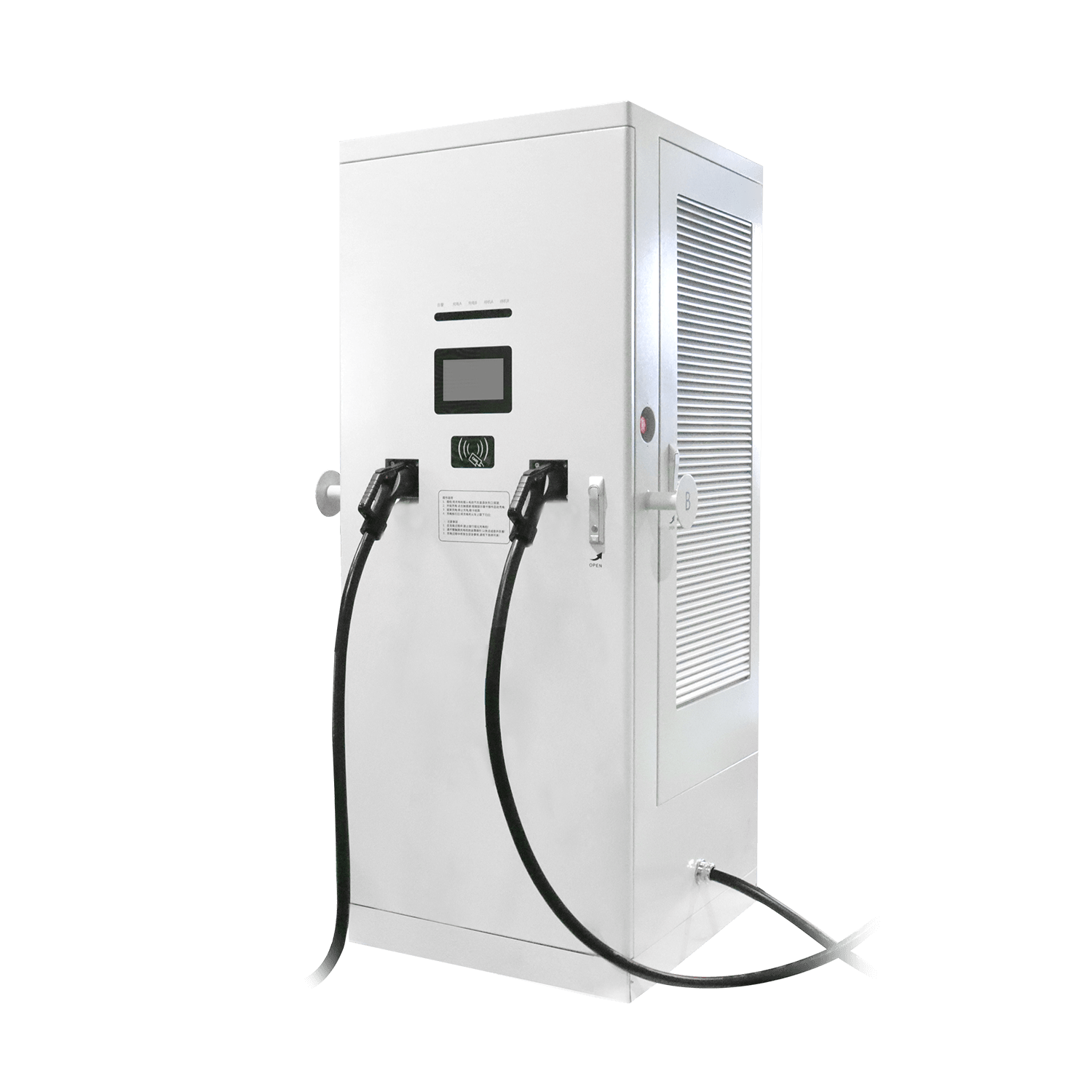

60-400kW DC charger
Increase 's own EMC LVD laboratory ensures that every product strictly complies with the standards and requirements of various countries around the world. It independently develops and manufactures controllers and power modules, and OCPP is internationally certified. This product uses a high-efficiency 30kW/40kW constant power charging module with a maximum output voltage of up to 1000V, a charging efficiency of over 96%, supports zero standby power, and supports wall mounting. It is suitable for public parking spaces, highways, and other similar locations, easily adapting to the charging needs of various electric vehicles, ensuring a fast and safe charging process.
Product Features
Safety & ReliabilityProtection class IP55: Features dustproof, waterproof, anti-salt spray and anti-rust capabilities, and adapts to an operating environment of -30°C to +70°C (derated output above 55°C).
Multiple electrical protections: Includes input over-voltage protection, output over-voltage protection, output over-current protection, short-circuit protection, battery reverse connection protection, insulation protection, door access protection, BMS data abnormality protection, emergency stop protection, and electromagnetic lock abnormality protection, ensuring a safe charging process.
01
Intelligent InteractionFlexible usage: Supports card swiping, QR code scanning, password entry, and plug-and-charge startup methods to meet commercial operation requirements.
Diverse communication interfaces: Optional 4G, Ethernet, or WIFI modules, supporting remote fault diagnosis, debugging, and OTA upgrades.
02
Intelligent OperationGrid coordination: Supports orderly charging to balance grid load and relieve grid pressure.
Time-of-use metering & energy saving: Supports peak-valley time-of-use metering, allowing users to set charging during low-price periods to reduce costs.
03
Energy Saving & Environmental ProtectionUltra-low power consumption: Low system standby power consumption, with the whole machine standby power consumption ≤ 20W.
04
Product Parameters
ECAN-180A
ECAN-240A
ECAN-320A
ECAN-400A
General
Input Characteristics
Output Characteristics
Operating Environment
Other Parameters
General
Input Characteristics
Output Specifications
Operating Environment
Other Parameters
General
Input Characteristics
Output Characteristics
Operating Environment
Other Parameters
General
Input Characteristics
Output Characteristics
Operating Environment
Other Parameters
General
|
Item |
Specification |
|
|
General |
Module Model |
ECAN-180A |
|
Cooling Method |
Forced Air Cooling |
|
|
Starting Method |
Password, QR Code, Card Swipe, VIN Code, Plug and Charge |
|
|
Dimensions |
750mm (W) × 600mm (D) × 1800mm (H) |
|
|
Maintenance Method |
Front-opening door maintenance, supports wall mounting |
Input Characteristics
|
Item |
Specification |
|
|
Input Characteristics |
Input System |
Three-phase five-wire system |
|
Rated Voltage |
380V±20% |
|
|
Grid Frequency |
45~65Hz |
|
|
Power Factor |
≥0.99 |
|
|
Harmonic Current |
≤5% |
Output Characteristics
|
Item |
Specification |
|
|
Output Characteristics |
Output Voltage |
DC 150~1000V |
|
Constant Power Range |
DC 300~1000V |
|
|
System Efficiency |
≥96%, half-load and above power |
|
|
Auxiliary Power Supply |
Default 12V output, optional 24V, supports manual/automatic switching. |
|
|
Standby Power Consumption |
≤20W |
|
|
Output Channels |
Supports single-gun and dual-gun configurations |
|
|
Maximum Output Current per Channel(A) |
250 | |
|
Maximum Output Current of the Whole(A) |
500 |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-30℃～+70℃ (derating output above 55℃) |
|
Storage Temperature) |
-40℃～+75℃ |
|
|
Operating Humidity |
5%-95%, non-condensing |
|
|
Altitude |
≤2000 meters, derating output above 2000 meters |
|
|
Noise |
≤65dB (1 meter from the rack) |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Protection Functions |
Input over-voltage and under-voltage protection, output over-voltage protection, output over current protection, short-circuit protection, battery reverse connection protection, insulation protection, access control protection, BMS data anomaly protection, emergency stop protection, electromagnetic lock anomaly protection, abnormal gun disconnection protection, lightning protection, tilt alarm protection (optional),water immersion alarm protection(optional) |
|
Enclosure Rating |
IP55 |
|
|
Dust Protection |
G3 level dust filter |
|
|
Monitoring & Communication |
Remote Communication |
Ethernet, 4G module (free data is provided during the warranty period), Wi-Fi, Bluetooth |
|
Human-Machine Interaction |
7-inch color touchscreen (900 nits peak brightness) |
Expand all parameters
General
|
Item |
Specification |
|
|
General |
Module Model |
ECAN-240A |
|
Cooling Method |
Forced Air Cooling |
|
|
Starting Method |
Password, QR Code, Card Swipe, VIN Code, Plug and Charge |
|
|
Dimensions |
750mm (W) × 600mm (D) × 1800mm (H) |
|
|
Maintenance Method |
Front-opening door maintenance, supports wall mounting |
Input Characteristics
|
Item |
Specification |
|
|
Input Characteristics |
Input System |
Three-phase five-wire system |
|
Rated Voltage |
380V±20% |
|
|
Grid Frequency |
45~65Hz |
|
|
Power Factor |
≥0.99 |
|
|
Harmonic Current |
≤5% |
Output Specifications
|
Item |
Specification |
|
|
Output Characteristics |
Output Voltage |
DC 150~1000V |
|
Constant Power Range |
DC 300~1000V |
|
|
System Efficiency |
≥96%, half-load and above power |
|
|
Auxiliary Power Supply |
Default 12V output, optional 24V, supports manual/automatic switching. |
|
|
Standby Power Consumption |
≤20W |
|
|
Output Channels |
Supports single-gun and dual-gun configurations |
|
|
Maximum Output Current per Channel(A) |
250 | |
|
Maximum Output Current of the Whole(A) |
500 |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-30℃～+70℃ (derating output above 55℃) |
|
Storage Temperature) |
-40℃～+75℃ |
|
|
Operating Humidity |
5%-95%, non-condensing |
|
|
Altitude |
≤2000 meters, derating output above 2000 meters |
|
|
Noise |
≤65dB (1 meter from the rack) |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Protection Functions |
Input over-voltage and under-voltage protection, output over-voltage protection, output over current protection, short-circuit protection, battery reverse connection protection, insulation protection, access control protection, BMS data anomaly protection, emergency stop protection, electromagnetic lock anomaly protection, abnormal gun disconnection protection, lightning protection, tilt alarm protection (optional),water immersion alarm protection(optional) |
|
Enclosure Rating |
IP55 |
|
|
Dust Protection |
G3 level dust filter |
|
|
Monitoring & Communication |
Remote Communication |
Ethernet, 4G module (free data is provided during the warranty period), Wi-Fi, Bluetooth |
|
Human-Machine Interaction |
7-inch color touchscreen (900 nits peak brightness) |
Expand all parameters
General
|
Item |
Specification |
|
|
General |
Module Model |
ECAN-320A |
|
Cooling Method |
Forced Air Cooling |
|
|
Starting Method |
Password, QR Code, Card Swipe, VIN Code, Plug and Charge |
|
|
Dimensions |
750mm (W) × 600mm (D) × 1800mm (H) |
|
|
Maintenance Method |
Front-opening door maintenance, supports wall mounting |
Input Characteristics
|
Item |
Specification |
|
|
Input Characteristics |
Input System |
Three-phase five-wire system |
|
Rated Voltage |
380V±20% |
|
|
Grid Frequency |
45~65Hz |
|
|
Power Factor |
≥0.99 |
|
|
Harmonic Current |
≤5% |
Output Characteristics
|
Item |
Specification |
|
|
Output Characteristics |
Output Voltage |
DC 150~1000V |
|
Constant Power Range |
DC 300~1000V |
|
|
System Efficiency |
≥96%, half-load and above power |
|
|
Auxiliary Power Supply |
Default 12V output, optional 24V, supports manual/automatic switching. |
|
|
Standby Power Consumption |
≤20W |
|
|
Output Channels |
Supports single-gun and dual-gun configurations |
|
|
Maximum Output Current per Channel(A) |
250 | |
|
Maximum Output Current of the Whole(A) |
500 |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-30℃～+70℃ (derating output above 55℃) |
|
Storage Temperature) |
-40℃～+75℃ |
|
|
Operating Humidity |
5%-95%, non-condensing |
|
|
Altitude |
≤2000 meters, derating output above 2000 meters |
|
|
Noise |
≤65dB (1 meter from the rack) |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Protection Functions |
Input over-voltage and under-voltage protection, output over-voltage protection, output over current protection, short-circuit protection, battery reverse connection protection, insulation protection, access control protection, BMS data anomaly protection, emergency stop protection, electromagnetic lock anomaly protection, abnormal gun disconnection protection, lightning protection, tilt alarm protection (optional),water immersion alarm protection(optional) |
|
Enclosure Rating |
IP55 |
|
|
Dust Protection |
G3 level dust filter |
|
|
Monitoring & Communication |
Remote Communication |
Ethernet, 4G module (free data is provided during the warranty period), Wi-Fi, Bluetooth |
|
Human-Machine Interaction |
7-inch color touchscreen (900 nits peak brightness) |
Expand all parameters
General
|
Item |
Specification |
|
|
General |
Module Model |
ECAN-400A |
|
Cooling Method |
Forced Air Cooling |
|
|
Starting Method |
Password, QR Code, Card Swipe, Plug and Charge |
|
|
Dimensions |
800mm (W) × 800mm (D) × 2000mm (H) |
|
|
Maintenance Method |
Front-opening door maintenance, supports wall mounting |
Input Characteristics
|
Item |
Specification |
|
|
Input Characteristics |
Input System |
Three-phase five-wire system |
|
Rated Voltage |
380V±20% |
|
|
Grid Frequency |
45~65Hz |
|
|
Power Factor |
≥0.99 |
|
|
Harmonic Current |
≤5% |
Output Characteristics
|
Item |
Specification |
|
|
Output Characteristics |
Output Voltage |
DC 150~1000V |
|
Constant Power Range |
DC 300~1000V |
|
|
System Efficiency |
≥96%, half-load and above power |
|
|
Auxiliary Power Supply |
Default 12V output, optional 24V, supports manual/automatic switching. |
|
|
Standby Power Consumption |
≤20W |
|
|
Output Channels |
Supports single-gun and dual-gun configurations |
|
|
Maximum Output Current per Channel(A) |
250 | |
|
Maximum Output Current of the Whole(A) |
500 |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-30℃～+70℃ (derating output above 55℃) |
|
Storage Temperature) |
-40℃～+75℃ |
|
|
Operating Humidity |
5%-95%, non-condensing |
|
|
Altitude |
≤2000 meters, derating output above 2000 meters |
|
|
Noise |
≤65dB (1 meter from the rack) |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Protection Functions |
Input over-voltage and under-voltage protection, output over-voltage protection, output over current protection, short-circuit protection, battery reverse connection protection, insulation protection, access control protection, BMS data anomaly protection, emergency stop protection, electromagnetic lock anomaly protection, abnormal gun disconnection protection, lightning protection, tilt alarm protection (optional),water immersion alarm protection(optional) |
|
Enclosure Rating |
IP55 |
|
|
Dust Protection |
G3 level dust filter |
|
|
Monitoring & Communication |
Remote Communication |
Ethernet, 4G module (free data is provided during the warranty period), Wi-Fi, Bluetooth |
|
Human-Machine Interaction |
7-inch color touchscreen (900 nits peak brightness) |
Expand all parameters
Application Scenarios

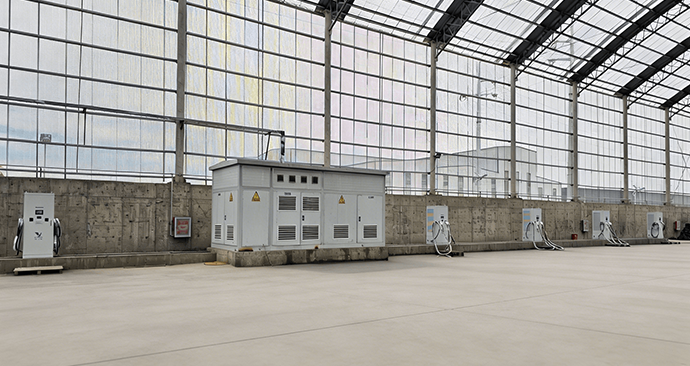

Beijing Jiangzhuanghu Charging Station - 480kW - 640 Split Rectifier Cabinet

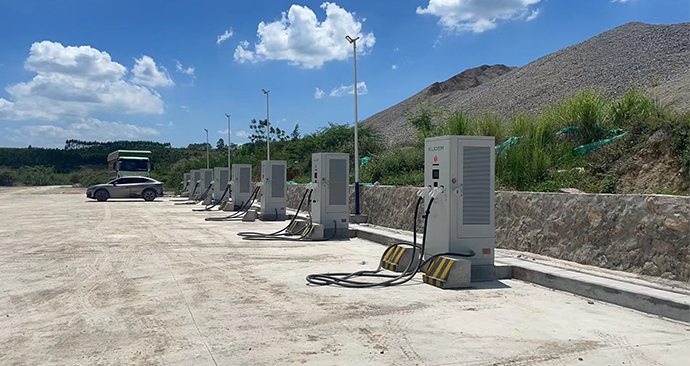

Guangxi Shangsi Mining Heavy Truck Charging Station - 320kW Outdoor Dual-Gun DC Integrated Charger

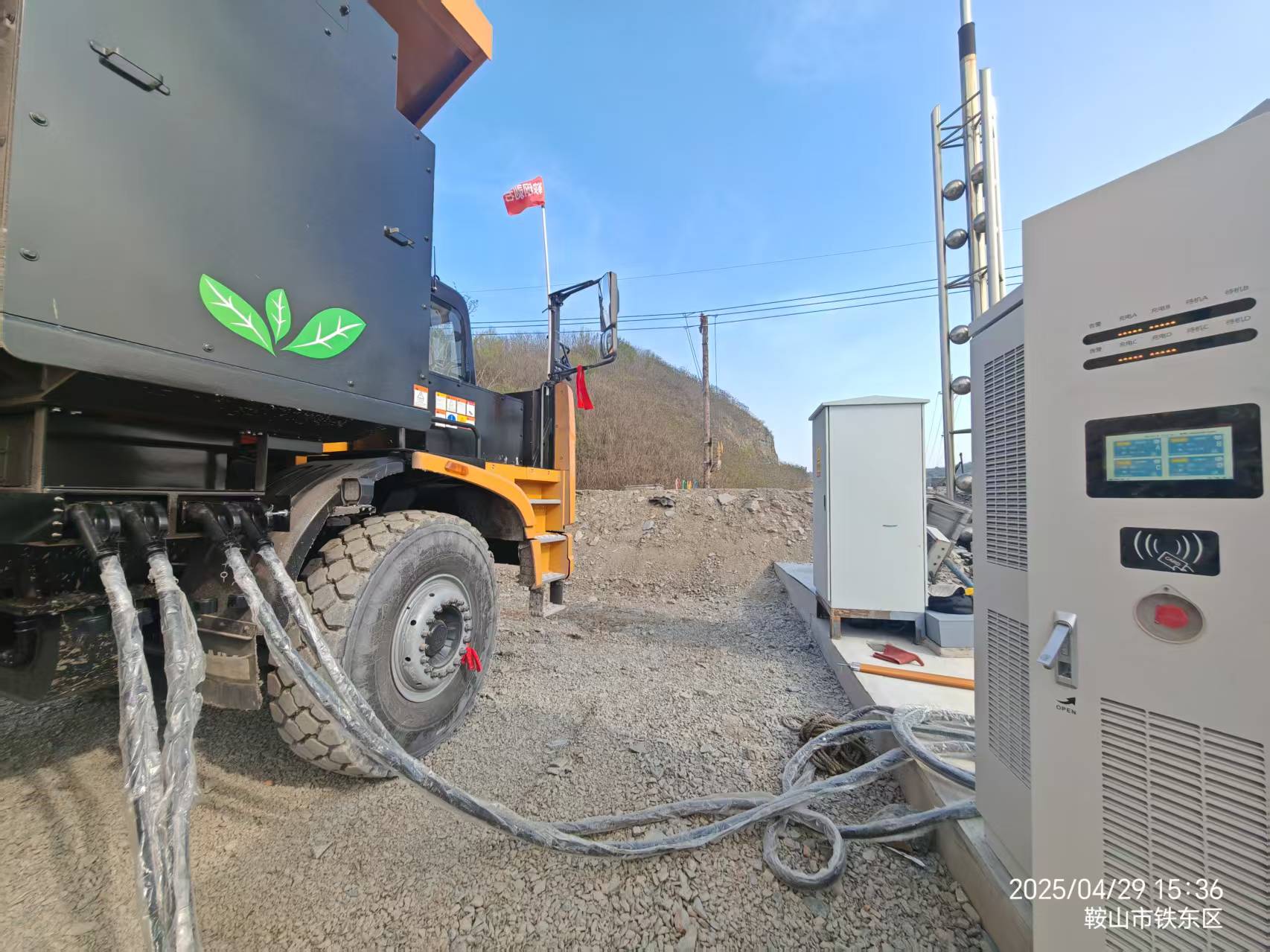

Liaoning Anshan Iron Mine Site - 640kW Outdoor Four-Gun DC Integrated Charger
