Integrated Control & Measurement Module

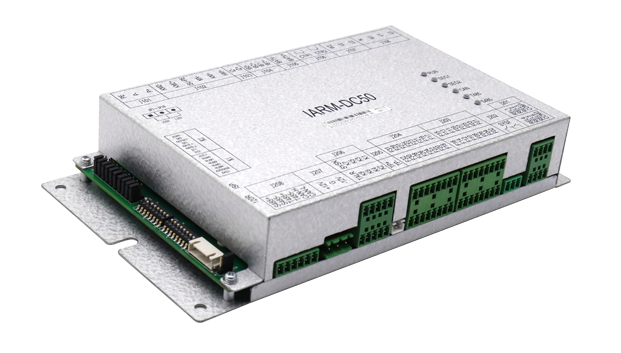

IARM-DC50
This module integrates AC voltage collection and mutual redundancy, DC voltage/current collection, bus and feeder insulation monitoring, digital input monitoring, and fault output functions. It is used as an integrated monitoring and control module in DC charging cabinets.
Product Features
Measurement & MonitoringThe AC/DC monitoring module supports 2 channels of three-phase voltage collection and AC mutual redundancy
Measures bus and control voltage, and 1 channel of load current
Measures 1 channel of battery voltage and 1 channel of battery current
01
Detection & ControlIntegrates bus insulation detection and 32-channel feeder detection, capable of measuring AC/DC residual voltage and two-section bus CTs
8 channels of user-definable digital input and 7 channels of dry contact output
16 channels of user-definable digital input contact measurement, capable of measuring 1 channel of temperature
02
7 channels of controllable dry contact signals
03
24 channels of user-definable digital input contact measurement
04
Product Parameters
Application Scenarios
Power Plant
Hydropower Station
Substation
Metallurgical Plant
Chemical Plant
