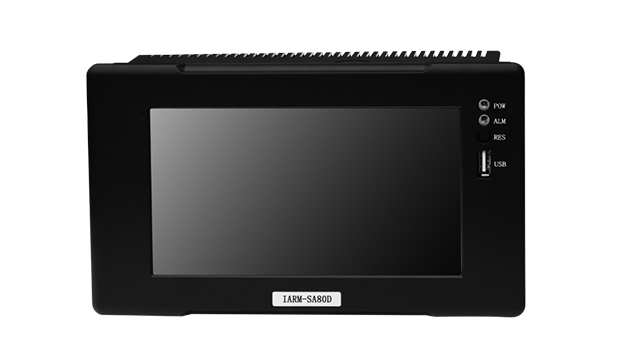

Integrated DC Feeder Monitoring Secondary Unit
IARM-SA80D
The IARM-SA80D is a secondary monitoring unit for integrated DC charging systems and the system's data processing center. It integrates DC/AC data collection, digital input detection, and digital output control functions, managing charging modules, discharge feedback modules, and battery inspection units, and controlling the floating charge of battery packs.
Product Features
Communication & Configuration InterfacesLAN Ethernet port for data query and parameter configuration via WEB interface
USB port for USB disk program upgrade
01
Electrical Parameter MonitoringSupports 1 channel of bus voltage and 1 channel of control voltage measurement
Supports 2 channels of AC voltage measurement and mutual redundancy
Supports 1 channel of battery voltage and 1 channel of battery current measurement
Supports 1 channel of load current measurement
02
Digital Input & Control Output16 channels of digital input
6 channels of digital output
03
Status Monitoring & Alarm1 channel of ambient temperature detection
Supports device abnormality and device fault contact output
04
Product Parameters
Application Scenarios
Power Plant
Hydropower Station
Substation
Metallurgical Plant
Chemical Plant
