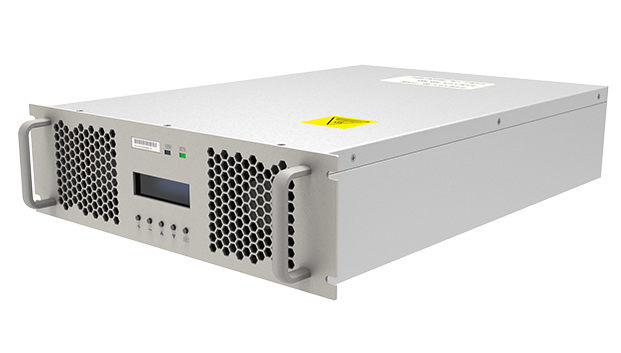

Grid-Tied Inverter
FB5000H-2
The FB5000H-2 grid-tied inverter utilizes DSP digital control and high-frequency soft-switching technology, ensuring high efficiency and reliability. The DC input and AC output of the inverter are completely electrically isolated, meeting the stringent requirements of the power industry. It features a built-in CPU and an independent LCD display. The module is designed with a 2U standard height, and its independent wiring board supports both barrier terminal blocks and pluggable aviation connectors.
Product Features
High Efficiency & FlexibilitySoft-switching technology: The DC/DC conversion adopts advanced LLC resonant soft-switching technology, with efficiency greater than 90%.
Fully digital control: Utilizes TI's DSP controller TMS320F2808, responsible for overall module control, phase locking, and fault handling, ensuring excellent consistency and anti-interference capability.
01
Safety & ReliabilityGrid voltage detection: Adopts advanced control algorithms. When the grid voltage or frequency experiences severe fluctuations or a power outage, the module automatically shuts down and stops feedback to protect itself from damage, with rapid response.
Input and output electrical isolation: Complete electrical isolation between DC input and AC output, eliminating the need for an external isolation transformer and meeting the requirements for power inverters in integrated power supply designs.
02
Excellent PerformanceWide operating voltage range, compatible with 220V and 110V systems, with an actual operating voltage from 90VDC to 300VDC, delivering strong adaptability.
Fan control: The cooling fan adopts a combined speed regulation mode based on temperature and output power. When the temperature is below 65°C and under light load, the fan runs at low speed with very low noise (less than 50dB); when the output is heavily loaded or the temperature exceeds 65°C, the fan runs at full speed with linear speed regulation, resulting in low noise and a long fan lifespan.
03
Convenient & User-FriendlyBilingual operation in Chinese and English: Built-in support for both languages, allowing users to select as needed, offering flexibility, convenience, and strong universality.
04
Product Parameters
Grid-Tied Inverter FB5000H-2
General
Input Characteristics
Grid Voltage
Other Parameters
General
|
Item |
Specification |
|
|
General |
Model |
FB5000H-2 |
|
Dimensions |
280mm×88mm×415mm（W×H×D） |
|
|
Rated Output Power |
5kW |
Input Characteristics
| Item | Specification | |
|---|---|---|
| Input Characteristics | Rated Voltage | 220VDC/110VDC |
| Voltage Range | 90～300VDC | |
| Max. Input Current | 35A max | |
| Input Current Ripple | <3% |
Grid Voltage
| Item | Specification | |
|---|---|---|
| Grid Voltage | Rated Range | 220VAC±15% |
| Input Frequency | 45-55Hz | |
| Feedback Mode | DC Constant Current (CC) Discharge | |
| Power Factor | ＞0.99 | |
| Output THD | ＜5% | |
| Efficiency | ＞ 90% (220VDC System) / ＞ 86% (110VDC System) |
Other Parameters
| Item | Specification | |
|---|---|---|
| Safety & Communication | Protection | DC Under/Over-voltage, AC Under/ Over-voltage, and Overload protection. Over-temperature protection. Emergency Power Off (EPO). |
| Communication | RS485 | |
| Dry Contacts | Normally Open (NO) |
Expand all parameters
Application Scenarios
Power Grid
Hydropower Station
Power Plant
Hydropower Station
