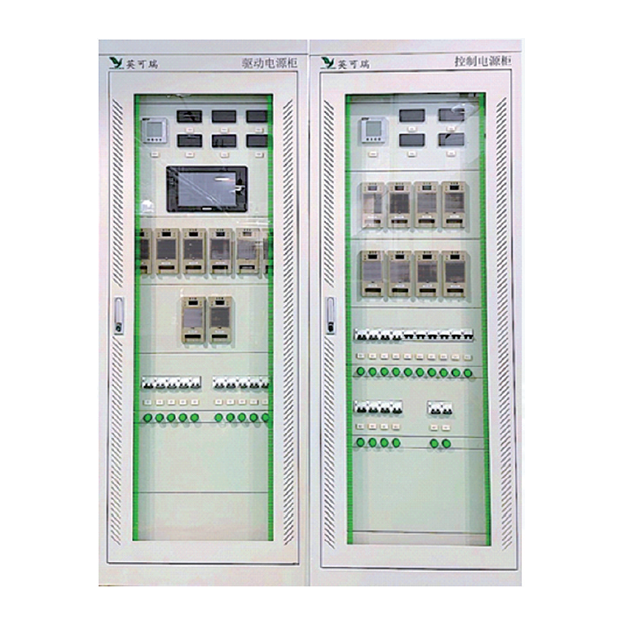

Platform Screen Door Supply System

INC-PD110 Series

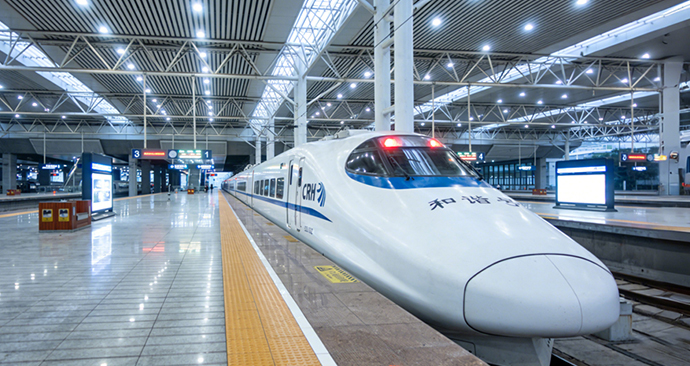

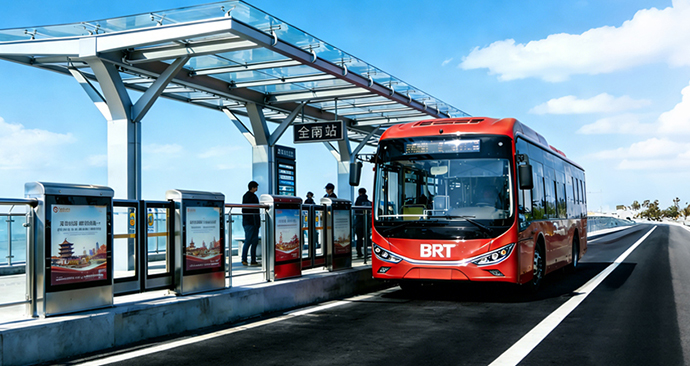

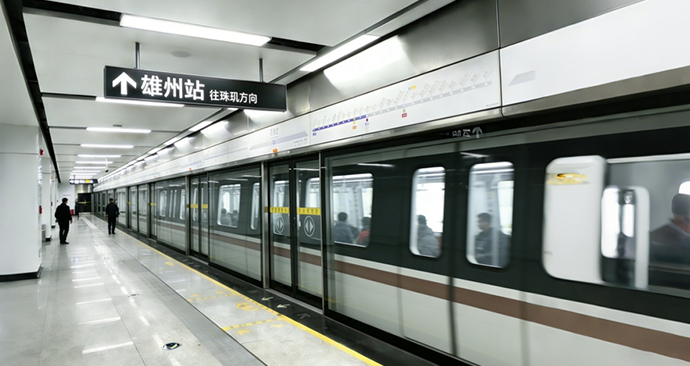

The platform door system uses Class I load, with the power supply adopting a separated mode of drive power and control power, consisting of independent drive power and control power. The drive power is mainly composed of drive modules, charging modules, batteries, power distribution units, and monitoring systems; the control power is mainly composed of charging modules, UPS, DC24/48V step-down modules, DC24-60V adjustable power supplies, batteries, power distribution units, and monitoring systems. With years of R&D experience in DC power systems, the company ensures that the power modules and monitoring systems used in the door power system are independently developed with proprietary intellectual property rights. It is mainly applied in urban subways, intercity rail transit, high-speed rail platforms, urban BRT public transport, airport transit systems, etc.

Product Features

High Compatibility

Modular redundant design with no single point of failure, ensuring system reliability

Intelligent & User-Friendly

Intelligently monitors system operating status and connects to the background dispatching system

Hot-swappable for online maintenance

Product Parameters

Platform Screen Door System

General

Input Specifications

Output Characteristics

Other Parameters

General

	Item	Specifications
General	Dimensions (W×D×H)	800mm × 600mm × 2260mm

Input Specifications

	Item	Specifications
Input Specifications	AC Input Voltage	85%~120%（380V/220V）
	AC Frequency	50Hz
	Input Power Factor	≥0.9

Output Characteristics

	Item	Specifications
Output Characteristics	Driving Output Voltage	DC110V
	Control Output Voltage	DC110V
	DC/DC Output Voltage	DC24V/24V~60V
	Current Regulation Accuracy	≤±1%
	Voltage Regulation Accuracy	≤±0.5%
	Ripple Coefficient	≤0.5%
	Output Current Range	Rated Capacity: 3kVA–10kVA; features fault output indication.
	Efficiency	≥92%
