DC Power Supply System

GZDW Series

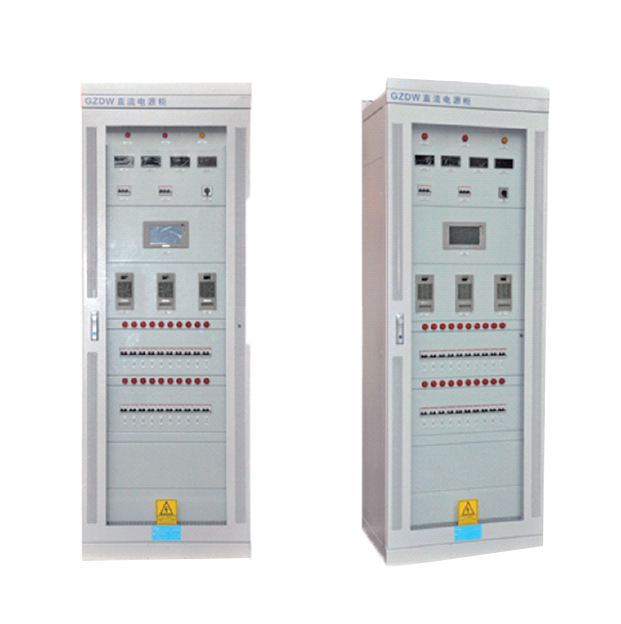

GZDW series DC power supply systems are primarily composed of high-frequency switching power modules, monitoring units, maintenance-free batteries, and feeder circuits. The system offers numerous advantages, including lightweight design, compact footprint, high efficiency, advanced intelligence, easy operation and maintenance, and high reliability. It is mainly applied in small-to-medium-sized power plants, hydropower stations, various substations, switching stations, and industries such as petrochemicals and metallurgy. As a critical piece of equipment for ensuring the safe operation of power grids and power plants, it provides DC power for circuit breaker opening and closing, as well as for various high-and-low-voltage equipment within secondary circuits, including instrumentation, control loops, relay protection, and emergency lighting.

Product Features

High Compatibility

Wide input power supply range

Adopts high-frequency switching technology with high efficiency and power density

The monitor real-time detects system operating status, insulation detection, such as AC intrusion and DC cross intrusion

Intelligent & User-Friendly

Comprehensive protection and alarm functions: input over/under voltage, output overvoltage, overtemperature, overcurrent, etc.

Built-in reverse connection protection, modules support hot-swapping

Product Parameters

DC Power Supply System

General

Input Specifications

Output Specifications

Other Parameters

General

	Item	Specifications
General	Dimensions (W×D×H)	800mm × 600mm × 2260mm

Input Specifications

	Item	Specifications
Input Specifications	AC Input Voltage	85%~120%（380V/220V）
	AC Frequency	50Hz
	Input Power Factor	≥0.9

Output Specifications


Output Specifications	Rated Output Voltage	DC110V/220V
	Current Regulation Accuracy	≤±1%
	Voltage Regulation Accuracy	≤±0.5%
	Ripple Coefficient	≤0.5%
	Output Current Range	10A-500A
	Efficiency	≥92%
