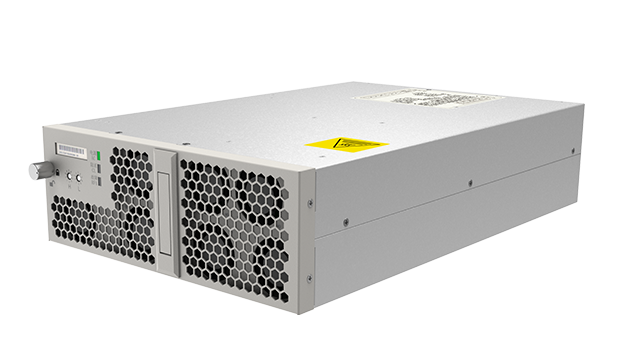

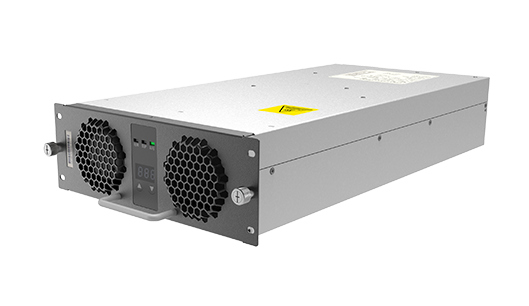

15kW Communication Power Supply Module
TR240-15000C
The TR240-15000C series high-frequency switching rectifier module is an AC/DC module featuring AC voltage input and adjustable DC voltage output. The module utilizes DSP digital control, resonant soft-switching, and active PFC technologies, protected by multiple patents. It is characterized by high power density, a high power factor, low harmonics, and high efficiency, with the capability for parallel operation of multiple modules.
Product Features
High Efficiency & Energy SavingHigh efficiency: Reduces energy consumption, meets energy conservation and emission reduction requirements, and helps customers save on electricity costs.
High power density: Saves customer space and reduces system costs.
01
Excellent PerformanceWide input/output voltage range: Suitable for most different input and output voltage scenarios.
Wide operating temperature range: Meets the requirements of most harsh working environments.
02
Safety & ReliabilityBuilt-in anti-reverse protection and failure self-isolation function: Greatly improves system reliability.
Comprehensive fault self-detection prompts: Rich fault detection facilitates customer maintenance.
Hot-swappable: Enables convenient use and reduces maintenance costs.
03
Intelligent & User-FriendlyDSP digital control: Fewer components, higher environmental stability, higher reliability, and more convenient expansion.
Excellent EMI characteristics: Low output ripple and noise, with minimal interference to on-board equipment.
04
Product Parameters
TR240-15000C
General
Output Characteristics
Input Characteristics
Operating Environment
Other Parameters
General
|
Item |
Specification |
|
|
General |
Model |
TR240-15000C |
|
Dimensions |
240mm×85mm×370mm（W×H×D） |
|
|
Weight |
9KG |
Output Characteristics
|
Item |
Specification |
|
|
Output Characteristics |
Rated Output Power | 15kW |
| Output Voltage Range | 200~300VDC | |
| Rated Output Current | 50A | |
| DC Output Voltage Range | 150VDC~300VDC | |
| Adjustable Current Limit | 10%~110% | |
| Peak-to-Peak Noise | ≤±0.5% | |
| Voltage Regulation Accuracy | ≤±0.5% | |
| Current Regulation Accuracy | ≤±1% | |
| Current Sharing Imbalance | ≤±5% | |
| Efficiency | ≥95% |
Input Characteristics
|
Item |
Specification |
|
|
Input Characteristics |
Rated Input Voltage |
3-Phase 380Vac / 480Vac |
|
Input Voltage Range |
305VAC~530VDC（Full Load）;305VAC~260VDC(Derated) |
|
|
Input Current |
<32A | |
|
Frequency |
45Hz~65Hz | |
|
Power Factor (PF) |
≥0.99 | |
|
Total Harmonic Distortion (THD) |
≤5% | |
|
Input Protection |
Fuses; Surge Protection Circuit (SPD) |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-40°C~55°C (Normal)；55°C~75°C (Derating) |
|
Storage Temperature) |
-40°C~75°C | |
|
Operating Humidity |
0~95% | |
|
Altitude |
Full load output below 2000m |
Other Parameters
|
Item |
Specification |
|
|
Reliability & Compliance |
Dielectric Strength |
|
|
MTBF |
＞120,000 Hours |
|
|
Communication |
Communication Interface |
CAN |
|
Max. Units in Parallel |
60 units |
|
|
Protection & Isolation: Output anti-backflow diode failure isolation; integrated output discharge function. |
||
|
Alarms and status are reported to the monitoring system via CAN bus, complemented by three LED indicators. |
||
