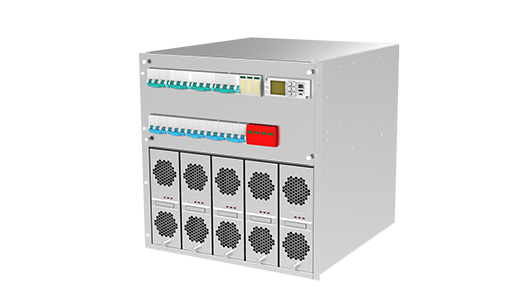

750VDC Subrack Power System
INC-TP750-65/10000 (Monitor: SA50)
The INC-TP750-65/10000 embedded subrack power system is a compact power solution developed by integrating our years of expertise with an entirely new product platform. As 5G network construction continues to advance, the number of base stations and overall power consumption have increased significantly. To reduce the capital expenditure (CAPEX) for power facilities in 5G remote base stations and C-RAN sites, and to explore the "centralized power supply, distributed consumption" model, our company has specifically designed this fully digital HVDC remote power supply system. It features high reliability, high power density, high efficiency, and high performance in an ultra-compact form factor to meet the demands of DC remote power supply scenarios. It is ideally suited for outdoor 5G communication base stations, integrated access, independent RRU power supply, and micro/remote sites.
Product Features
High Efficiency & Energy SavingHigh module efficiency, adopting resonant soft-switching technology for energy conservation and emission reduction.
The rectifier module features a sleep function to improve operating efficiency.
Intelligent fan speed control reduces wear and extends fan service life.
The rectifier module has high power density, saving space and reducing costs.
01
Safety & ReliabilityWide input voltage range: 260~530VAC, with strong grid adaptability.
Ultra-wide operating temperature range: -40~+75°C (derated above 50°C).
Comprehensive lightning protection design to enhance system lightning resistance.
Low input harmonic content, reducing grid pollution and improving grid adaptability.
02
Intelligent & User-FriendlyDSP digital control: High stability, high reliability, and easy expansion.
Flexible networking: Equipped with RS232/RS485, USB, and network port communication interfaces.
Complete battery management function: Effectively extends battery service life.
128x160 color LCD display with 6-key operation, providing a user-friendly HMI.
03
Rapid DeploymentStandard 19-inch rack-mounted design for embedded installation.
Low noise design, suitable for various scenarios.
The module supports hot-swapping, enabling convenient use, reducing maintenance costs, and facilitating expansion.
Front and rear maintenance design for flexible installation, suitable for indoor equipment rooms and outdoor cabinets.
04
Product Parameters
750VDC INC-TP750-65/10000 (Monitor: SA50)
General
Input Characteristics
Output Characteristics
General
| Item | Specifications | |
|---|---|---|
| General | Model | TP750-65/10000 |
| Dimensions | 482mm (W) × 494.5mm (D) × 533.4mm (H) | |
| Weight | 56KG |
Input Characteristics
| Item | Specifications | |
|---|---|---|
| Input Characteristics | Rated Input Voltage | 380VAC |
| Input Voltage Range | 260Vac–530Vac (Derating applies for 260Vac–305Vac) | |
| Frequency Range | 45Hz~65Hz | |
| Power Factor (PF | ≥0.99 | |
| THDi | ≤5% |
Output Characteristics
| Item | Specifications | |
|---|---|---|
| Output Characteristics | Output Voltage Range | 200VDC~750VDC |
| Output Current | 65A/50A | |
| Voltage Regulation Accuracy | ≤±0.5% | |
| Peak-to-Peak Noise Voltage | ≤±0.5% | |
| Efficiency | ≥94% | |
| Current Sharing Imbalance | ≤±5% | |
| Output Branches | 4-channel load output |
Expand all parameters
Application Scenarios
Telecom Base Station
RRU Independent Power Supply
Remote Radio Site
