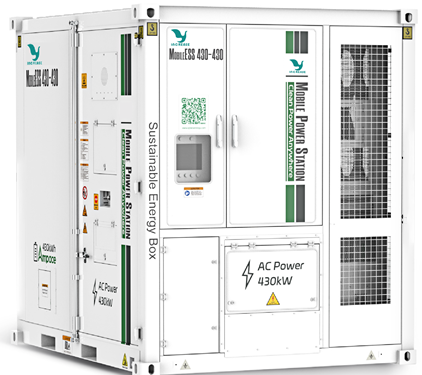

430kW/430kWh Mobile Energy Storage System (MESS)
Mobile ESS 430-430
The Mobile ESS is designed for industrial and commercial applications. It can replace or supplement diesel generators, providing green, efficient and low-cost power supply. The system integrates energy storage batteries, power conversion and energy management functions, supports multiple energy inputs such as grid, PV and generators, and provides stable AC output for loads or electric vehicles.
The system can work together with diesel generators to support peak shaving, power compensation, fuel savings and reduced generator runtime. It is flexible and scalable, supports parallel operation of multiple units, and is suitable for temporary power supply, construction sites, industrial parks and other scenarios. With high-safety LFP batteries and liquid-cooling thermal management, it can operate reliably in complex environments.
The system can work together with diesel generators to support peak shaving, power compensation, fuel savings and reduced generator runtime. It is flexible and scalable, supports parallel operation of multiple units, and is suitable for temporary power supply, construction sites, industrial parks and other scenarios. With high-safety LFP batteries and liquid-cooling thermal management, it can operate reliably in complex environments.
Product Features
Product Parameters
Mobile ESS 430-430
General
AC Power
Battery
Optional Features
General
| Item | Specifications | |
|---|---|---|
| General | Model | Mobile ESS 430-430 |
| Configuration | 430 kW / 430 kWh | |
| Dimensions (Lwh) | STANDARD: 2991 X 2438 X 2896 mm / MINI: 3000 X 2250 X 2400 mm | |
| Weight | STANDARD: 9.8 TONS / MINI 9.5 TONS | |
| Container Type | 10FT CONTAINER | |
| Operating Ambient Temperature | GLOBAL: -30°C ~ +55°C, MIDDLE EAST: 0°C ~ +60°C | |
| Acoustic Level At 1.5M | < 85 db | |
| Humidity | 0% to 95% (NO CONDENSATION) | |
| Ingress Protection / Anticorrosion | IP55 / C3 | |
| Fire Suppression System | AEROSOL | |
| Output Isolation | ISOLATION TRANSFORMER | |
| Communication Interface | ETHERNET, RS485 COPPER BUSBAR | |
| Input/ Output Connection (1) | CE, SAFETY: EN62477-1, EMC: IEC 61000-6-2, IEC61000-6-4, BATTERY: IEC 62619, IEC 62933; PGS37, CATL CELL : UL1973, UL9540A, CE (IEC62619) | |
| Compliant With Expected Lifetime | > 10 YEARS |
AC Power
| Item | Specifications | |
|---|---|---|
| AC Power | Rated Ac Power | 430 kW |
| Powerboost Peak Power (@60 Sec) | 500 kW | |
| Powerboost Peak Power (@10 Sec) | 600 kW | |
| Input/ Output Rated Voltage | 400 Vac @ 3 PHASES 3L/N/PE | |
| Input/Output Frequency | 50/60 Hz ± 2.5 Hz |
Battery
| Item | Specifications | |
|---|---|---|
| Battery | Battery Cell Type | CATL LFP 285 Ah |
| Rated Energy Storage Capacity (2) | 430 kWh | |
| Depth Of Discharge (Dod) (3) | 90% / 80% | |
| Max Charging Rate / Rated Discharge Rate | 1C/1C | |
| Expected Lifecycles (4) | 8000 CYCLES | |
| Thermal Management (Battery System) (5) | LIQUID COOLING |
Optional Features
| Item | Specifications | |
|---|---|---|
| Optional Features | Matrixpower Scalable Output (Up To) | 1.7 MW - 4 UNITS |
| Rarnge-Extended Serial Charging Power (6) | 90 kW | |
| Smartgenset (7) | YES, adopt to DeepSea, ComAp, SmartGen etc. | |
| Premium Input/Output Connection (1) | POWERLOCK (MAX 800 A), CEE FORM CONNECTOR (16A / 32 A / 63 A) | |
| Built-In / Add-On Fast Ev Charger | 180kW / 240 kW CCS2 | |
| Iot / Gps / Ai Wat Cloud (8) | 4G / YES / YES | |
| Premium Anticorrosion (9) | C4 |
Expand all parameters
