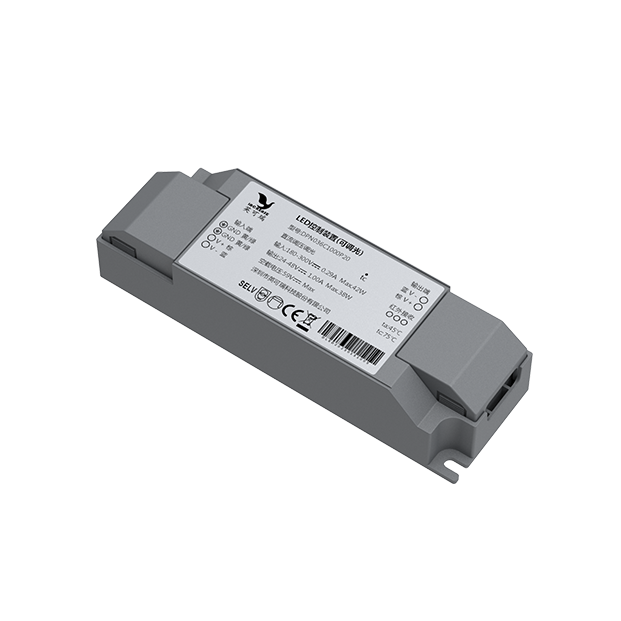

DPN Series: DC Power Line Carrier (PLC) Dimming LED Driver
The DPN Series features high-performance dimmable LED drivers designed with a wide DC input range of 200–450V and an isolated constant current (CC) output. These drivers integrate advanced DC Power Line Communication (PLC) technology, capable of decoding Manchester-encoded dimming signals directly from the power line. Fully compliant with GB/T 17743-2021, GB/T 19510.1-2023, and GB/T 19510.213-2023 standards, the DPN series is engineered for large-scale lighting infrastructures, including metro stations, maintenance depots, and commercial office complexes.
Product Features
Flexible InputUltra-Wide Input Range: Supports DC 200V–450V, fully compatible with both 220V and 375V DC rated voltages.
Short-term AC Support: Withstands 220V AC input for short-term testing with zero impact on the driver’s service life.
01
Advanced Dimming TechnologyDC PLC Dimming: Features 5Hz DC carrier dimming based on Manchester encoding, with a 100% success rate validated over 10,000 test cycles.
High-Precision Control: Supports 0%–100% brightness adjustment with a fine 1% resolution for precise lighting management.
02
Product Parameters
DPN Series
General
Electrical Specifications
Smart Dimming Parameters
Other Parameters
DPN Series Selection Table
General
| Item | Specifications | |
|---|---|---|
| General | Product Model | DPN Series |
| Cooling Method | Natural Convection | |
| Installation | Panel Mount | |
| Dimensions (L×W×H) | 140×43×30mm | |
| IP Rating | IP20 | |
| Operating Temperature | -40~75℃ | |
| Manufacturing Standards | GB/T 17743-2021, GB/T 19510.1-2023, GB/T 19510.213-2023 |
Electrical Specifications
| Item | Specifications | |
|---|---|---|
| Electrical Specifications | Input Voltage | DC200~450V |
| Output Voltage | 24~48V | |
| Rated Power Output | 5~45W |
Smart Dimming Parameters
| Item | Specifications | |
|---|---|---|
| Smart Dimming Parameters | Dimming Technology | 5Hz DC Power Line Carrier (PLC) based on Manchester Coding |
| Dimming Control | Supports Addressable, Zonal, and other dimming modes |
Other Parameters
| Item | Specifications | |
|---|---|---|
| Other Parameters | Warranty | 24 Months |
DPN Series Selection Table
| No. | Model | Output Voltage (VDC) | Output Current (mA) | Max. Output Power (W) |
| 1 | DPN036C0120P20 | 24~48 | 120 | 4.5 |
| 2 | DPN036C0140P20 | 24~48 | 140 | 5.0 |
| 3 | DPN036C0170P20 | 24~48 | 170 | 6.2 |
| 4 | DPN036C0200P20 | 24~48 | 200 | 7.2 |
| 5 | DPN036C0220P20 | 24~48 | 220 | 8.0 |
| 6 | DPN036C0240P20 | 24~48 | 240 | 8.7 |
| 7 | DPN036C0260P20 | 24~48 | 260 | 9.4 |
| 8 | DPN036C0280P20 | 24~48 | 280 | 10.1 |
| 9 | DPN036C0310P20 | 24~48 | 310 | 11.2 |
| 10 | DPN036C0340P20 | 24~48 | 340 | 12.2 |
| 11 | DPN036C0360P20 | 24~48 | 360 | 13.0 |
| 12 | DPN036C0400P20 | 24~48 | 400 | 14.4 |
| 13 | DPN036C0420P20 | 24~48 | 420 | 15.1 |
| 14 | DPN036C0440P20 | 24~48 | 440 | 15.8 |
| 15 | DPN036C0460P20 | 24~48 | 460 | 16.6 |
| 16 | DPN036C0500P20 | 24~48 | 500 | 18.0 |
| 17 | DPN036C0520P20 | 24~48 | 520 | 18.7 |
| 18 | DPN036C0540P20 | 24~48 | 540 | 19.4 |
| 19 | DPN036C0560P20 | 24~48 | 560 | 20.2 |
| 20 | DPN036C0580P20 | 24~48 | 580 | 20.9 |
| 21 | DPN036C0620P20 | 24~48 | 620 | 22.3 |
| 22 | DPN036C0650P20 | 24~48 | 650 | 23.4 |
| 23 | DPN036C0700P20 | 24~48 | 700 | 25.2 |
| 24 | DPN036C0750P20 | 24~48 | 750 | 27.0 |
| 25 | DPN036C0800P20 | 24~48 | 800 | 28.8 |
| 26 | DPN036C0850P20 | 24~48 | 850 | 30.6 |
| 27 | DPN036C0900P20 | 24~48 | 900 | 32.4 |
| 28 | DPN036C0950P20 | 24~48 | 950 | 34.2 |
| 29 | DPN036C1000P20 | 24~48 | 1000 | 36.0 |
| 30 | DPN036C1050P20 | 24~48 | 1050 | 37.8 |
| 31 | DPN036C1100P20 | 24~48 | 1100 | 39.6 |
| 32 | DPN036C1130P20 | 24~48 | 1130 | 40.7 |
| 33 | DPN036C1150P20 | 24~48 | 1150 | 41.4 |
| 34 | DPN036C1180P20 | 24~48 | 1180 | 42.5 |
| 35 | DPN036C1200P20 | 24~48 | 1200 | 43.2 |
| 36 | DPN036C1250P20 | 24~48 | 1250 | 45.0 |
Expand all parameters
Application Scenarios

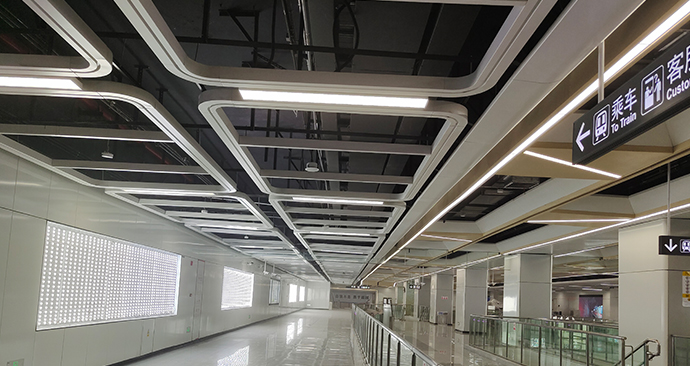

Metro Station
