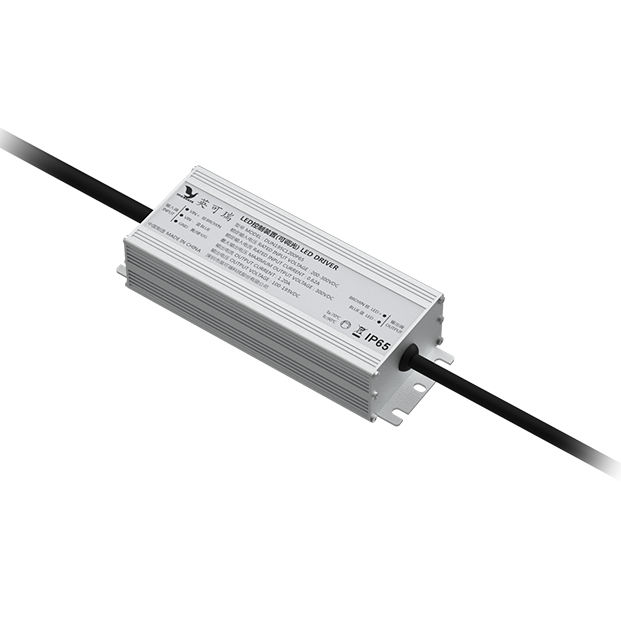

DUN Series: DC Power Line Carrier (PLC) Dimming LED Driver
The DUN Series is a range of dimmable LED drivers featuring a wide DC input range of 200–450V and a constant current (CC) output. These drivers are equipped with advanced DC Power Line Communication (PLC) technology, specifically designed to decode Manchester-encoded dimming signals.Engineered in full compliance with GB/T 17743-2021, GB/T 19510.1-2023, and GB/T 19510.213-2023 standards, the DUN series is an ideal solution for large-scale outdoor and infrastructure lighting, such as municipal roadways, landscape illumination, and tunnel systems.
Product Features
Flexible InputUltra-Wide Input Range: Supports DC 200V–450V, fully compatible with both 220V and 375V DC rated voltages.
Short-term AC Support: Withstands 220V AC input for short-term testing with zero impact on the driver’s service life.
01
Advanced Dimming TechnologyDC PLC Dimming: Features 5Hz DC carrier dimming based on Manchester encoding, with a 100% success rate validated over 10,000 test cycles.
High-Precision Control: Supports 0%–100% brightness adjustment with a fine 1% resolution for precise lighting management.
02
Product Parameters
DUN Series
General
Electrical Specifications
Smart Dimming Parameters
Other Parameters
DUN Series Selection Table
General
| Item | Specifications | |
|---|---|---|
| General | Product Model | DUN Series |
| Cooling Method | Natural Convection | |
| Installation | Panel Mount | |
| Dimensions (L×W×H) | 130×65×40mm | |
| IP Rating | IP67 | |
| Operating Temperature | -40~75℃ | |
| Manufacturing Standards | GB/T 17743-2021, GB/T 19510.1-2023, GB/T 19510.213-2023 |
Electrical Specifications
| Item | Specifications | |
|---|---|---|
| Electrical Specifications | Input Voltage | DC200~450V |
| Output Voltage | 100~195V | |
| Rated Power Output | 40~300W |
Smart Dimming Parameters
| Item | Specifications | |
|---|---|---|
| Smart Dimming Parameters | Dimming Technology | 5Hz DC Power Line Carrier (PLC) based on Manchester Coding |
| Dimming Control | Supports Addressable, Zonal, and other dimming modes |
Other Parameters
| Item | Specifications | |
|---|---|---|
| Other Parameters | Warranty | 60 Months |
DUN Series Selection Table
|
No. |
Model |
Output Voltage (VDC) |
Output Current (mA) |
Max. Output Power (W) |
|
1 |
DUN195C0200P67 |
100~195 |
200 |
39 |
|
2 |
DUN195C0220P67 |
100~195 |
220 |
43 |
|
3 |
DUN195C0240P67 |
100~195 |
240 |
47 |
|
4 |
DUN195C0260P67 |
100~195 |
260 |
51 |
|
5 |
DUN195C0280P67 |
100~195 |
280 |
55 |
|
6 |
DUN195C0300P67 |
100~195 |
300 |
59 |
|
7 |
DUN195C0320P67 |
100~195 |
320 |
62 |
|
8 |
DUN195C0340P67 |
100~195 |
340 |
66 |
|
9 |
DUN195C0360P67 |
100~195 |
360 |
70 |
|
10 |
DUN195C0380P67 |
100~195 |
380 |
74 |
|
11 |
DUN195C0400P67 |
100~195 |
400 |
78 |
|
12 |
DUN195C0420P67 |
100~195 |
420 |
82 |
|
13 |
DUN195C0440P67 |
100~195 |
440 |
86 |
|
14 |
DUN195C0460P67 |
100~195 |
460 |
90 |
|
15 |
DUN195C0480P67 |
100~195 |
480 |
94 |
|
16 |
DUN195C0500P67 |
100~195 |
500 |
98 |
|
17 |
DUN195C0520P67 |
100~195 |
520 |
101 |
|
18 |
DUN195C0550P67 |
100~195 |
550 |
107 |
|
19 |
DUN195C0600P67 |
100~195 |
600 |
117 |
|
20 |
DUN195C0650P67 |
100~195 |
650 |
127 |
|
21 |
DUN195C0700P67 |
100~195 |
700 |
137 |
|
22 |
DUN195C0750P67 |
100~195 |
750 |
146 |
|
23 |
DUN195C0800P67 |
100~195 |
800 |
156 |
|
24 |
DUN195C0850P67 |
100~195 |
850 |
166 |
|
25 |
DUN195C0900P67 |
100~195 |
900 |
176 |
|
26 |
DUN195C0950P67 |
100~195 |
950 |
185 |
|
27 |
DUN195C1000P67 |
100~195 |
1000 |
195 |
|
28 |
DUN195C1050P67 |
100~195 |
1050 |
205 |
|
29 |
DUN195C1100P67 |
100~195 |
1100 |
215 |
|
30 |
DUN195C1150P67 |
100~195 |
1150 |
224 |
|
31 |
DUN195C1200P67 |
100~195 |
1200 |
234 |
|
32 |
DUN195C1250P67 |
100~195 |
1250 |
244 |
|
33 |
DUN195C1300P67 |
100~195 |
1300 |
254 |
|
34 |
DUN195C1350P67 |
100~195 |
1350 |
263 |
|
35 |
DUN195C1400P67 |
100~195 |
1400 |
273 |
|
36 |
DUN195C1450P67 |
100~195 |
1450 |
283 |
|
37 |
DUN195C1500P67 |
100~195 |
1500 |
293 |
|
38 |
DUN195C1550P67 |
100~195 |
1550 |
302 |
|
39 |
DUN195C1600P67 |
100~195 |
1600 |
312 |
Expand all parameters
Application Scenarios

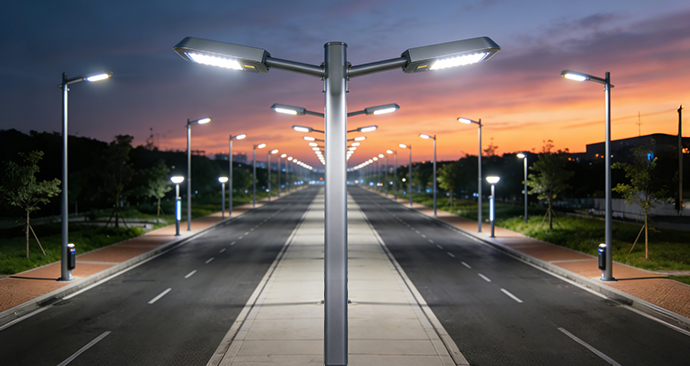

Municipal Roads

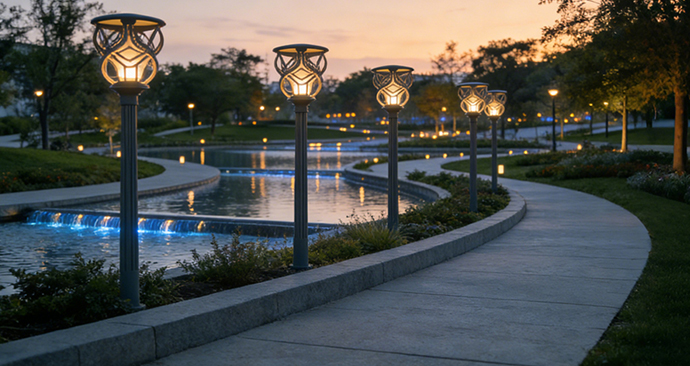

Landscape Park Areas

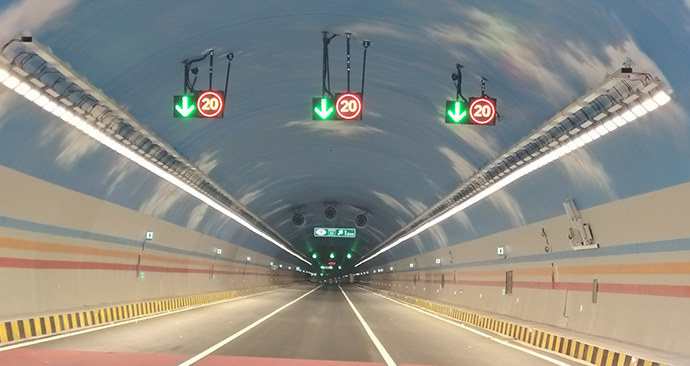

Highway Tunnel Lighting
Landscape Park Areas
