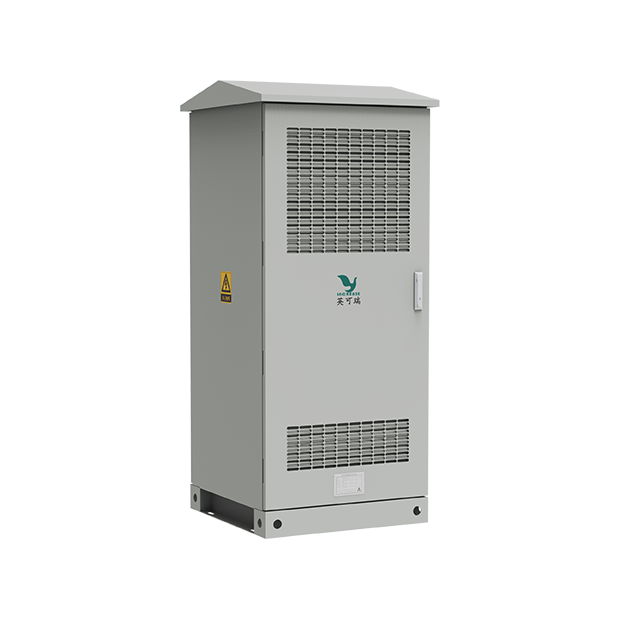

U300-G Series (Standard Edition) – Intelligent DC Lighting Dimming & Distribution Cabinet
The U300 Series (Standard Edition) is an advanced intelligent lighting distribution panel designed for high-performance power management and control. It supports a 3-phase 380V AC input and provides a stable 220V DC output. The system integrates a sophisticated Manchester-encoded DC Power Line Communication (PLC) technology for seamless dimming control.
Product Features
High Efficiency & Energy SavingCentralized Conversion: Dispersed drivers consolidated into the cabinet boost system efficiency 10%.
Advanced Conversion: 3rd-gen SiC rectifiers deliver ≥96% peak efficiency.
Demand-Based Control: Smart dimming cuts lighting energy use up to 50%.
01
Safety & ProtectionFloating DC Output: The rectifier's electromagnetic isolation unit outputs floating DC voltage — no single-pole shock risk, no leakage on single-pole grounding.
Insulation Monitoring: Detects insulation status of the DC bus and all branch circuits, fully monitoring supply cable insulation.
02
Intelligent MonitoringPower Distribution Monitoring: The cabinet provides comprehensive smart distribution functions, including energy consumption statistics, rectifier module status monitoring and control, output branch status monitoring and control, and internal fault alarm monitoring.
Lighting Monitoring: The cabinet provides lighting branch monitoring and control plus diversified smart dimming functions.
03
Exceptional ReliabilityEnvironmental Adaptability: Sealed design resists dust and salt spray, handling harsh environments with ease.
Quick Replacement: Rectifier modules support hot-swap replacement on fault—a single module failure won't affect power supply. Branch control modules also support hot-swap replacement, so one module's failure won't affect other branches.
04
Product Parameters
U300-G Series (Standard)
General
Distribution Parameters
Smart Dimming Parameters
Other Parameters
General
| Item | Specifications | |
|---|---|---|
| General | Product Model | U300-G Series (Standard) |
| Cooling Method | Variable Speed Forced Air Cooling | |
| Installation | Floor-mounted (Customizable top/bottom cable entry) | |
| Dimensions (W×H×D) | 800 ×800 × 2000 mm (or custom) | |
| Ingress Protection | IP55 | |
| Operating Temperature | -20~55℃ | |
| Manufacturing Standards | GB/T 3797-2016, GB/T 7251.1-2020 |
Distribution Parameters
| Item | Specifications | |
|---|---|---|
| Distribution Parameters | Input Voltage | Rated AC 380V ± 20% |
| Output Voltage | Rated DC 220V (200V–300V adjustable) | |
| Rated Power Output | 10kW–60kW (Higher power customizable) | |
| Output Branches | 8–32 controllable branches (More branches customizable) | |
| Branch Power | Max 20kW per branch (Higher power customizable) | |
| Insulation Monitoring | Real-time monitoring for DC bus and branch insulation status |
Smart Dimming Parameters
| Item | Specifications | |
|---|---|---|
| Smart Dimming Parameters | Dimming Technology | 5Hz DC Power Line Carrier (PLC) based on Manchester Coding |
| Dimming Method | Zone-based dimming | |
| Dimming Strategy | Zone-based Scheduled Dimming, Sensor-linked (zone) dimming etc. |
Other Parameters
| Item | Specifications | |
|---|---|---|
| Other Parameters | Monitoring Data | Power consumption stats, dimming status, fault alarms |
| Communication | MODBUS-RTU (RS-485), MODBUS-TCP (Ethernet) |
Expand all parameters
Application Scenarios
High Efficiency & Energy Saving
Industrial Park Lighting
Landscape Park Areas
Municipal Roads
