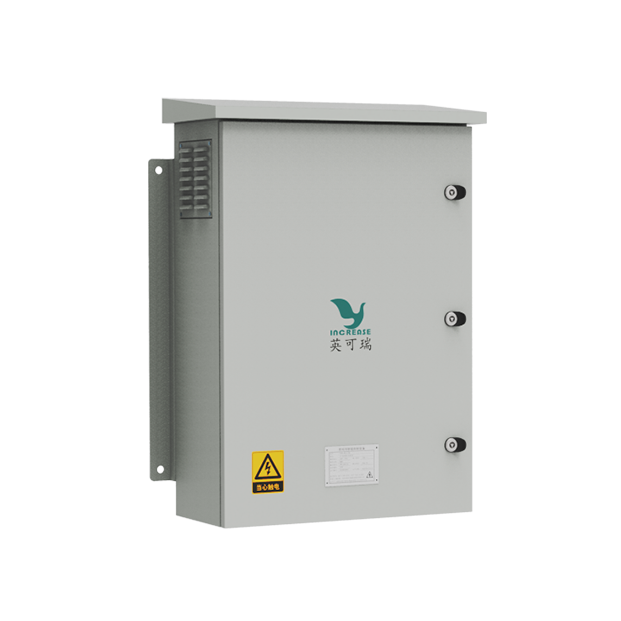

U048-W Series Intelligent DC Safety Lighting Distribution Panel
The U048-W Series is an intelligent distribution unit engineered for SELV (Safety Extra-Low Voltage) DC lighting systems. It features a 3-phase 380Vac input and delivers a safe, regulated 48Vdc output, providing maximum electrical safety for public environments.
Product Features
High Efficiency & Energy SavingCentralized Conversion: Integrating dispersed driver units into the distribution cabinet increases overall system efficiency by 10%.
High-Efficiency Conversion: Utilizes soft-switching LLC rectifier modules to achieve a peak AC/DC conversion efficiency of ≥94%.
Smart Lighting Control: Features intelligent control logic to enable "lighting-on-demand," reducing energy consumption by up to 50%.
01
Safety & ProtectionFloating DC Output: The electromagnetic isolation units within the rectifier modules ensure a floating ground DC output. This design eliminates the risk of electric shock from single-pole contact and prevents leakage during single-pole grounding.
Extra-Low Voltage (ELV): Operates on a safe DC 48V output, strictly adhering to safety standards for lighting power supplies.
02
Intelligent MonitoringDistribution Management: Comprehensive statistics on power usage, status monitoring of rectifier modules, and internal fault diagnostics.
Lighting Control: Integrated monitoring for each lighting branch allows for precise control and customizable scheduling based on real-time requirements.
03
Exceptional ReliabilityEnvironmental Adaptation: Fully sealed design with superior dust and salt-mist resistance, ideal for harsh environments.
Hot-Swappable Maintenance: Both rectifier and branch control modules support hot-swapping. A single module failure will not interrupt the overall power supply or affect the operation of other circuits, ensuring zero downtime during maintenance.
04
Product Parameters
U048-W Series
General
Distribution Parameters
Other Parameters
General
| Item | Specifications | |
|---|---|---|
| General | Product Model | U048-WSeries |
| Cooling Method | Variable Speed Forced Air Cooling | |
| Installation | Floor-mounted (Customizable top/bottom cable entry) | |
| Dimensions (W×H×D) | 600 × 800 × 300 mm (or custom) | |
| Ingress Protection | IP41 (Indoor) / IP55 (Outdoor) | |
| Operating Temperature | -20~55℃ | |
| Manufacturing Standards | GB/T 3797-2016, GB/T 7251.1-2020 |
Distribution Parameters
| Item | Specifications | |
|---|---|---|
| Distribution Parameters | Input Voltage | Rated AC 380V ± 20% or AC220V±20% |
| Output Voltage | Rated DC 48V (36V–60V adjustable) | |
| Rated Power Output | 3kW–6kW (Higher power customizable) | |
| Output Branches | 4–8 controllable branches (More branches customizable) | |
| Branch Power | Max 240kW per branch (Higher power customizable) | |
| Insulation Monitoring | Real-time monitoring for DC bus and branch insulation status |
Other Parameters
| Item | Specifications | |
|---|---|---|
| Other Parameters | Monitoring Data | Power consumption stats, dimming status, fault alarms |
| Communication | MODBUS-RTU (RS-485), MODBUS-TCP (Ethernet) |
