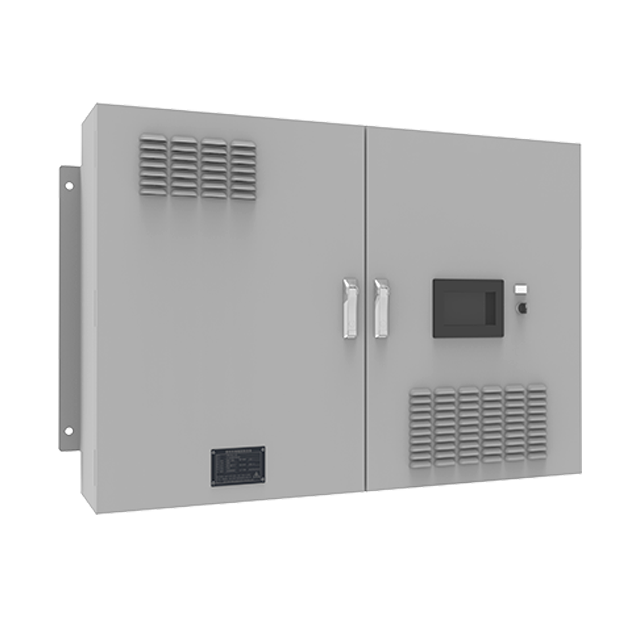

U375-W Series Smart DC Lighting Distribution Cabinet
The U375-W Series is an intelligent lighting distribution system featuring a 380V AC three-phase input and a 375V DC output. It integrates advanced DC Power Line Communication (PLC) dimming based on Manchester encoding. Engineered in compliance with GB/T 3797-2016 and GB/T 7251.8-2020 standards, this series is ideal for large-scale applications such as tunnels and industrial parks. It supports versatile intelligent controls, including zonal dimming, full-area scene presets, and sensor-based automated dimming.
Product Features
High Efficiency & Energy SavingCentralized Conversion: Integrating dispersed driver units into the distribution cabinet increases overall system efficiency by 10%.
Advanced Conversion: Utilizing 3rd-generation SiC (Silicon Carbide) rectifiers, achieving peak conversion efficiency of ≥96%.
Intelligent Lighting Power Management: Features versatile smart dimming capabilities designed for on-demand illumination, effectively reducing energy consumption by up to 50%.
01
Safety & ProtectionFloating DC Output: The electromagnetic isolation units within the rectifier modules ensure a floating ground DC output. This design eliminates the risk of electric shock from single-pole contact and prevents leakage during single-pole grounding.
Insulation Monitoring: Real-time insulation status monitoring for the DC bus and all branch circuits ensures cable safety.
02
Intelligent MonitoringDistribution Management: Comprehensive statistics on power usage, status monitoring of rectifier modules, and internal fault diagnostics.
Lighting Control: Real-time monitoring and versatile control strategies for individual lighting branches.
03
Exceptional ReliabilityEnvironmental Adaptation: Fully sealed design with superior dust and salt-mist resistance, ideal for harsh environments.
Quick Replacement: Rectifier modules are hot-swappable for seamless replacement without interrupting the power supply, while branch dimming modules also support hot-swapping to ensure that a single module failure does not disrupt power delivery to other circuits.
04
Product Parameters
U375-W Series
General
Distribution Parameters
Smart Dimming Parameters
Other Parameters
General
| Item | Specifications | |
|---|---|---|
| General | Product Model | U375-W Series |
| Cooling Method | Variable Speed Forced Air Cooling | |
| Installation | Floor-mounted (Customizable top/bottom cable entry) | |
| Dimensions (W×H×D) | 1300 × 900 × 300mm (or custom) | |
| Ingress Protection | IP41 | |
| Operating Temperature | -20~55℃ | |
| Manufacturing Standards | GB/T 3797-2016, GB/T 7251.1-2020 |
Distribution Parameters
| Item | Specifications | |
|---|---|---|
| Distribution Parameters | Input Voltage | Rated AC 380V ± 20% |
| Output Voltage | Rated DC 375V (300V–500V adjustable) | |
| Rated Power Output | 10kW–20kW (Higher power customizable) | |
| Output Branches | 4–16 controllable branches (More branches customizable) | |
| Branch Power | Max 5kW per branch (Higher power customizable) | |
| Insulation Monitoring | Real-time monitoring for DC bus and branch insulation status |
Smart Dimming Parameters
| Item | Specifications | |
|---|---|---|
| Smart Dimming Parameters | Dimming Technology | 5Hz DC Power Line Carrier (PLC) based on Manchester Coding |
| Dimming Method | Zone-based dimming | |
| Dimming Strategy | Zone-based Scheduled Dimming, Sensor-linked (zone) dimming etc. |
Other Parameters
| Item | Specifications | |
|---|---|---|
| Other Parameters | Monitoring Data | Power consumption stats, dimming status, fault alarms |
| Communication | MODBUS-RTU (RS-485), MODBUS-TCP (Ethernet) |
Expand all parameters
