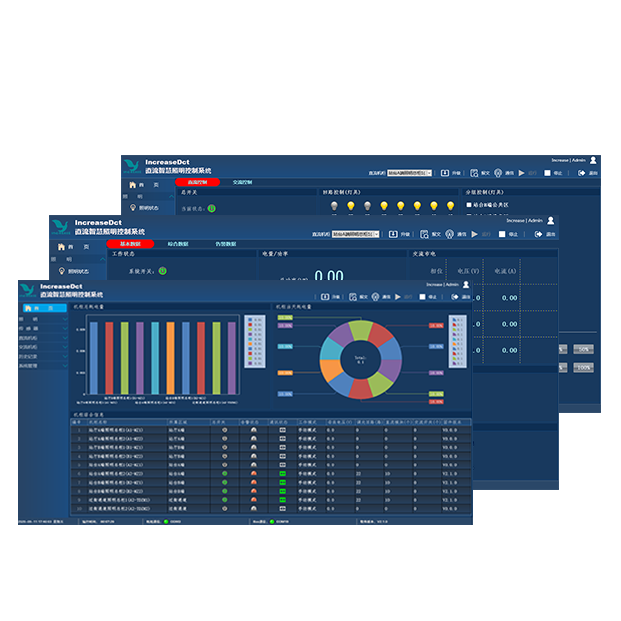

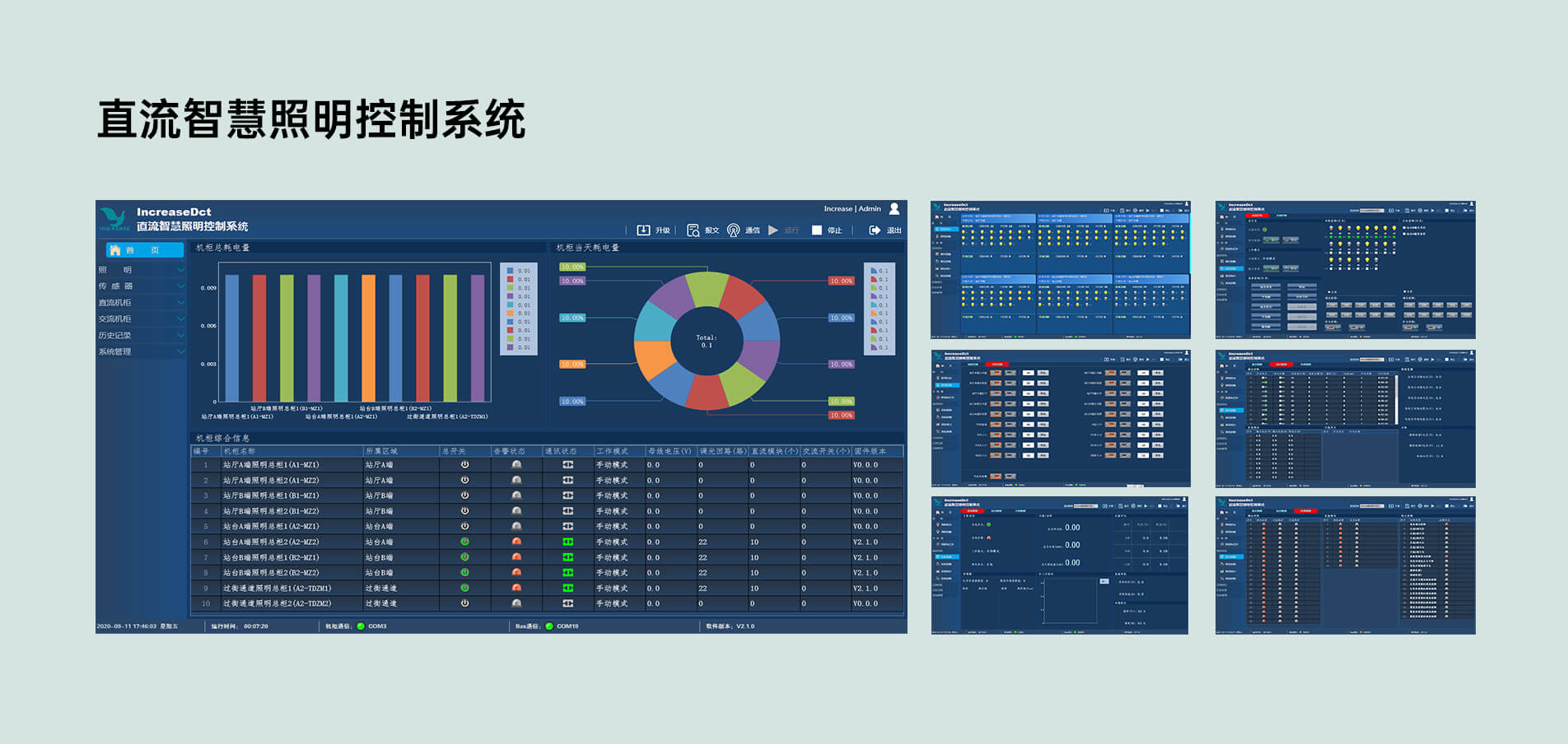

Smart Lighting Management Software MONITOR-CS-01
The MONITOR-CS-01 is a high-performance, 64-bit Windows-based host monitoring application specifically engineered for Smart DC Lighting Solutions. Built on a robust Client-Server (C/S) architecture utilizing the WPF framework and SQL Server database, this software enables real-time data acquisition from all distribution cabinets, flexible intelligent lighting control strategies, multi-dimensional energy metering, and comprehensive tracking of current and historical fault alarms. To ensure seamless system integration, it provides open communication interfaces and standard protocols for real-time data synchronization with higher-level integrated monitoring systems or third-party Centralized Management Systems (CMS).
Product Features
Stable & Robust ArchitectureLeverages a C/S architecture combined with the WPF framework and SQL Server database to ensure high-speed operational efficiency and enterprise-grade data security.
01
Comprehensive Functional SuiteEncompassing all core requirements for DC smart lighting, including real-time data acquisition, intelligent control logic, multi-dimensional energy metering, and detailed fault analytics.
02
Versatile System AdaptabilityEngineered for 64-bit Windows platforms, providing seamless monitoring compatibility across diverse environments, from rail transit networks to complex commercial architectures.
03
Flexible System InterconnectivityFeatures open communication interfaces and standard protocols, enabling seamless, real-time data synchronization with higher-level integrated management systems (CMS).
04
Product Parameters
Smart Lighting Management Software
General
Functional Parameters
General
| 项目 | 参数指标 | |
|---|---|---|
| General | Product Model | Smart Lighting Management Software MONITOR-CS-01 |
| Operating System | 64-bit Windows 7/10 | |
| Recommended Hardware |
CPU: Intel 10th Gen Core i5 (x64) or higher RAM: 32GB DDR4 or higher Storage: 1TB SSD or higher Display: 16-inch or larger Interfaces: 100M Ethernet × 1, RS-485 × 4, USB 2.0 × 4 |
|
| System Architecture | Client/Server (C/S) Architecture | |
| Development Stack | WPF Programming Language: C# | |
| Database | SQL Server | |
| Communication |
Upstream (To Management System): Modbus RTU, Modbus TCP Downstream (To Field Devices): Modbus RTU |
Functional Parameters
| Item | Specifications | |
|---|---|---|
| Functional Parameters | Data Acquisition | Enables real-time monitoring and data acquisition for all DC lighting distribution cabinets, with support for up to 64 units simultaneously. |
| Intelligent Control | Supports remote online control over key operational parameters, including main breakers and individual branch circuit switches. | |
| Smart Dimming Logic | Allows for online configuration of sophisticated lighting strategies, such as scene presets and zonal lighting control. | |
| Energy Analytics | Provides detailed power consumption statistics categorized by day, month, and year for each distribution cabinet. | |
| Alarm & Event Management | Features a centralized dashboard for real-time fault alerts, historical operation logs, and historical alarm archives. | |
| User Access Control | Equipped with multi-level (hierarchical) user permission management to ensure system security and operational integrity. |
Expand all parameters
Application Scenarios

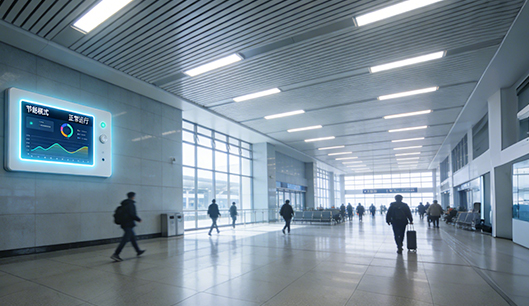

Metro Station
Metro Depot
Intelligent Building Lighting
Intercity Transportation Hub
