30kW Air-Cooled Output: 150~1000Vdc

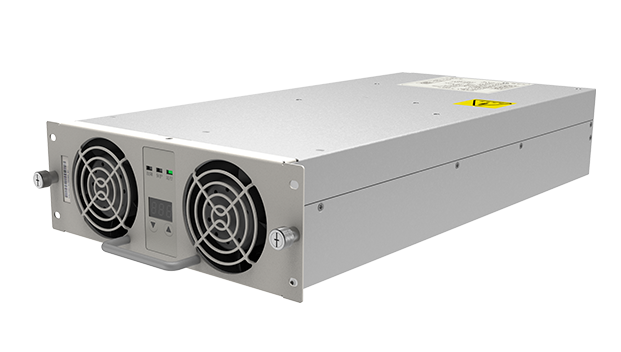

EVR1000-30000E

The EVR1000-30000E is a high-efficiency, low-noise charging module launched by INCREASE. It features an ultra-wide constant power range (300Vdc - 1000Vdc), a broad operating temperature range, high reliability, high efficiency, and a high power factor. Boasting additional advantages such as high power density, low noise, and low standby power consumption, it satisfies the charging requirements of various electric vehicles. Furthermore, the product is CE and UL certified, meeting the stringent requirements of the European and American markets and empowering customers to accelerate their global market presence.

Product Features

High Efficiency & Energy Saving

High efficiency: Peak efficiency ≥ 96.5%, reducing charging operation costs.

High power density: High power density saves space.

Low standby power consumption: The module features ultra-low standby function, reducing operation costs.

Excellent Performance

Wide constant power range: 300V~1000V, covering all mainstream electric vehicles and meeting fast charging requirements.

Wide output voltage range: 150V~1000V, suitable for charging various electric vehicles.

Seamless compatibility: Compliant with State Grid three-unified dimensions, enabling seamless integration with strong compatibility.

Safety & Reliability

Full potting protection: Adopts full potting technology for excellent heat dissipation, high reliability, long service life, and enhanced environmental protection against salt spray and mold.

Battery anti-reflux protection: Built-in output voltage discharge and battery anti-reflux protection circuits.

Comprehensive certifications: CE and UL certifications meet the requirements of European and American markets.

Wide Adaptability

Environmental adaptation: Wide operating temperature range of -40°C ~ 75°C, suitable for harsh working environments.

Low input harmonics: Stronger adaptability to the power grid.

Product Parameters

EVR1000-30000E

General

DC Output

AC Input

Operating Environment

Other Parameters

General

	Item	Specification
General	Model	EVR1000-30000E
	Dimensions	248mm (W) × 86mm (H) × 461.2mm (D, Excluding handle)
	Weight	Approx. 15kg
	Output Rating	1000V@30A
	Output Voltage Range	150V - 1000V (Constant power: 300V - 1000V, 30kW)
	Output Current Range	0A~100A (T≤55℃)

DC Output

	Item	Specification
DC Output	Peak-to-Peak Noise	≤1%
	Voltage Regulation Accuracy	≤±0.5%
	Current Regulation Accuracy	≤±1%
	Current Sharing	≤±5%
	Efficiency	≥96.5% (Peak)

AC Input

	Item	Specification
AC Input	Rated Input Voltage	3-Phase 380Vac / 480Vac
	Input Voltage Range	320Vac - 520Vac (Full load); 270Vac - 320Vac (Linear derating to half load)
	Input Current	＜60A
	Frequency	45Hz～65Hz
	Power Factor (PF)	≥0.99
	Total Harmonic Distortion (THD)	≤5%
	Input Protection	Fuses; Surge Protection Circuit (SPD)

Operating Environment

	Item	Specification
Operating Environment	Coolant Temperature	-40℃～55℃(Normal); 55℃~75℃(Derating)
	Storage Temperature	-40℃～75℃
	Relative Humidity	0～95%
	Altitude	Full load output below 2000m

Other Parameters

	Item	Specification
Reliability & Compliance	Dielectric Strength	Input-Chassis / Output-Chassis / Input-Output: DC 3535V, 1min Input/Output-Comm: DC 4300V, 1min; Comm-Chassis: DC 1400V, 1min
	MTBF	＞120,000 Hours
	Safety Standards	EN 61851-23:2014 EN IEC61851-1:2019 IEC 61851-1:2014 UL 2202:2022, CSA C22.2 No. 346：22 UL 1564:2015,CAN/CSA C22.2 NO. 107.2.01+GI1+GI2(R2021)
	EMC Standards EMC	EN IEC 61000-6-2:2019 (Immunity), EN IEC 61000-6-4:2019 (Emission); EN IEC 61851-21-2:2021
Communication	Communication Interface	CAN
Communication	Max. Units in Parallel	60 units
Protection & Isolation: Output anti-backflow diode failure isolation; integrated output discharge function.
Monitoring: Faults and status reported via CAN bus; includes 3-LED front panel indicators.
