20kW Air-Cooled Output: 150~1000Vdc
EVR1000-20000E

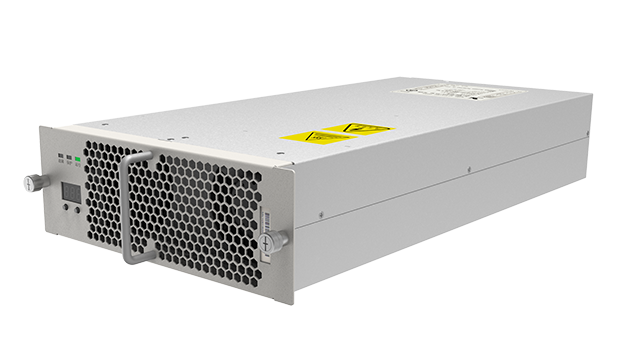

The EVR1000-20000E is an intelligent AC/DC charging module that is CE and UL certified. It features an ultra-compact footprint and high power density, significantly saving installation space. This product integrates prominent advantages such as high reliability, high efficiency, a high power factor, low noise, and low standby power consumption, effectively meeting the charging requirements of various electric vehicles.
Product Features
High Efficiency & Energy SavingHigh power density: High power density saves space.
Ultra-high efficiency: Peak efficiency ≥ 95%, reducing charging operation costs.
Low standby power consumption: The module features ultra-low standby function, directly reducing operation costs.
01
Excellent PerformanceWide constant power range: 300V~1000V, covering all mainstream electric vehicles and meeting fast charging requirements.
Wide output voltage range: 150V~1000V, suitable for charging various electric vehicles.
Comprehensive certifications: CE and UL dual certifications meet the requirements of European and American markets.
02
Safety & ReliabilityFull potting protection: Adopts full potting technology for excellent heat dissipation, high reliability, long service life, and enhanced environmental protection against salt spray and mold.
Battery anti-reflux protection: Built-in output voltage discharge and battery anti-reflux protection circuits.
03
Wide AdaptabilityEnvironmental adaptation: Wide operating temperature range of -40°C ~ 75°C, suitable for harsh working environments.
Low input harmonics: Stronger adaptability to the power grid.
Protocol compatibility: Compatible with Infineon and State Grid standard communication protocols.
04
Product Parameters
EVR1000-20000E
General
AC Input
DC Output
Operating Environment
Other Parameters
General
|
Item |
Specification |
|
|
General |
Model |
EVR1000-20000E |
|
Dimensions |
248mm (W) × 84mm (H) × 461.2mm (D, Excluding handle) |
|
|
Weight |
Approx. 10kg |
AC Input
|
Item |
Specification |
|
|
AC Input |
Rated Input Voltage |
3-Phase 380Vac / 480Vac |
|
Input Voltage Range |
270Vac - 528Vac |
|
|
Input Current |
≤40A |
|
|
Frequency |
50/60Hz |
|
|
Power Factor (PF) |
≥0.99 |
|
|
Total Harmonic Distortion (THD) |
≤5% |
DC Output
|
Item |
Specification |
|
|
DC Output |
Rated Output Power |
20kW |
|
Max. Output Current |
66.7A |
|
|
DC Output Voltage Range |
DC150V~1000V |
|
|
Peak-to-Peak Noise |
≤±0.5% |
|
|
Voltage Regulation Accuracy |
≤±0.5% |
|
|
Current Regulation Accuracy |
≤±1% |
|
|
Current Sharing |
≤±5% |
|
|
Efficiency |
≥95% (Peak) |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Coolant Temperature |
-40℃～55℃(Normal); 55℃~70℃(Derating) |
|
Storage Temperature |
-40℃～75℃ |
|
|
Relative Humidity |
0～95% |
|
|
Altitude |
Full load output below 2000m |
Other Parameters
|
Item |
Specification |
|
|
Reliability & Compliance |
MTBF |
＞120,000 Hours |
|
Communication |
Communication Interface |
CAN |
|
Max. Units in Parallel |
60 units |
|
|
Protection & Isolation: Output anti-backflow diode failure isolation; integrated output discharge function. |
||
|
Alarms and status are reported to the monitoring system via CAN bus, complemented by three LED indicators and two buttons on the front panel. |
||
