StockCode
300713
3.5kW Single Phase Output:30~100Vdc
EVR100-3500

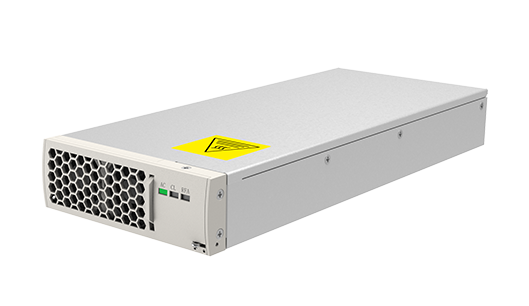

The EVR100-3500 high-frequency switching rectifier module is an AC/DC power unit with AC voltage input and adjustable DC voltage output. Utilizing DSP digital control, resonant soft-switching, and Active PFC technologies, the module is protected by multiple patents. It is characterized by high power density, a high power factor, low harmonic distortion, and high efficiency, with the capability for multi-module parallel operation.
Product Features
High Efficiency & Energy SavingHigh power density: High power density and small size reduce system costs.
Ultra-high efficiency: Peak efficiency ≥ 93.5%, reducing charging operation costs.
01
Excellent PerformanceOutput voltage range: 200V~420V.
Comprehensive protection: Equipped with complete protection circuits, including output over-voltage protection, input under-voltage/over-voltage protection, over-temperature protection, and fan failure protection.
02
Safety & ReliabilityFull potting protection: Adopts full potting technology for excellent heat dissipation, high reliability, long service life, and enhanced environmental protection against salt spray and mold.
Reduced heat dissipation requirements: Simplified heat dissipation design reduces fan noise and improves reliability.
03
Wide AdaptabilityUnlimited scenarios: Wide operating temperature range of -40°C ~ 75°C, suitable for harsh working environments.
Low input harmonics: Stronger adaptability to the power grid.
04
Product Parameters
EVR100-3500
General
DC Output
AC Input
Operating Environment
Other Parameters
General
|
Item |
Specification |
|
|
General |
Model |
EVR100-3500 |
|
Dimensions |
125mm×41mm×303mm（W×H×D) |
|
|
Weight |
Approx. 2kg |
DC Output
| Item | Specification | |
|---|---|---|
| DC Output | Rated Output Power | 3.5kW |
| Rated Output Current | 35A | |
| Output Voltage Range | 30VDC~100VDC | |
| Current Limit Adjustable Range | 10%~120% | |
| Peak-to-Peak Noise/Ripple | ≤±0.5% | |
| Voltage Regulation Accuracy | ≤±0.5% | |
| Current Regulation Accuracy | ≤±1% | |
| Current Sharing | ≤±5% | |
| Efficiency | 92.5%/93% | |
| Short Circuit | Current limiting mode; auto-recovery after fault removal | |
| Over-current | Internal shutdown; auto-recovery after fault removal | |
| Over-voltage | Auto-shutdown and Locked; manual reset or power cycle required |
AC Input
| Item | Specification | |
|---|---|---|
| AC Input | Rated Input Voltage | 220VAC/220VDC; 110VAC/110VDC (Half Load) |
| Input Voltage Range |
176VAC - 300VAC (Full Load); 176VAC - 85VAC (Derating) 176VDC - 400VDC (Full Load); 176VDC - 85VDC (Derating) |
|
| Input Current | ＜25A | |
| Frequency | 45Hz～65Hz | |
| Power Factor (PF) | ≥0.99 | |
| Current Harmonic Distortion (THD) | ≤5% | |
| Input Startup Voltage | ≥85VAC or 85VDC | |
| Input Sampling Accuracy | ±5Vac or Vdc | |
| Input overvoltage and undervoltage |
AC Input: Shutdown > 300Vac, Recovery < 285Vac; Shutdown < 80Vac, Recovery > 95Vac; Accuracy +/- 5Vac DC Input: Shutdown > 420Vdc, Recovery < 405Vdc; Shutdown < 80Vdc, Recovery > 95Vdc; Accuracy +/- 5Vdc |
|
| Input Protection | Fuses; Surge Protection Circuit |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Coolant Temperature |
-40℃～45℃(Normal); 45℃~75℃(Derating) |
|
Storage Temperature |
-40℃～75℃ |
|
|
Relative Humidity |
0～95% |
|
|
Altitude |
Full load output below 2000m |
Other Parameters
|
Item |
Specification |
|
|
Reliability & Compliance |
Dielectric Strength |
|
|
MTBF |
＞120,000 Hours |
|
|
Communication |
Communication Interface |
CAN |
|
Max. Units in Parallel |
60 units |
Expand all parameters
Application Scenarios
Electric Forklift
AGV
Special-Purpose Vehicles
Electric Forklift
