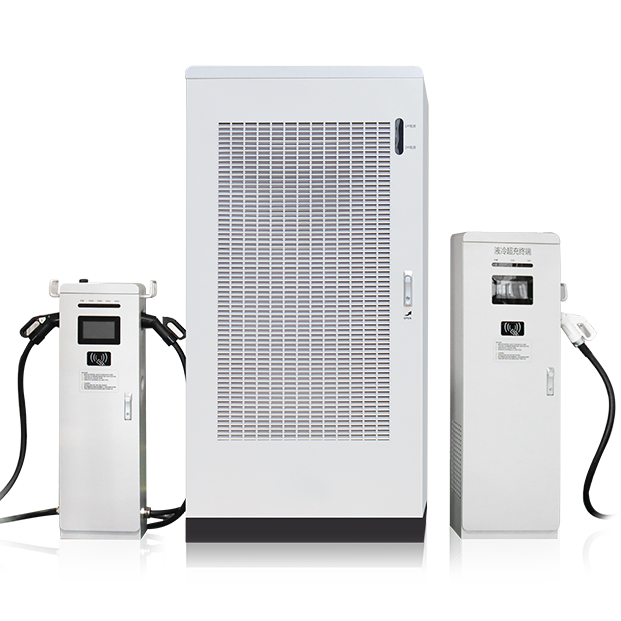

360~480kW Split-type DC Charger
ECAN-360~480A
The ECAN-360~480A floor-mounted split-type EV DC constant power fast charger offers a choice of high-efficiency 30kW/40kW constant power charging modules, with a maximum output voltage of up to 1000V. It supports 2 to 8 charging connectors (guns) and is suitable for parking spaces in public operations, highways, heavy-duty trucks, and public transit. The charger easily adapts to the charging requirements of various electric vehicles, ensuring a process that is both rapid and secure.
Product Features
Safety & ReliabilityProtection class IP55: Features dustproof, waterproof, anti-salt spray and anti-rust capabilities, and adapts to an operating environment of -30°C to +70°C (derated output above 55°C).
Multiple electrical protections: Includes input over-voltage protection, output over-voltage protection, output over-current protection, short-circuit protection, battery reverse connection protection, insulation protection, door access protection, BMS data abnormality protection, emergency stop protection, and electromagnetic lock abnormality protection, ensuring a safe charging process.
01
Intelligent InteractionFlexible usage: Supports card swiping, QR code scanning, password entry, and plug-and-charge startup methods to meet commercial operation requirements.
Diverse communication interfaces: Optional 4G, Ethernet, or WIFI modules, supporting remote fault diagnosis, debugging, and OTA upgrades.
02
Intelligent OperationGrid coordination: Supports orderly charging to balance grid load and relieve grid pressure.
Time-of-use metering & energy saving: Supports peak-valley time-of-use metering, allowing users to set charging during low-price periods to reduce costs.
03
Energy Saving & Environmental ProtectionUltra-low power consumption: Low system standby power consumption, with the whole machine standby power consumption≤100W
04
Product Parameters
360kW Split-type DC Charger
480kW Split-type DC Charger
General
Input Characteristics
Output Specifications
Operating Environment
Other Parameters
General
Input Characteristics
Output Specifications
Operating Environment
Other Parameters
General
|
Item |
Specification |
|
|
General |
Model |
INCEVD-360A |
|
Cooling Method |
Power Hub: Forced Air Cooling; Terminals: Forced Air / Liquid Cooling |
|
|
Startup Options |
Password, QR Code, RFID Card, VIN Code, Plug & Charge |
|
|
Dimensions |
Power Hub: 1000 mm (W) * 850 mm (D) * 1900 mm (H) |
|
|
Maintenance Access |
Power Hub: Front & Rear access; Terminals: Front access, supports wall-mounted installation |
|
|
Notes |
1. 600A Liquid-Cooled Connector: Supports a maximum cable length of 7 meters. 2. 800A Liquid-Cooled Connector: Supports a maximum cable length of 5 meters. 3. Customized Products: Final specifications are subject to the specific Technical Requirements/Agreements. |
Input Characteristics
|
Item |
Specification |
|
|
Input Characteristics |
Input System |
3-Phase 5-Wire |
|
Rated Voltage |
380V士20% |
|
|
Grid Frequency |
45~65Hz |
|
|
Power Factor (PF) |
≥0.99 |
|
|
Total Harmonic Distortion (THD) |
≤5% |
Output Specifications
|
Item |
Specification |
|
|
Output Specifications |
Output Voltage |
DC 150~1000V |
|
Output Voltage |
DC 300~1000V | |
|
System Efficiency |
≥96%(At half load and above) |
|
|
Auxiliary Power Supply |
Default 12V, optional 24V; supports manual/auto switching |
|
|
Standby Power Consumption |
≤100W |
|
|
Output Channels |
2-6 connectors | |
|
Total Max. Output Current |
1200 | |
|
Terminal Output Current |
Standard Fast Charge (Single): 250A |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-30℃～+70℃(Derating above 55℃) |
|
Storage Temperature) |
-40℃～+75℃ |
|
|
Operating Humidity |
5%-95%RH, Non-condensing |
|
|
Altitude |
≤2000m (Derating above 2000m) |
|
|
Noise Level |
≤65dB（Measured at 1 meter from the cabinet） |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Protection Functions |
Comprehensive Safety Features: The system includes input over/under voltage protection, output over-voltage/over-current protection, short circuit, and battery reverse polarity protection. It is also equipped with insulation monitoring, door access control, BMS data abnormality detection, and an emergency stop. Advanced safeguards such as electronic lock malfunction, abnormal plug extraction, and lightning protection are standard, with optional tilt and water immersion alarms available. |
|
Enclosure Rating |
IP55 |
|
|
Dust Protection |
G3 Grade Dust Filter |
|
|
Monitoring & Comm. |
BMS Communication |
Compatible with both old and new GB/T standards |
|
Remote Comm. |
thernet, 4G (Free data during warranty), Wi-Fi, Bluetooth |
|
|
HMI |
7-inch color touchscreen (900 nits peak brightness) |
Expand all parameters
General
|
Item |
Specification |
|
|
General |
Model |
INCEVD-480A |
|
Cooling Method |
Power Hub: Forced Air Cooling; Terminals: Forced Air / Liquid Cooling |
|
|
Startup Options |
Password, QR Code, RFID Card, VIN Code, Plug & Charge |
|
|
Dimensions |
Power Hub: 1000 mm (W) * 850 mm (D) * 1900 mm (H) |
|
|
Maintenance Access |
Power Hub: Front & Rear access; Terminals: Front access, supports wall-mounted installation |
|
|
Notes |
1. 600A Liquid-Cooled Connector: Supports a maximum cable length of 7 meters. 2. 800A Liquid-Cooled Connector: Supports a maximum cable length of 5 meters. 3. Customized Products: Final specifications are subject to the specific Technical Requirements/Agreements. |
Input Characteristics
|
Item |
Specification |
|
|
Input Characteristics |
Input System |
3-Phase 5-Wire |
|
Rated Voltage |
380V士20% |
|
|
Grid Frequency |
45~65Hz |
|
|
Power Factor (PF) |
≥0.99 |
|
|
Total Harmonic Distortion (THD) |
≤5% |
Output Specifications
|
Item |
Specification |
|
|
Output Specifications |
Output Voltage |
DC 150~1000V |
|
Output Voltage |
DC 300~1000V | |
|
System Efficiency |
≥96%(At half load and above) |
|
|
Auxiliary Power Supply |
Default 12V, optional 24V; supports manual/auto switching |
|
|
Standby Power Consumption |
≤100W |
|
|
Output Channels |
2–8 connectors, supporting 1 × Supercharge channel | |
|
Total Max. Output Current |
1600 | |
|
Terminal Output Current |
Standard Fast Charge (Single): 250A |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Operating Temperature |
-30℃～+70℃(Derating above 55℃) |
|
Storage Temperature) |
-40℃～+75℃ |
|
|
Operating Humidity |
5%-95%RH, Non-condensing |
|
|
Altitude |
≤2000m (Derating above 2000m) |
|
|
Noise Level |
≤65dB（Measured at 1 meter from the cabinet） |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Protection Functions |
Comprehensive Safety Features: The system includes input over/under voltage protection, output over-voltage/over-current protection, short circuit, and battery reverse polarity protection. It is also equipped with insulation monitoring, door access control, BMS data abnormality detection, and an emergency stop. Advanced safeguards such as electronic lock malfunction, abnormal plug extraction, and lightning protection are standard, with optional tilt and water immersion alarms available. |
|
Enclosure Rating |
IP55 |
|
|
Dust Protection |
G3 Grade Dust Filter |
|
|
Monitoring & Comm. |
BMS Communication |
Compatible with both old and new GB/T standards |
|
Remote Comm. |
thernet, 4G (Free data during warranty), Wi-Fi, Bluetooth |
|
|
HMI |
7-inch color touchscreen (900 nits peak brightness) |
Expand all parameters
Application Scenarios

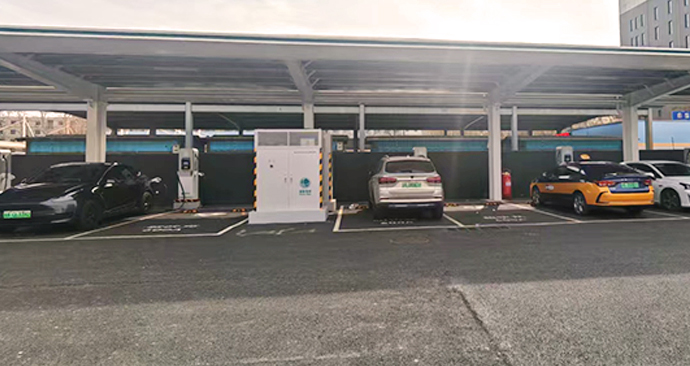

Beijing Jiangzhuanghu Charging Station

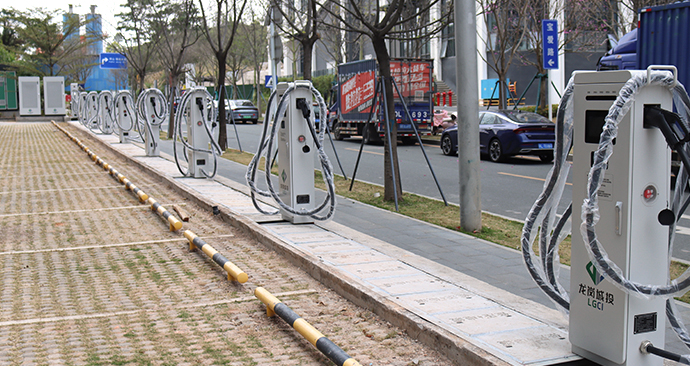

Longgang Urban Investment Case

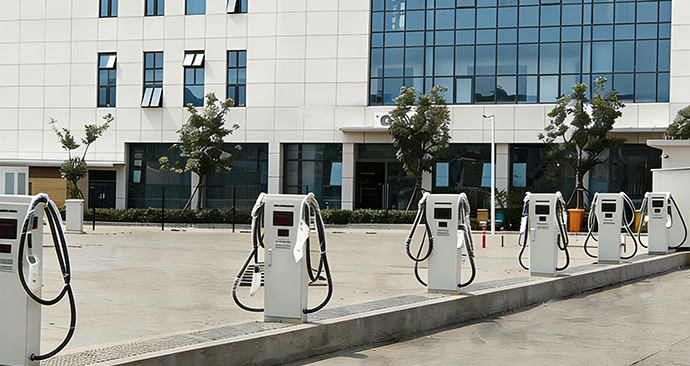

Wuhan Yidiantong Charging Station
Longgang Urban Investment Case
