StockCode
300713
240VDC DC DPS

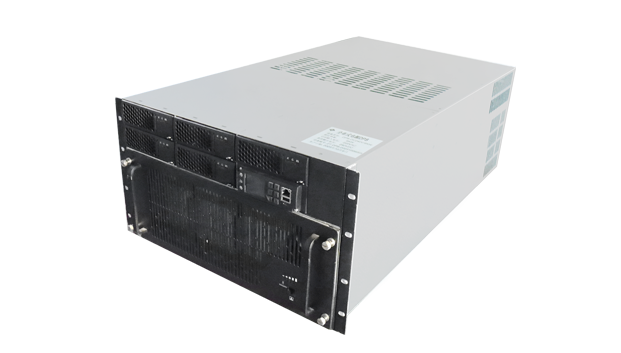

INC-TP240-60/3500 (Monitor: SA50)
The INC-TP240-60/3500 Distributed Power System (DPS) is a compact power solution developed by integrating our years of expertise with an entirely new product platform. This 240V distributed HVDC power supply equipment for telecommunications is designed for next-generation green data center energy virtualization solutions. It is a fully digital communication power system featuring high reliability, high power density, high efficiency, and an ultra-compact form factor, specifically engineered to meet the energy demands of distributed power supply in IDC rooms and embedded cabinet power supply for communication systems.
Product Features
High Efficiency & Energy SavingHigh module efficiency, adopting resonant soft-switching technology for energy conservation and emission reduction, which reduces electricity costs.
The rectifier module features a sleep function to improve operating efficiency.
Intelligent fan speed control reduces wear and extends fan service life.
The rectifier module has high power density, saving space and reducing costs.
01
Safety & ReliabilityWide input voltage range: 85~300VAC, with strong grid adaptability.
Ultra-wide operating temperature range: -40~+75°C (derated above 45°C).
Comprehensive lightning protection design to enhance system lightning resistance.
Low input harmonic content, reducing grid pollution and improving grid adaptability.
02
Intelligent & User-FriendlyDSP digital control: High stability, high reliability, and easy expansion.
Diverse communication interfaces: RS232/RS485, USB, network port, etc.
Complete battery management function: Effectively extends battery service life.
128x160 color LCD display with 6-key operation, providing a user-friendly HMI.
03
Rapid DeploymentStandard 19-inch rack-mounted design for embedded installation.
Low noise design, suitable for various scenarios.
The module supports hot-swapping, enabling convenient use, reducing maintenance costs, and facilitating expansion.
Front and rear maintenance design for flexible installation, suitable for indoor equipment rooms and outdoor cabinets.
04
Product Parameters
INC-TP240-60/3500
General
Input Characteristics
Output Characteristics
Battery Management
General
| Item | Specifications | |
|---|---|---|
| General | Model | TP240-60/3500 |
| Power Capacity | 17.5kW@240VDC | |
| Battery Capacity | 27 Ah | |
| Dimensions | 482.6mm (W) × 800mm (D) × 800mm (H) | |
| Weight | 103KG |
Input Characteristics
| Item | Specifications | |
|---|---|---|
| Input Characteristics | Rated Input Voltage | 220VAC |
| Input Voltage Range | 85Vac–300Vac (Derating applies for 85Vac–176Vac) | |
| Frequency Range | 45Hz~65Hz | |
| Power Factor (PF) | ≥0.99 | |
| THDi | ≤5% |
Output Characteristics
| Item | Specifications | |
|---|---|---|
| Output Characteristics | Output Voltage Range | 200VDC~300VDC |
| Output Current | 60A | |
| Voltage Regulation Accuracy | ≤±0.5% | |
| Peak-to-Peak Noise Voltage | ≤±0.5% | |
| System Efficiency | Full load ≥ 93%; Half load 93.5% | |
| Current Sharing Imbalance | ≤±5% |
Battery Management
| Item | Specifications | |
|---|---|---|
| Battery Management | Model | 240V/27Ah |
| Charge Coefficient | 255.6V | |
| Charge Coefficient | 0.2~1C | |
| Floating Charge Voltage | 244.8V |
Expand all parameters
Application Scenarios
Data Center
Distributed Internet Data Center (IDC)
Embedded Equipment Cabinet
Data Center
