StockCode
300713
10kW Output: 45-130Vdc/100A
ICR130-10000C

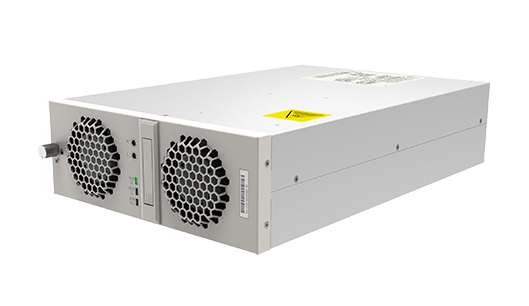

The ICR130-10000C series high-frequency switching rectifier module is an AC/DC power unit featuring AC voltage input and adjustable DC voltage output. Utilizing DSP digital control, resonant soft-switching, and Active PFC (Power Factor Correction) technologies, the module is protected by multiple patents. It is characterized by high power density, a high power factor, low harmonic distortion, and high efficiency, with support for multi-module parallel operation.
Product Features
High Efficiency & Energy SavingHigh efficiency: Reduces energy loss, meets energy conservation and emission reduction requirements, and cuts electricity costs for customers.
High power density: Saves customer space and reduces system costs.
01
Excellent PerformanceWide input and output voltage ranges: Suitable for most different input and output voltage scenarios.
02
Safety & ReliabilityBuilt-in reverse protection with failure self-isolation: Greatly improves system reliability.
Comprehensive fault self-detection and alerts: Rich fault detection functions for convenient customer maintenance.
03
Wide AdaptabilityEnvironmental adaptation: Wide operating temperature range of -40°C ~ 75°C, suitable for harsh working environments.
Low input harmonics: Reduces grid pollution and offers stronger grid adaptability.
04
Product Parameters
ICR130-10000C
General
DC Output
AC Input
Operating Environment
Other Parameters
General
|
Item |
Specification |
|
|
General |
Model |
ICR130-10000C |
|
Dimensions |
248mm (W) × 85mm (H) × 370mm (D) |
|
|
Weight |
Approx. 7kg |
|
| Rated Output Power | 10kW | |
|
Output Current Range |
0A~100A (T≤60°C) |
|
| DC Output Voltage | 45~130V |
DC Output
|
Item |
Specification |
|
|
DC Output |
Peak-to-Peak Noise |
≤±1% |
|
Voltage Regulation Accuracy |
≤±0.5% | |
|
Current Regulation Accuracy |
≤±1% | |
|
Current Sharing |
≤±5% | |
|
Efficiency |
≥95% |
AC Input
|
Item |
Specification |
|
|
AC Input |
Rated Input Voltage |
3-Phase 380Vac/480Vac |
|
Input Voltage Range |
323Vac～530Vac (Full load); |
|
|
Input Current |
＜20A | |
|
Frequency |
45Hz～65Hz | |
|
Power Factor (PF) |
≥0.99 | |
|
Total Harmonic Distortion (THD) |
≤5% | |
|
Input Protection |
Fuses; Surge Protection Circuit (SPD) |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Coolant Temperature |
-40℃～60℃(Normal); 60℃~80℃(Derating) |
|
Storage Temperature |
-40℃～75℃ |
|
|
Relative Humidity |
0～95% |
|
|
Altitude |
Full load output below 2000m |
Other Parameters
|
Item |
Specification |
|
|
Reliability & Compliance |
Dielectric Strength |
Input to Output, Input to Communication: 4242VDC, 1min; Input to Chassis: 3535VDC, 1min; Output to Chassis, Output to Communication: 2121VDC, 1min; Communication to Chassis: 707VDC, 1min |
| MTBF |
＞120,000 Hours |
|
|
Communication |
Communication Interface |
CAN |
| Alarms and status are reported to the monitoring system via CAN bus, complemented by three front-panel LED indicators. | ||
