StockCode
300713
20kW Output: 30-105Vdc/200A
ICR100-20000C

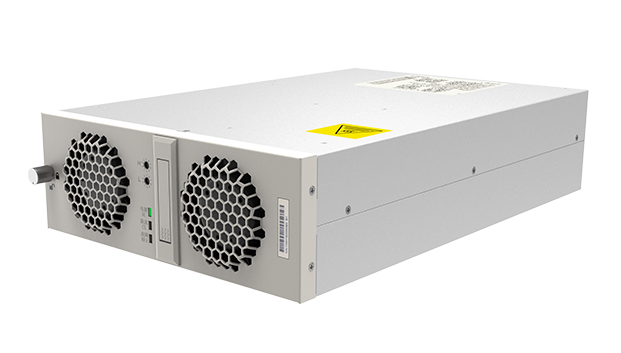

The ICR100-20000C series high-frequency switching rectifier module is an AC/DC power unit featuring AC voltage input and adjustable DC voltage output. Utilizing DSP digital control, resonant soft-switching, and Active PFC (Power Factor Correction) technologies, the module is protected by multiple patents. It is characterized by high power density, a high power factor, low harmonic distortion, and high efficiency. Supporting multi-module parallel operation, it is perfectly suited for charging systems in new energy forklifts, AGVs (Automated Guided Vehicles), and special-purpose vehicles.
Product Features
High Efficiency & Energy SavingHigh efficiency: Reduces energy loss, meets energy conservation and emission reduction requirements, and cuts electricity costs for customers.
High power density: Saves customer space and reduces system costs.
01
Excellent PerformanceWide input and output voltage ranges: Suitable for most different input and output voltage scenarios.
02
Safety & ReliabilityBuilt-in reverse protection with failure self-isolation: Greatly improves system reliability.
Comprehensive fault self-detection and alerts: Rich fault detection functions for convenient customer maintenance.
03
Wide AdaptabilityEnvironmental adaptation: Wide operating temperature range of -40°C ~ 75°C, suitable for harsh working environments.
Low input harmonics: Reduces grid pollution and offers stronger grid adaptability.
04
Product Parameters
ICR100-20000C
General
DC Output
AC Input
Operating Environment
Other Parameters
General
|
Item |
Specification |
|
|
General |
Model |
ICR100-20000C |
|
Dimensions |
240mm (W) × 85mm (H) × 370mm (D) |
|
|
Weight |
Approx. 9kg |
|
|
Rated Output Power |
20kW |
|
|
Rated Output Current |
200A |
|
|
DC Output Voltage Range |
30V - 105V |
|
|
Current Limiting Range |
10% - 110% (Stepless) |
DC Output
|
Item |
Specification |
|
|
DC Output |
Peak-to-Peak Noise |
≤±5% |
|
Voltage Regulation Accuracy |
≤±5% |
|
|
Current Regulation Accuracy |
≤±1% |
|
|
Current Sharing |
≤±5% |
|
|
Efficiency |
≥94.5% |
AC Input
|
Item |
Specification |
|
|
AC Input |
Rated Input Voltage |
3-Phase 380Vac / 480Vac |
|
Input Voltage Range |
320Vac - 530Vac (Full load); |
|
|
Input Current |
＜40A(20kW) |
|
|
Frequency |
45Hz～65Hz |
|
|
Power Factor (PF) |
≥0.99 |
|
|
Total Harmonic Distortion (THD) |
≤5% |
|
|
Input Protection |
Fuses; Surge Protection Circuit (SPD) |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Coolant Temperature |
-40℃～55℃(Normal); 55℃~75℃(Derating) |
|
Storage Temperature |
-40℃～75℃ |
|
|
Relative Humidity |
0～95% |
|
|
Altitude |
Full load output below 2000m |
Other Parameters
|
Item |
Specification |
|
|
Reliability & Compliance |
Dielectric Strength |
Input to Chassis: Withstands 2500VAC (50Hz RMS) or equivalent 3535VDC for 1 minute. Input to Output: Withstands 3000VAC (50Hz RMS) or equivalent 4242VDC for 1 minute. |
|
MTBF |
＞120,000 Hours |
|
|
Communication |
Communication Interface |
CAN |
|
Max. Units in Parallel |
60 units |
|
|
Alarms and status are reported to the monitoring system via the CAN communication port, complemented by three LED indicators on the front panel for real-time visual feedback. |
||
Expand all parameters
