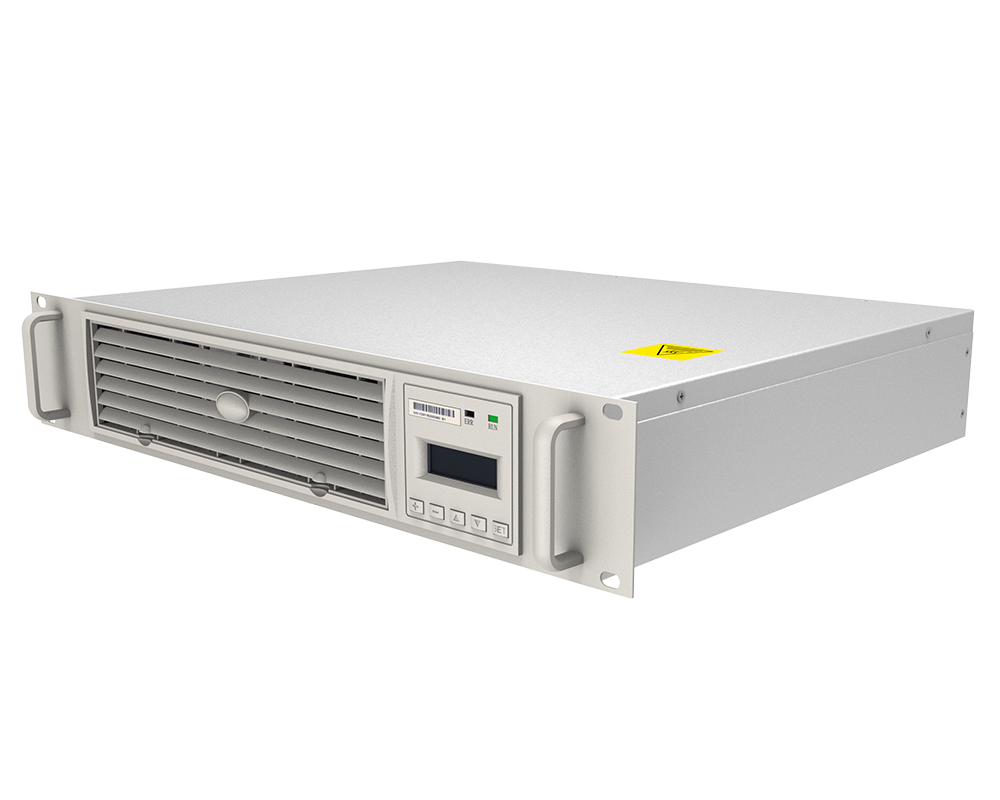

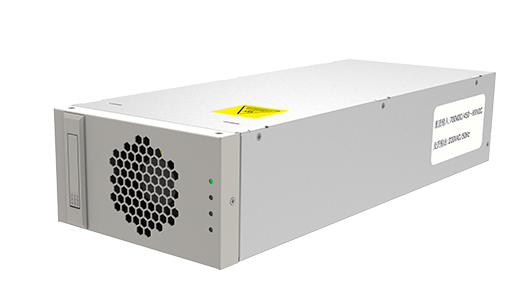

5KVA High-Frequency Inverter
IV5000HD-2
Adhering to a modular design philosophy, the IV series high-frequency inverters for electric power systems utilize DSP digital control and high-frequency soft-switching technology to achieve high efficiency and reliability. The DC input and AC output of the inverter are completely electrically isolated, meeting the stringent requirements of the power industry. Furthermore, it features a built-in CPU and an independent LCD display.
Product Features
Wide Operating Voltage RangeWide operating voltage range, with 220V DC input ranging from 198~286VDC and 110V DC input ranging from 95~150VDC, delivering strong adaptability.
01
Input and Output Electrical IsolationComplete electrical isolation between DC input and AC output, eliminating the need for an external isolation transformer and meeting the requirements for power inverters in integrated power supply designs.
02
Soft-Switching TechnologyDC/DC conversion adopts advanced LLC resonant soft-switching technology, with efficiency greater than 90%.
03
Fully Digital ControlAdopts TI's DSP controller TMS320F2808, responsible for overall module control, switching, parallel operation algorithms, and fault handling, ensuring excellent consistency and anti-interference capability.
04
Product Parameters
IV5000HD-2
General
DC Input
AC Output
Other Parameters
General
|
Item |
Specification |
|
|
General |
Model |
IV5000HD-2 |
|
Dimensions |
490mm×88mm×390mm（W×H×D） |
|
|
Rated Output Power |
5KVA |
DC Input
| Item | Specification | |
|---|---|---|
| DC Input | Rated Voltage | 220VDC |
| Voltage Range | 198～286V | |
| AC Input | AC Input Voltage） | 220VAC±15% |
| AC Input Frequency | 45~65Hz | |
| Transfer Time | Bypass to Inverter | ≤4mS |
| Inverter to Bypass | 0mS |
AC Output
|
Item |
Specification |
|
|
AC Output |
Rated Voltage |
220VAC |
|
Rated Frequency |
50Hz |
|
|
Operation Mode |
DC-Priority: Inverter starts automatically when DC input is normal |
|
|
Power Factor (PF) |
0.8 (Lagging) |
|
|
Load Regulation |
＜2.0% | |
|
Frequency Precisio |
＜0.1% | |
|
Crest Factor |
3：1 | |
|
THD |
Linear Load < 3%; Non-linear Load < 5% |
|
|
Efficiency |
＞90% |
|
|
Inverter Overload Capacity |
Load Current %：＜100%, Normal Operation Load Current %：100～110%，Duration 10min Load Current %：110～125%，Duration 1min Load Current %：＞125%，60mS Emergency Shutdown |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Protection |
Input Under/Over-voltage, Over-temperature, and Output Overload protection; Auto-recovery supported. Short Circuit Protection: • Short circuit < 3s: Auto-recovery. • Short circuit > 3s: Non-recoverable (Latched-off). |
|
Communication |
RS485 Interface |
MODBUS |
|
Dry Contacts |
Normally Open (NO) or Normally Closed (NC) contacts |
Expand all parameters
Application Scenarios
Power Grid
Chemical Plant
Metallurgical Plant
Chemical Plant
