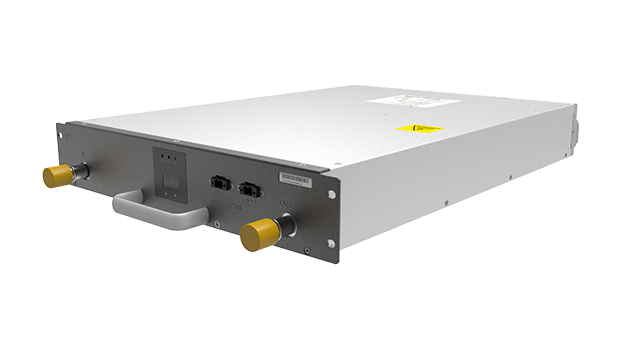

30kW Liquid-Cooled Output : 150-1000Vdc

EVR1000-30000A(E)

The EVR1000-30000A(E), launched by INCREE, is a cutting-edge charging module utilizing liquid-cooling technology. It is characterized by high power density, exceptional reliability, high efficiency, zero noise, and anti-condensation capabilities. By integrating SiC (Silicon Carbide) power devices, the module achieves a peak conversion efficiency of over 96.5%. The product has successfully passed CE and UL certifications, fully satisfying the requirements of European and American markets. It is ideally suited for charging applications with stringent environmental, acoustic, and reliability standards, providing users with a superior charging experience.

Product Features

High Efficiency & Energy Saving

High power density: The internal space layout is greatly optimized, significantly saving the internal space of the charging pile.

Ultra-high efficiency: Adopts advanced SiC technology, with full-load efficiency ≥ 96% and peak efficiency ≥ 96.5%, significantly reducing operating energy consumption.

Zero Noise

Zero-noise operation: Fully liquid-cooled, fanless design ensures completely silent operation.

Environmentally friendly: Eliminates noise pollution entirely, making it particularly suitable for noise-sensitive high-demand scenarios such as residential areas and indoor parking lots.

Safety & Reliability

High reliability: The modules feature IP50 protection class and adopt high-efficiency fully liquid-cooled heat dissipation technology, delivering excellent heat dissipation performance, strong system stability, and high reliability.

Multiple safety guarantees: Water and electricity separation design, multiple electrical isolation, as well as explosion-proof, smoke-proof, and flame-retardant designs provide all-round safety protection.

Wide Adaptability

Environmental adaptation: Hermetically sealed design provides dust and salt spray resistance, easily coping with various harsh environments.

Targeted anti-condensation design: Better adapts to high-humidity and condensation-prone scenarios.

Comprehensive certifications: CE and UL certifications meet the requirements of European and American markets.

Product Parameters

EVR1000-30000A(E)

General

AC Input

DC Output

Operating Environment

Other Parameters

General

	Item	Specification
General	Model	EVR1000-30000A(E)
	Dimensions	370mm (W) × 73mm (H) × 542.5mm (D)
	Weight	Approx. 27kg
	Output Rating	1000V@30A
	Output Voltage Range	150V - 1000V (Constant power: 250V - 1000V, 30kW)
	Output Current Range	0A - 120A (Coolant Temp ≤60℃)

AC Input

	Item	Specification
AC Input	Rated Input Voltage	3-Phase 380Vac / 480Vac
	Input Voltage Range	320Vac - 530Vac (Full load); 320Vac - 260Vac (Linear derating to half load)
	Input Current	＜63A
	Frequency	45Hz～65Hz
	Power Factor (PF)	≥0.99
	Total Harmonic Distortion (THD)	≤5%
	Input Protection	Fuses; Surge Protection Circuit (SPD)

DC Output

	Item	Specification
DC Output	Peak-to-Peak Noise	≤1%
	Voltage Regulation Accuracy	≤±0.5%
	Current Regulation Accuracy	≤±1%
	Current Sharing	≤±5%
	Efficiency	≥96%(Full Load); ≥96.5% (Peak)

Operating Environment

	Item	Specification
Operating Environment	Coolant Temperature	-40℃～60℃(Normal); 60℃~75℃(Derating)
	Storage Temperature	-40℃～75℃
	Relative Humidity	0～95%
	Altitude	Full load output below 2000m

Other Parameters

	Item	Specification
Reliability & Compliance	Dielectric Strength	Input-Chassis / Output-Chassis / Input-Output: DC 3535V, 1min Input/Output-Comm: DC 4242V, 1min; Comm-Chassis: DC 1400V, 1min
Reliability & Compliance	MTBF	＞120,000 Hours
Communication	Communication Interface	CAN
Communication	Max. Units in Parallel	60 units
Protection & Isolation: Output anti-backflow diode failure isolation; integrated output discharge function.
Monitoring: Faults and status reported via CAN bus; includes 3-LED front panel indicators.
