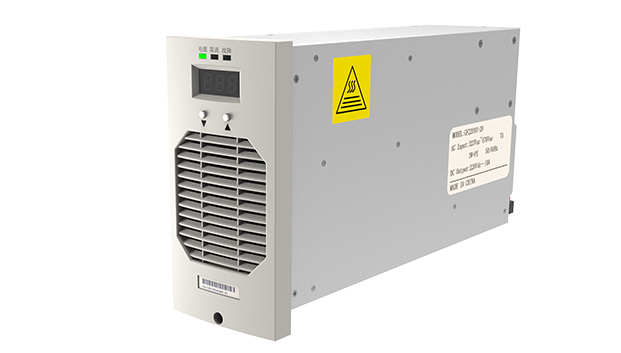

High-Frequency Switching Rectifier Module
GF22010-20/GF11020-20
The GF22010-20 and GF11020-20 high-frequency switching rectifier modules utilize DSP digital control and resonant soft-switching technology. These modules are characterized by high power density, a wide input voltage range, a broad operating temperature range, and high efficiency. They feature comprehensive built-in protection functions, including input over/under-voltage alarms and protection, output overvoltage protection, output short-circuit protection, over-temperature alarms, and phase-loss power-limited output.
Product Features
High Efficiency & Energy SavingHigh efficiency: Reduces energy consumption, meets energy conservation and emission reduction requirements, and helps customers save on electricity costs.
High power density: Saves customer space and reduces system costs.
01
Safety & ReliabilityDSP digital control: Fewer components, higher environmental stability, higher reliability, and more convenient capacity expansion.
Built-in various protections and comprehensive fault self-detection prompts: Greatly improves system reliability, with rich fault detection for convenient customer maintenance.
02
Excellent PerformanceWide input voltage range and wide output voltage range: Suitable for most different input and output voltage scenarios.
03
Wide AdaptabilityWide operating temperature range and high coolant temperature resistance: Operating temperature range of -10°C ~ 45°C, capable of covering harsh working environments.
04
Product Parameters
GF22010-20 High-Frequency Switching Rectifier Module
GF11020-20 High-Frequency Switching Rectifier Module
General
Output Specifications
Input Characteristics
Operating Environment
Other Parameters
General
Output Specifications
Input Characteristics
Operating Environment
Other Parameters
General
|
Item |
Specification |
|
|
General |
Model |
GF22010-20 |
|
Dimensions |
88mm×177mm×310mm（W×H×D） |
|
|
Weight |
≤4kg |
Output Specifications
|
Item |
Specification |
|
| Output Specifications | Rated Output Voltage | 234Vdc |
| Rated Output Current | 10A | |
| Output Voltage Range | 198~286Vdc | |
| Current Limit Adjustable Range | 10%～110 % (via communication) | |
| Rated Full-load Efficiency | ≥93.5% | |
| Peak Efficiency | ≥95.5% | |
| Voltage Regulation Accuracy | ≤±0.5% | |
| Current Regulation Accuracy | ≤±1% | |
| Ripple | ≤0.5% | |
| Dynamic Response Overshoot | ＜5%（25%~50%~25%或 50%~75%~50% load change） | |
| Output Rise Time | ＜4s (10% to 90% of output voltage) | |
| Start-up Output Delay | ＜10s |
Input Characteristics
|
Item |
Specification |
|
|
Input Characteristics |
Rated Input Voltage | 380Vac |
| Input Voltage Range |
Input Voltage Range: Protection: 323Vac～480Vac (Full load); Phase Loss: 50% current limit output; Under-voltage Protection: Protection: 290±10 Vac; Recovery: 312±10 Vac; |
|
| Input Current | ＜7A | |
| Frequency | 45Hz～65Hz | |
| Power Factor PF | ≥0.92（at rated full load) | |
| Input Protection | Fuse |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Coolant Temperature |
-10℃～45℃(Normal) |
|
Storage Temperature |
-40℃～70℃ |
|
|
Relative Humidity |
0～90%RH |
|
|
Altitude |
Full load output below 2000m |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Short Circuit Protection | Foldback current; auto-recovery after fault removal |
| Output Over-voltage Protection | 300±5VDC, Non-recoverable | |
| Over-temperature Protection |
Auto-shutdown when exceeding setpoint; auto-recovery after cooling. Derating: Linear derating starts above 45℃; shutdown above 65℃. |
|
| Cooling Method | Forced Air Cooling; Linear speed control based on temperature and current | |
| MTBF | MTBF≥90,000$ hours | |
| Cooling Method | Forced Air Cooling | |
| Isolation Strength (50Hz/1min) |
Input to Chassis: 2000VAC / 2828VDC Input to Output: 2000VAC / 2828VDC Output to Chassis: 2000VAC / 2828VDC |
|
|
Communication |
Communication Interfaces | RS485: For monitoring & control (ON/OFF, voltage/current adjustment, alarms); CAN Bus: For internal current sharing (Supports up to 16 units in parallel). |
| Note: The monitoring system (Host PC/Controller) can issue commands such as Power ON/OFF, Voltage Adjustment, and Current Regulation via RS485 communication. Meanwhile, Alarms and Real-time Status are reported back to the monitoring system through the same RS485 interface. | ||
Expand all parameters
General
|
Item |
Specification |
|
|
General |
Model |
GF11020-20 |
|
Dimensions |
88mm×177mm×310mm（W×H×D） |
|
|
Weight |
≤4kg |
Output Specifications
|
Item |
Specification |
|
| Output Specifications | Rated Output Voltage | 115Vdc |
| Rated Output Current | 20A | |
| Output Voltage Range | 98~143Vdc | |
| Current Limit Adjustable Range | 10%～110 % (via communication) | |
| Rated Full-load Efficiency | ≥92% | |
| Peak Efficiency | ≥94% | |
| Voltage Regulation Accuracy | ≤±0.5% | |
| Current Regulation Accuracy | ≤±1% | |
| Ripple | ≤0.5% | |
| Dynamic Response Overshoot | ＜5%（25%~50%~25%或 50%~75%~50% load change） | |
| Output Rise Time | ＜4s (10% to 90% of output voltage) | |
| Start-up Output Delay | ＜10s |
Input Characteristics
|
Item |
Specification |
|
|
Input Characteristics |
Rated Input Voltage | 380Vac |
| Input Voltage Range |
Input Voltage Range: Protection: 323Vac～480Vac (Full load); Phase Loss: 50% current limit output; Under-voltage Protection: Protection: 290±10 Vac; Recovery: 312±10 Vac; |
|
| Input Current | ＜7A | |
| Frequency | 45Hz～65Hz | |
| Power Factor PF | ≥0.92（at rated full load) | |
| Input Protection | Fuse |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Coolant Temperature |
-10℃～45℃(Normal) |
|
Storage Temperature |
-40℃～70℃ |
|
|
Relative Humidity |
0～90%RH |
|
|
Altitude |
Full load output below 2000m |
Other Parameters
|
Item |
Specification |
|
|
Safety Protection |
Short Circuit Protection | Foldback current; auto-recovery after fault removal |
| Output Over-voltage Protection | 160±5VDC, Non-recoverable | |
| Over-temperature Protection |
Auto-shutdown when exceeding setpoint; auto-recovery after cooling. Derating: Linear derating starts above 45℃; shutdown above 65℃. |
|
| Cooling Method | Forced Air Cooling; Linear speed control based on temperature and current | |
| MTBF | MTBF≥90,000$ hours | |
| Cooling Method | Forced Air Cooling | |
| Isolation Strength (50Hz/1min) |
Input to Chassis: 2000VAC / 2828VDC Input to Output: 2000VAC / 2828VDC Output to Chassis: 2000VAC / 2828VDC |
|
|
Communication |
Communication Interfaces | RS485: For monitoring & control (ON/OFF, voltage/current adjustment, alarms); CAN Bus: For internal current sharing (Supports up to 16 units in parallel). |
| Note: The monitoring system (Host PC/Controller) can issue commands such as Power ON/OFF, Voltage Adjustment, and Current Regulation via RS485 communication. Meanwhile, Alarms and Real-time Status are reported back to the monitoring system through the same RS485 interface. | ||
Expand all parameters
Application Scenarios

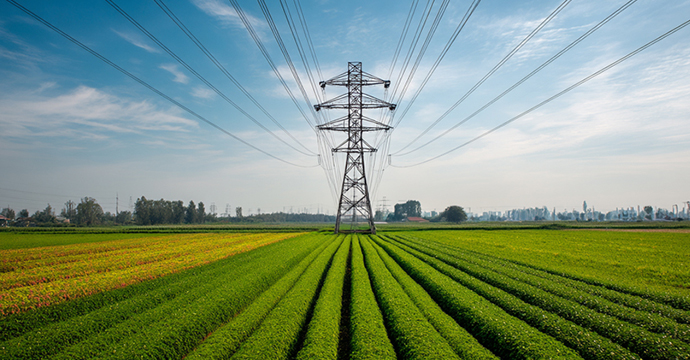

Power Grid
Rail Transit
Airport People Mover System (APM)
