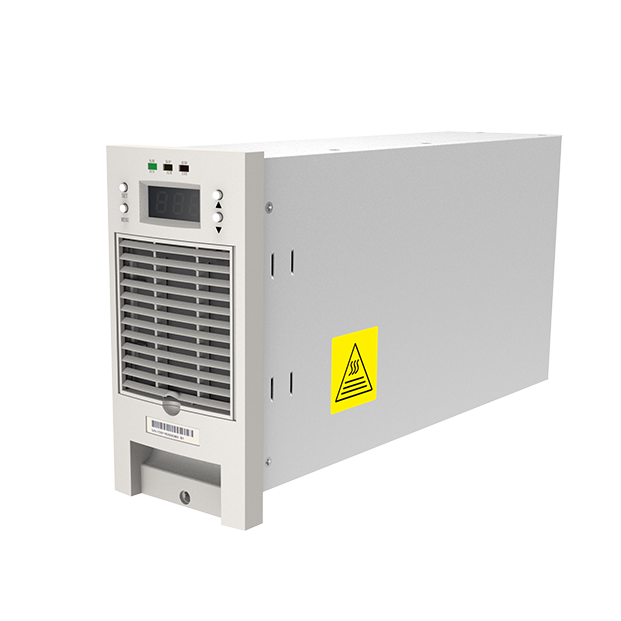

High-Frequency Switching Rectifier Module
TG4830
The TG4830 high-frequency switching rectifier module utilizes advanced LLC resonant soft-switching technology for high efficiency and incorporates APFC (Active Power Factor Correction) technology to ensure a high power factor. The cooling fan operates under a combined temperature and current control mode, resulting in low noise and an extended fan service life.
Product Features
High Efficiency & Energy SavingAdopts APFC technology for a high power factor.
Utilizes advanced LLC resonant high-frequency soft-switching technology, delivering high efficiency and high power density.
01
Safety & ReliabilityBuilt-in short-circuit foldback protection, ensuring no damage even when the output is in a long-term short-circuit state.
The fan adopts temperature and current combined control for speed regulation, resulting in low noise and high reliability.
Comprehensive protection and alarm functions, including input over/under voltage, output overvoltage, over-temperature, and overcurrent protection.
Built-in anti-reverse connection protection, supporting live hot-plugging.
02
Excellent PerformanceWide input voltage operating range, supporting AC and DC inputs of 220VAC / 110VAC and 220VDC / 110VDC, with no power derating across the full input range.
Comprehensive EMC design, meeting relevant standard requirements.
03
Intelligent & User-FriendlyAdopts LED display with 4-key operation, providing a user-friendly human-machine interface.
04
Product Parameters
TG4830
General
Output Characteristics
Input Characteristics
Other Parameters
General
|
Item |
Specification |
|
|
General |
Model |
TG4830 |
|
Dimensions |
88mm×177mm×310mm（W×H×D） |
|
|
Weight |
≤4kg |
Output Characteristics
|
Item |
Specification |
|
|
Output Characteristics |
Rated Output |
30A/48V |
|
Voltage Adjustable Range |
19VDC～60VDC | |
|
Output Current Limit Range |
10%～105% Rated Current |
|
|
Voltage Regulation Accuracy |
≤0.5% |
|
|
Current Regulation Accuracy |
≤0.5% |
Input Characteristics
|
Item |
Specification |
|
| Input Characteristics |
AC Input Voltage |
100VAC~286VAC（45Hz～65Hz） |
|
DC Input Voltage |
100VDC ~264VDC | |
| Input Voltage | 380VAC（-15%～+20%） | |
| Peak-to-Peak Noise | ≤200mV | |
| Power Factor (PF) | ≥0.99 | |
| THD | ≤5% | |
| Conversion Efficiency | ≥90% | |
| Current Sharing Imbalance | ≤±5% |
Other Parameters
|
Item |
Specification |
|
| Safety Protection | Output OVP | 62±2VDC; Non-recoverable |
| Input UVP | 81±10VAC（Recovery: 100±10VAC） 73±10VDC（Recovery: 88±10VDC） | |
| Input OVP | 292±10VAC（Recovery: 282±10VAC） 270±8VDC（Recovery: 260±8VDC） | |
| Hardware Prot. | Built-in Fuse & Surge Protection Circuit | |
| OTP | 80℃±5（Recovery: 60℃±5） | |
| Cooling Method | Jointly controlled by temperature and current; Linear speed adjustment. | |
| Safety, Protection | Comm. | RS485 |
