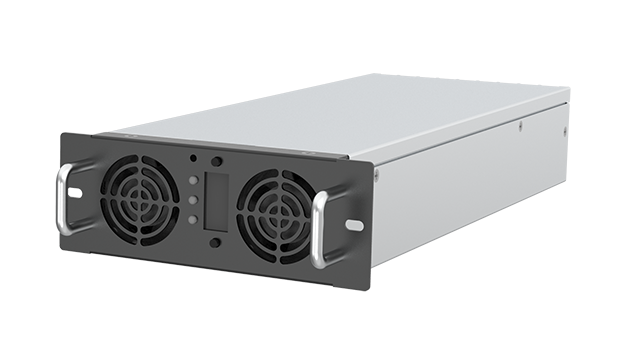

Bi-directional Power Module
TC4850C
In power grid substations, assessing the status of DC battery banks primarily relies on high-cost, periodic manual discharge testing. The TC4850C, integrated with its supporting remote capacity verification system, enables scheduled or real-time remote-controlled capacity testing. Furthermore, the discharge load is self-consumed by the system, making the process both energy-efficient and environmentally friendly.
Product Features
High Efficiency & Energy SavingAdopts advanced soft-switching technology, delivering high power density.
01
Safety & ReliabilityThe module features DC anti-reverse connection protection at both input and output, preventing reverse connection of positive and negative terminals and supporting live hot-plugging.
02
Excellent PerformanceThe module supports bidirectional conversion, enabling constant-current charge and discharge functions at the battery terminal.
Isolated design is adopted for input and output, providing excellent electrical isolation performance.
03
Convenient & User-FriendlyEasy installation and maintenance.
Supports RS485 and CAN communication protocols, offering customers high flexibility in selection.
04
Product Parameters
TC4850C
General
Battery Discharge
Battery Charging
Operating Environment
Other Parameters
General
|
Item |
Specification |
|
|
General |
Model |
TC4850C |
|
Dimensions |
300*110*50mm（W×H×D） |
|
|
Weight |
≦2.5kg |
Battery Discharge
|
Item |
Specification |
|
| Battery Discharge | Battery Input Range | 40~60Vdc |
| Rated Battery Input | 48V/50A | |
| Battery Input OVP | 60～63VDC | |
| Battery Input UVP | 35～39VDC | |
| Adj. Current Limit | 5-100% Stepless | |
| Rated DC Bus Voltag | 53.5VDC | |
| DC Bus Voltage Range | 40Vdc~60Vdc | |
| Discharge Efficiency | ≥92% | |
| Peak-to-Peak Noise | ≦200mv | |
| Voltage Regulation Accuracy | ≤±0.5% | |
| Current Regulation Accuracy | ≤±1.0% (at rated condition) | |
| Load Effect | ±5% (of set value) | |
| Turn-on/off Overshoot | ≤5% |
Battery Charging
|
Item |
Specification |
|
| Battery Charging | DC Bus Input Range | 40Vdc~60Vdc |
| C Bus Input OVP | 60～63VDC | |
| DC Bus Input UVP | 35～39VDC | |
| Rated Battery Output | 48Vdc/50A | |
| Battery Voltage Range | 40Vdc~60Vdc | |
| Charging Efficiency | ≥91.5% | |
| Peak-to-Peak Noise | ≦200mv | |
| Voltage Regulation Accuracy | ≤±0.5% | |
| Current Regulation Accuracy | ≤±1.0% (at rated condition) | |
| Load Effect | ±5% (of set value) | |
| Turn-on/off Overshoot | ≤5% |
Operating Environment
|
Item |
Specification |
|
|
Operating Environment |
Coolant Temperature |
-10~45℃ |
|
Storage Temperature |
-30~70℃ | |
|
Over-temperature Protection |
95±5℃（Recovery: 75±5℃） |
|
|
Relative Humidity |
0～95% |
|
|
Altitude |
≤2000m |
|
|
Cooling Method |
Air Cooling |
Other Parameters
|
Item |
Specification |
|
|
Reliability & Compliance |
Insulation Resistance |
DC Bus to Battery: 1000VDC; DC Bus to Chassis: 1000VDC; Battery to Chassis: 1000VDC; ≥ 10MΩ (@ 90% RH, 20°C - 40°C, Non-condensing) |
| Dielectric Strength |
DC Bus to Battery: 1000Vac/10mA/1min DC Bus to Chassis: 1000Vac/10mA/1min |
|
| MTBF | ≤50,000 hours | |
|
Communication |
Comm. Interface | CAN Bus, RS485; Current sharing via CAN bus |
| Max. Units | 6 Units |
