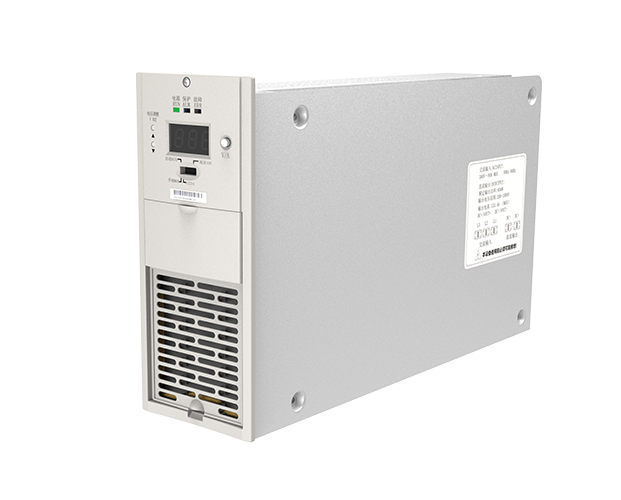

High-Frequency Switching Rectifier Module

GF22020-9

The GF22020-9 high-frequency rectifier module utilizes full-bridge LLC resonant soft-switching technology for high efficiency and incorporates passive PFC technology to ensure a high power factor. It employs a hybrid cooling system that combines natural convection with forced air cooling; the module operates via natural cooling under light loads, aligning perfectly with the actual operational requirements of power systems. Furthermore, the cooling fan features a combined temperature and current control mode, resulting in low noise and an extended fan service life.

Product Features

High Efficiency & Flexibility

Adopts advanced LLC resonant high-frequency soft-switching technology, with efficiency greater than 94%.

Safety & Reliability

Air-cooled design: The fan adopts temperature and current combined control for speed regulation, resulting in low noise and high reliability.

Built-in short-circuit foldback protection, ensuring no damage even when the module output is in a long-term short-circuit state

Comprehensive protection and alarm functions, including input over/under voltage, output overvoltage, over-temperature, and overcurrent protection.

Excellent Performance

Wide input voltage operating range: 323VAC ~ 480VAC.

Built-in anti-reverse connection protection, supporting live hot-plugging.

Intelligent & User-Friendly

Adopts LED display with key operation, providing a user-friendly human-machine interface.

Product Parameters

GF22020-9 High-Frequency Switching Rectifier Module

General

Output Characteristics

Input Characteristics

Operating Environment

Other Parameters

General

	Item	Specification
General	Model	GF22020-9
	Dimensions	110mm×257mm×415mm（W×H×D）
	Weight	≤8Kg

Output Characteristics

	Item	Specification
Output Characteristics	Rated Output	20A/234V
	Voltage Adjustable Range	198～286V
	Output Current Limit Range	10%～110% Rated Current
	Voltage Regulation Accuracy	≤±0.5%
	Current Regulation Accuracy	≤±1.0%
	Ripple Coefficient	≤0 .5%

Input Characteristics

	Item	Specification
Input Characteristics	Input Voltage	3-Phase 3-Wire (No Neutral), 380VAC (-15% ~ +25%)
	Power Factor (PF)	≥ 0.9
	THD	<30%
	Conversion Efficiency	>94%

Operating Environment

	Item	Specification
Operating Environment	Operating Temperature	-5℃~+45℃
	Storage Temperature)	-40℃~+70℃
	Operating Humidity	10%~90%RH
	Altitude	2000m
	Cooling Method	Semi-self-cooling; Jointly controlled by temperature and current with linear speed adjustment.

Other Parameters

	Item	Specification
Safety & Reliability	Dielectric Strength	Dielectric Withstand Voltage (50Hz/1min): Input to Chassis: 2500VAC Output to Chassis: 2000VAC
Safety Protection	Short Circuit Protection	Foldback current ≤40% of rated current; auto-recovery
	Output Over-voltage Protection	300±5VDC; Non-recoverable
	Input Under-voltage Protection	295±10VAC（Recovery: 305±10VAC）
	Input Over-voltage Protection	525VAC±10VAC（Recovery: 495VAC±10VAC）
